TYM T5074 vs TYM T5068 | Side-by-side comparison | ITC Resource Center
Compare Tractors

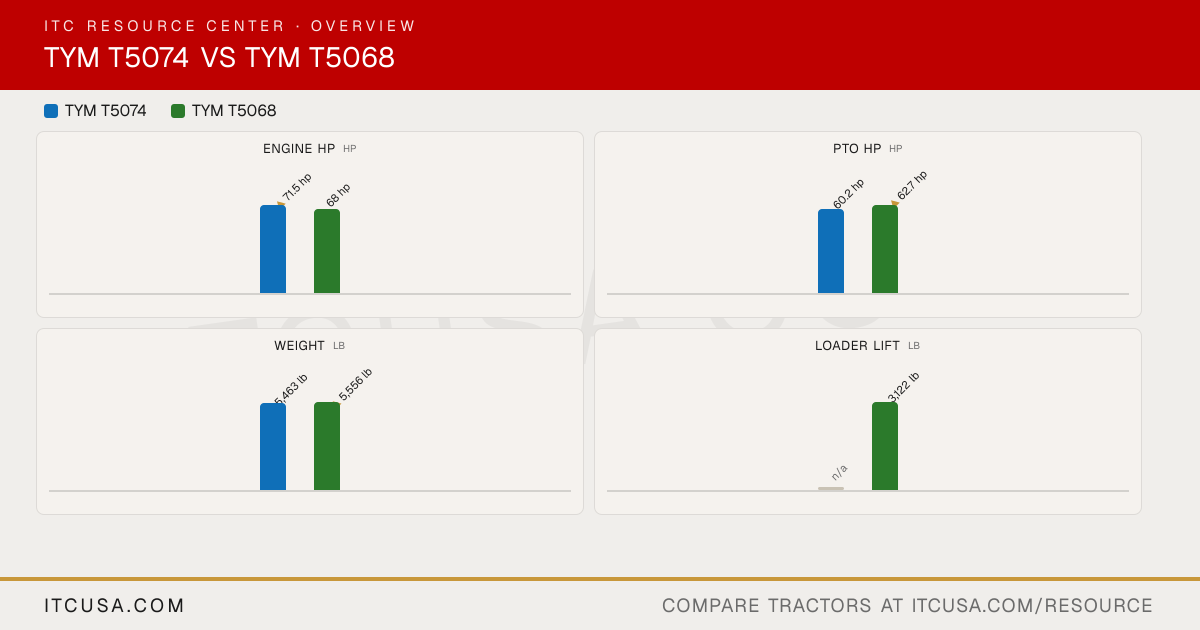

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT5074
TYMT5068
Engine Manufacturer
Yanmar
Deutz
Engine Model
4TN98CT-7PKTF
TCD 2.9
Engine Type
4-cylinder, water-cooled, turbocharged diesel
4-cylinder, turbocharged diesel
No. of Cylinders
4
4
Displacement
202.5 in³
177 in³
Rated Engine Speed
2400 rpm
2200 rpm
Engine Power (Gross)
71.5 hp
68 hp
PTO Power
60.2 hp
62.7 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Water-cooled
Liquid-cooled
Air Cleaner
PowerCore Type
Dual dry
Fuel System
CRDI
CRDI
Alternator
70 A, 12 V
95 A, 12 V
Pump Type
Dual gear pump
Dual gear pump
Implement Flow
10.3 gpm
10.3 gpm
Steering Flow
5.8 gpm
5.8 gpm
Total Hydraulic Flow
16.1 gpm
16.1 gpm
Overall Hydraulic Pump Flow
16.1 gpm
16.1 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
6 (Floating/Regen); 4 (Spring/Floating)
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
19 gal
18.5 gal
Coolant Capacity
3 gal
2.8 gal
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
13.7 gal
11.1 gal
Front Axle Fluid Capacity
2.4 gal
4.3 gal
PTO Type
Independent
Independent
PTO Rear
540/750 rpm
540/750 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity
4,329 lb
4,270 lb
Hitch Lift Capacity (at 24”)
3,159 lb
3,153 lb
Lift Control Type
Position/Draft
Position/Draft
Transmission Type
Power shuttle
Synchro or power shuttle
No. of Speeds
F12 x R12
Not Published
Max Travel Speed (Forward)
13.5 mph
23 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Wet Multi Plate
M: Dry Single Plate; PS: Wet Multi Plate
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Adjustable sliding seat with backrest angle and cushion firmness adjustment
Suspension seat
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
81.4 in
72.4 in
Wheelbase
84.6 in
84.7 in
Ground Clearance
17.6 in
17.1 in
Min. Turn Radius without Brakes
164.2 in; 169.3 in
162.2 in
Height to Top of ROPS
106.8 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
103 in
Overall Length
148.1 in (with 3-point hitch)
155.6 in (with 3-point hitch)
Tractor Weight (Base)
5,463 lb (with ROPS)
5,556 lb (with cab)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Not Published
R1 Agricultural - Front
11.2-24
9.5R20
R1 Agricultural - Rear
16.9-30
Not Published
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
15-19.5
Not Published
R4 Industrial - Rear
18.4-24
18.4-24
Quick Attach Loader System
Not Published
Not Published
Loader Model
L5074SL
L5068SL
Loader Lift Height
Not Published
L5068SL: 124.8 in
Loader Lift Capacity (Full Height)
Not Published
L5068SL: 3,122 lb (at pivot pin)
Loader Breakout Force
Not Published
L5068SL: 5,225 lb (at pivot pin, ground level)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
