TYM T654 vs TYM T5068 | Side-by-side comparison | ITC Resource Center
Compare Tractors

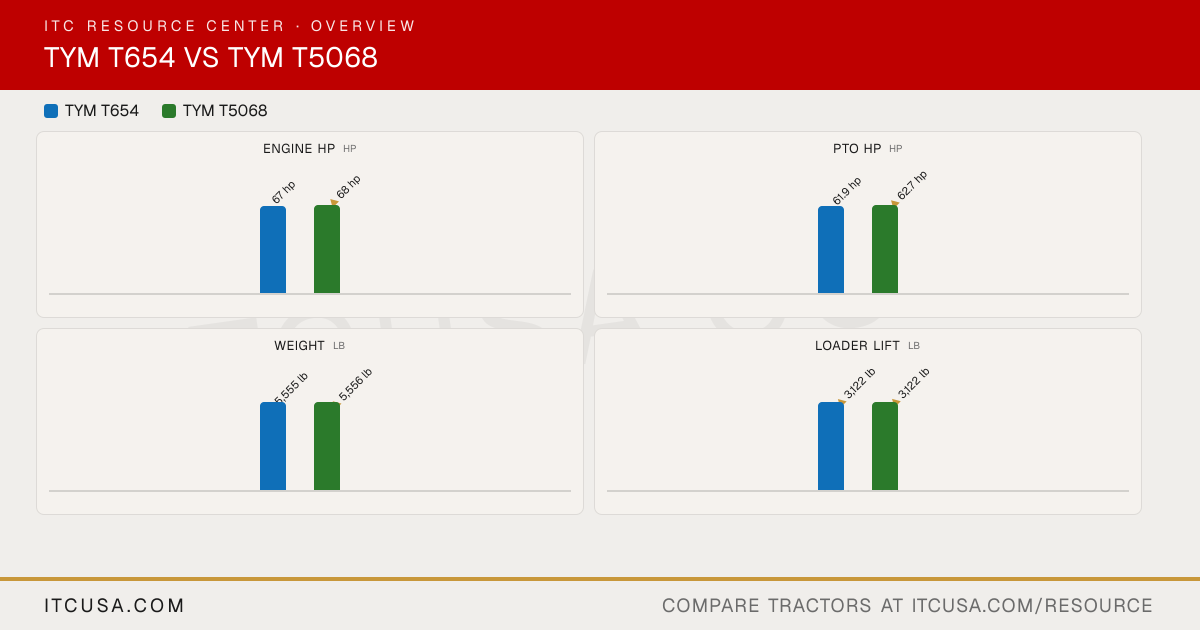

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT654
TYMT5068
Engine Manufacturer
Deutz
Deutz
Engine Model
TCD2.9L4
TCD 2.9
Engine Type
4-cylinder, turbocharged, liquid-cooled diesel
4-cylinder, turbocharged diesel
No. of Cylinders
4
4
Displacement
177 in³
177 in³
Rated Engine Speed
2200 rpm
2200 rpm
Engine Power (Gross)
67 hp
68 hp
PTO Power
61.9 hp
62.7 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dual dry
Dual dry
Fuel System
CRDI
CRDI
Alternator
95 A, 12 V
95 A, 12 V
Pump Type
Dual gear pump
Dual gear pump
Implement Flow
10.3 gpm
10.3 gpm
Steering Flow
5.8 gpm
5.8 gpm
Total Hydraulic Flow
16.1 gpm
16.1 gpm
Overall Hydraulic Pump Flow
16.1 gpm
16.1 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2
6 (Floating/Regen); 4 (Spring/Floating)
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
18.5 gal
18.5 gal
Coolant Capacity
10.6 qt
2.8 gal
Crankcase Capacity
8.5 qt
Not Published
Transmission / Hydraulic System Capacity
11 gal
11.1 gal
Front Axle Fluid Capacity
17.3 qt
4.3 gal
PTO Type
Independent
Independent
PTO Rear
540/750/1000 rpm
540/750 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity
4,270 lb
4,270 lb
Hitch Lift Capacity (at 24”)
3,153 lb
3,153 lb
Lift Control Type
Position/Draft/Mech
Position/Draft
Transmission Type
Synchro-shuttle
Synchro or power shuttle
No. of Speeds
F24 x R24
Not Published
Max Travel Speed (Forward)
20.2 mph
23 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
M: Dry Single Plate; PS: Wet Multi Plate
M: Dry Single Plate; PS: Wet Multi Plate
Differential Lock & Limited Slip Options
Differential lock
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Suspension seat
Suspension seat
Front Axle Type
MFWD (4WD)
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
72.4 in
72.4 in
Wheelbase
84.6 in
84.7 in
Ground Clearance
17.1 in
17.1 in
Min. Turn Radius without Brakes
162.2 in
162.2 in
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
100.2 in
103 in
Overall Length
155.6 in (with 3-point hitch)
155.6 in (with 3-point hitch)
Tractor Weight (Base)
5,555 lb (weight with cab)
5,556 lb (with cab)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
7,140 lb (5,555 + 1,585, computed)
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
Not Published
R1 Agricultural - Front
FSTR 9.5 R20 TL
9.5R20
R1 Agricultural - Rear
FSTR 380/85R28 TL (14.9R28)
Not Published
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Trac Chief 10.5/80-18 NHS TL 10PR
Not Published
R4 Industrial - Rear
Xtra Grip 18.4-24 NHS TL 8PR
18.4-24
Quick Attach Loader System
TX65SL: Quick attach mechanism
Not Published
Loader Model
TX65SL
L5068SL
Loader Lift Height
TX65SL: 124.8 in
L5068SL: 124.8 in
Loader Lift Capacity (Full Height)
TX65SL: 3,122 lb (at pivot pin)
L5068SL: 3,122 lb (at pivot pin)
Loader Breakout Force
TX65SL: 5,225 lb (at pivot pin, ground level)
L5068SL: 5,225 lb (at pivot pin, ground level)
Warranty Length & Coverage
Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
