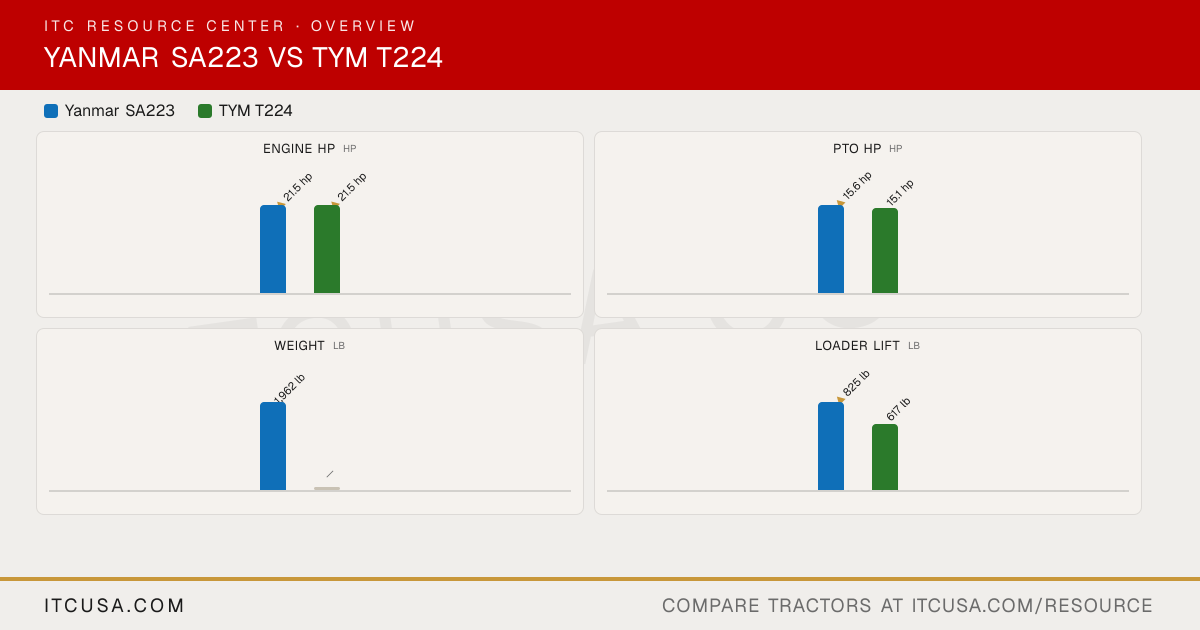

▶ EngineEngine Manufacturer YANMAR Yanmar Engine Model 3TNM74F 3TNV74F Engine Type 4-cycle inline, water-cooled diesel, naturally aspirated 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 60.6 in³ 60.6 in³ Rated Engine Speed 3200 rpm 3200 rpm Engine Power (Gross) 21.5 hp 21.5 hp PTO Power 15.6 hp 15.1 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid cooled Water-cooled Air Cleaner Not Published Single dry Fuel System Not Published IDI Alternator 40 A 40 A, 12 V ▶ HydraulicsPump Type Not Published Single gear pump Implement Flow 4.3 gpm 4.6 gpm Steering Flow 3.7 gpm 2.1 gpm Total Hydraulic Flow 8.0 gpm (4.3 + 3.7, computed) 6.7 gpm Overall Hydraulic Pump Flow 8.0 gpm (4.3 + 3.7, computed) 6.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 6.1 gal 6.6 gal Coolant Capacity 3.0 qt 3.7 qt Crankcase Capacity 3.1 qt 1.9 qt Transmission / Hydraulic System Capacity 4.1 gal 3.6 gal Front Axle Fluid Capacity 3.17 qt 2.6 qt ▶ PTO & HitchPTO Type Independent, hydraulic clutch Independent PTO Rear 554 rpm @ 3,200 engine rpm; 1.4 in OD, 6 splines 540 rpm Mid-PTO Availability Independent mid-PTO, 2,057 rpm at 3,200 engine rpm, SAE 16/32, 15 splines Available Category, 3-Point Hitch Limited Category I Category I (Narrow) Hitch Lift Capacity Not Published 1,100 lb Hitch Lift Capacity (at 24”) 660 lb 679 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission, dual range speeds HST No. of Speeds Infinite forward and reverse (hydrostatic); 2 ranges 2 Range Max Travel Speed (Forward) 9.5 mph (high range, with R4 tires) 8.4 mph Max Travel Speed (Reverse) 6.6 mph (high range, with R4 tires) Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Differential lock Differential lock ▶ Chassis, Steering & ControlsFrame Type Full-frame chassis Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet disc Wet disc Seat Suspension & Adjustability Fore-and-aft adjustable operator seat Not Published Front Axle Type Not Published 4WD center-pivot, reverse Eliot type Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 47.3 in (with R4 tires) 44.5 in Wheelbase 57.9 in 53.1 in Ground Clearance 6.4 in (with R4 tires) 8.3 in Min. Turn Radius without Brakes 7.87 ft 86.6 in Height to Top of ROPS 82.3 in (with R4 tires) 86.6 in Height to Top of ROPS (folded) 66.3 in (folded ROPS, top of steering wheel, R4 tires) Not Published Height to Top of Cab Model Not Published Not Published Overall Length 102.1 in (with 3-point hitch) 94.2 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 1,537 lb (with ROPS, R4 tires) 1,472 lb Weight with ROPS and Loader 1,962 lb (1,537 + 425, computed) Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R3 Turf; R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front Not Published BAR F 16x6.50-8 R1 Agricultural - Rear Not Published BAR R 24x12.00-12 R3 Turf - Front 18x8.50-10 4PR Turf Master 16x7.50-8 NHS TL 4PR R3 Turf - Rear 26x12.0-12 4PR Turf Master 24x12.00-12 NHS TL 4PR R4 Industrial - Front 18x8.50-10 6PR WT300 18x8.5-10 NHS TL 4PR R4 Industrial - Rear 26x12.0-12 4PR WT300 26x12.00-12 NHS TL 4PR ▶ Loader & AttachmentsQuick Attach Loader System YL110: YANMAR quick attachment system TX22H: Quick attach mechanism Loader Model YL110 TX22H Loader Lift Height YL110: 71 in to pivot pin (51 in under level bucket) TX22H: 71.3 in Loader Lift Capacity (Full Height) YL110: 825 lb at pivot pin TX22H: 617 lb (at pivot pin) Loader Breakout Force YL110: 1,342 lb at pivot pin TX22H: 1,235 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage Private individual use: basic 24 months or 2,000 hours, powertrain 10 years or 3,000 hours; attachments 1 year Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
