Which has more horsepower, the TYM T224 or the Yanmar SA223?

They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.

Which has more PTO horsepower, the TYM T224 or the Yanmar SA223?

The Yanmar SA223 leads on pto hp at 15.6 hp hp, compared to 15.1 hp hp for the TYM T224.

Which has more loader lift capacity, the TYM T224 or the Yanmar SA223?

The Yanmar SA223 leads on loader lift at 825 lb lb, compared to 617 lb lb for the TYM T224.

Which has more three-point hitch lift capacity, the TYM T224 or the Yanmar SA223?

The TYM T224 leads on 3-pt lift (24 in) at 679 lb lb, compared to 660 lb lb for the Yanmar SA223.

TYM T224 vs Yanmar SA223

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Yanmar SA223 leads 5 categories to 2 (1 tied). Machine pages: TYM T224 and Yanmar SA223.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T224	Yanmar SA223
Engine HP (hp)	21.5 hp	21.5 hp
PTO HP (hp)	15.1 hp	▲ 15.6 hp
Weight (lb)	—	1,962 lb
Loader Lift (lb)	617 lb	▲ 825 lb
3-Pt Lift (24 in) (lb)	▲ 679 lb	660 lb
Lift Height (in)	▲ 71.3 in	71 in
Breakout Force (lbf)	1,235 lbf	▲ 1,342 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 8 gpm
Travel Speed (mph)	8.4 mph	▲ 9.5 mph

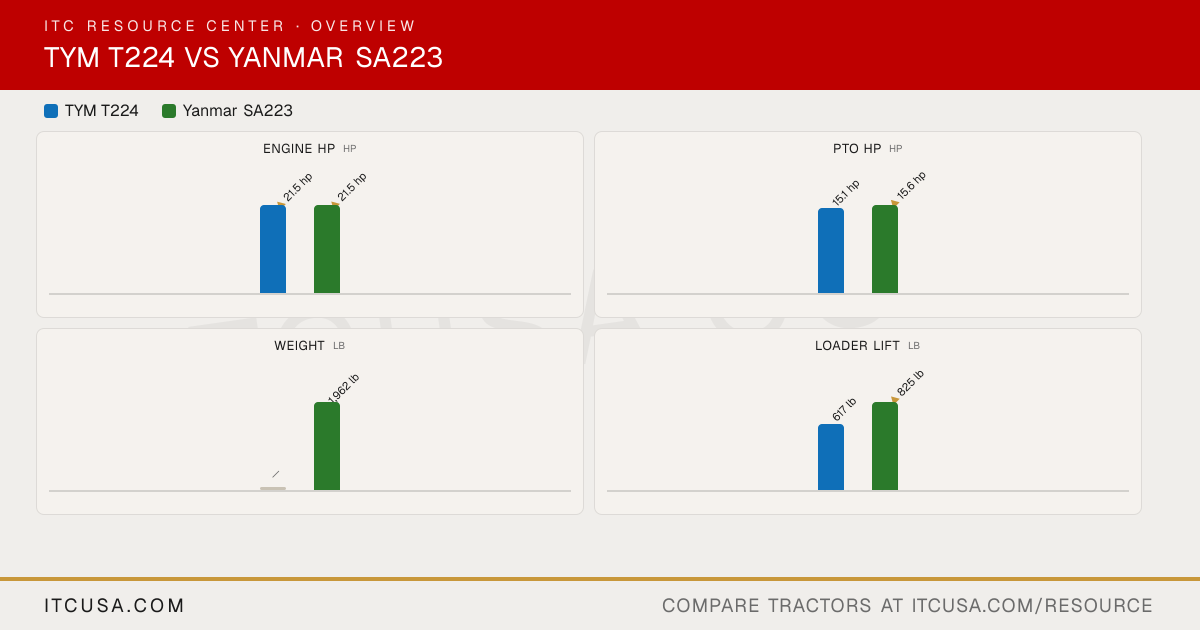

The headline numbers at a glance.

TYM T224Yanmar SA223

Engine HPhp

▲21.5 hp

PTO HPhp

15.1 hp

▲15.6 hp

Weightlb

—

1,962 lb

Loader Liftlb

617 lb

▲825 lb

3-Pt Lift (24 in)lb

▲679 lb

660 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT224	YanmarSA223


PTO Power	15.1 hp	15.6 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Single dry	Not Published
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	IDI	Not Published
Displacement	60.6 in³	60.6 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	3200 rpm
Cooling System Type	Water-cooled	Liquid cooled
Engine Manufacturer	Yanmar	YANMAR
Engine Power (Gross)	21.5 hp	21.5 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	1,962 lb
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty

Pump Type	Single gear pump	Not Published
Steering Flow	2.1 gpm	3.7 gpm
Implement Flow	4.6 gpm	4.3 gpm
Total Hydraulic Flow	6.7 gpm	8.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.7 gpm	8.0 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	554 rpm @ 3,200 engine rpm
PTO Type	Independent	Independent (hydraulic clutch)
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,100 lb	Not Published
Mid-PTO Availability	Available	Standard
Category, 3-Point Hitch	Category I (Narrow)	Limited Category I
Hitch Lift Capacity (at 24”)	679 lb	660 lb

R3 Turf - Rear	Turf Master 24x12.00-12 NHS TL 4PR	26x12.0-12 4PR
R3 Turf - Front	Turf Master 16x7.50-8 NHS TL 4PR	18x8.50-10 4PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R3 Turf; R4 Industrial
R4 Industrial - Rear	WT300 26x12.00-12 NHS TL 4PR	26x12.0-12 4PR
R4 Industrial - Front	WT300 18x8.5-10 NHS TL 4PR	18x8.50-10 6PR
R1 Agricultural - Rear	BAR R 24x12.00-12	Not Applicable
R1 Agricultural - Front	BAR F 16x6.50-8	Not Applicable

Coolant Capacity	3.7 qt	3.0 qt
Crankcase Capacity	1.9 qt	3.1 qt
Fuel Tank Capacity	6.6 gal	6.1 gal
Front Axle Fluid Capacity	2.6 qt	3.17 qt
Transmission / Hydraulic System Capacity	3.6 gal	4.1 gal

Loader Lift Height	71.3 in	71 in
Loader Breakout Force	1,235 lb	1,342 lb
Quick Attach Loader System	TX22H: Quick attach mechanism	YL110: YANMAR quick attachment system (quick attach/detach)
Loader Lift Capacity (Full Height)	617 lb	825 lb

Clutch	Not applicable	Not Applicable
No. of Speeds	Infinite 2-Range	Unlimited (hydrostatic); 2 ranges (High/Low)
Transmission Type	HST	Hydrostatic transmission, dual range speeds
Max Travel Speed (Forward)	8.4 mph	9.5 mph (with R4 tires)
Max Travel Speed (Reverse)	Not Published	6.6 mph (with R4 tires)
Differential Lock & Limited Slip Options	Differential lock	Standard differential lock

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic power steering
Frame Type	Not Published	Full-frame chassis
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	53.1 in	57.9 in
Overall Width	44.5 in	47.3 in
Ground Clearance	8.3 in	6.4 in
Height to Top of ROPS	86.6 in	82.3 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	66.3 in (folded ROPS, top of steering wheel)
Min. Turn Radius without Brakes	86.6 in	7.87 ft (2.4 m)
Overall Length with 3-Point Hitch	94.2 in	102.1 in

TYM T224 vs Yanmar SA223: Quick Answers

Which has more horsepower, the TYM T224 or the Yanmar SA223?: They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.
Which has more PTO horsepower, the TYM T224 or the Yanmar SA223?: The Yanmar SA223 leads on pto hp at 15.6 hp hp, compared to 15.1 hp hp for the TYM T224.
Which has more loader lift capacity, the TYM T224 or the Yanmar SA223?: The Yanmar SA223 leads on loader lift at 825 lb lb, compared to 617 lb lb for the TYM T224.
Which has more three-point hitch lift capacity, the TYM T224 or the Yanmar SA223?: The TYM T224 leads on 3-pt lift (24 in) at 679 lb lb, compared to 660 lb lb for the Yanmar SA223.
