Which has more horsepower, the Bad Boy Tractors 3026 or the TYM T224?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the TYM T224.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the TYM T224?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 15.1 hp hp for the TYM T224.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the TYM T224?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 617 lb lb for the TYM T224.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the TYM T224?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 679 lb lb for the TYM T224.

Bad Boy Tractors 3026 vs TYM T224

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Bad Boy Tractors 3026 leads 8 categories to 0. Machine pages: Bad Boy Tractors 3026 and TYM T224.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 3026	TYM T224
Engine HP (hp)	▲ 24 hp	21.5 hp
PTO HP (hp)	▲ 18 hp	15.1 hp
Weight (lb)	1,829.8 lb	—
Loader Lift (lb)	▲ 1,314 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 974 lb	679 lb
Lift Height (in)	▲ 86 in	71.3 in
Breakout Force (lbf)	▲ 1,960 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 7.4 gpm	6.7 gpm
Travel Speed (mph)	▲ 14.8 mph	8.4 mph

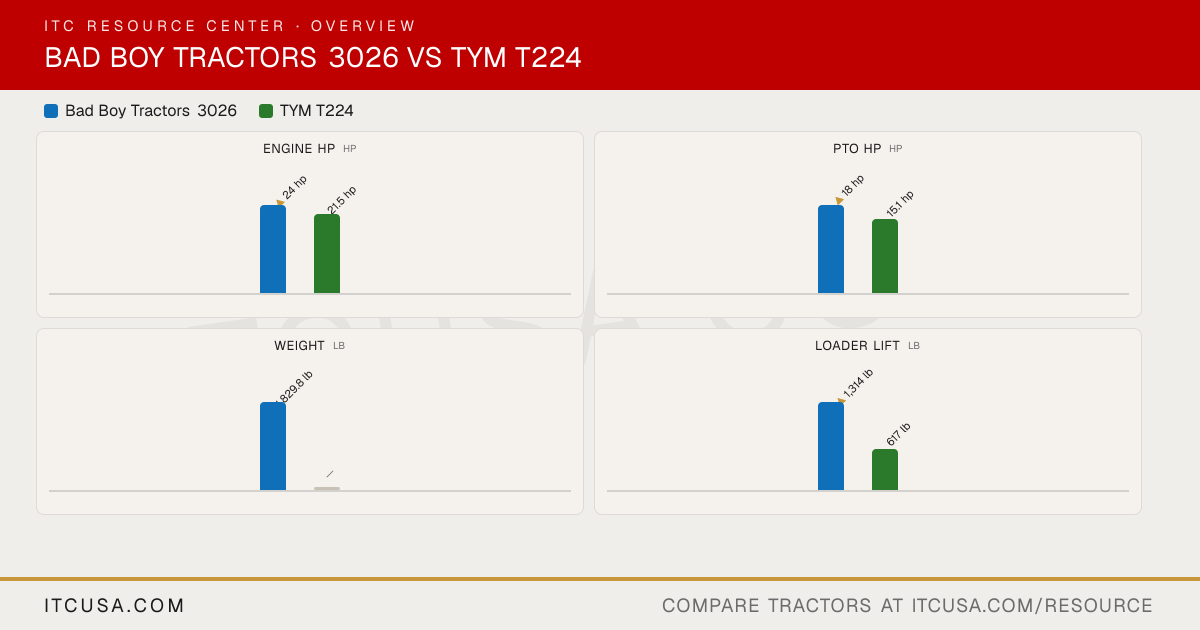

The headline numbers at a glance.

Bad Boy Tractors 3026TYM T224

Engine HPhp

▲24 hp

21.5 hp

PTO HPhp

▲18 hp

15.1 hp

Weightlb

1,829.8 lb

—

Loader Liftlb

▲1,314 lb

617 lb

3-Pt Lift (24 in)lb

▲974 lb

679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	TYMT224


PTO Power	18 hp	15.1 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Dry, Element	Single dry
Engine Type	3 CYL, Water Cooled, Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Diesel	IDI
Displacement	71.7 in³	60.6 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3200 rpm
Cooling System Type	Water Cooled	Water-cooled
Engine Manufacturer	TYM	Yanmar
Engine Power (Gross)	24 hp	21.5 hp
Engine Emissions Constraints	Final Tier4	Tier 4

Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	Not Published

Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear type pump with primary and secondary pumps	Single gear pump
Steering Flow	3.1 gpm	2.1 gpm
Implement Flow	4.3 gpm	4.6 gpm
Total Hydraulic Flow	7.4 gpm 28.0 lpm	6.7 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Open center
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	6.7 gpm
No. of Optional Remote Valves	Optional (Up To 1)	1
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 / 960 rpm @ 2,600 rpm	540 rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,433 lbs	1,100 lb
Mid-PTO Availability	Option: 2,500 rpm (Mid)	Available
Category, 3-Point Hitch	Cat 1	Category I (Narrow)
Hitch Lift Capacity (at 24”)	974 lb	679 lb

R3 Turf - Rear	Not Published	Turf Master 24x12.00-12 NHS TL 4PR
R3 Turf - Front	Not Published	Turf Master 16x7.50-8 NHS TL 4PR
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14X17.5	WT300 26x12.00-12 NHS TL 4PR
R4 Industrial - Front	25X8.50-14	WT300 18x8.5-10 NHS TL 4PR
R1 Agricultural - Rear	11.2-20 8PR	BAR R 24x12.00-12
R1 Agricultural - Front	7-16 6PR	BAR F 16x6.50-8

Coolant Capacity	1.21 gal	3.7 qt
Crankcase Capacity	0.79 gal	1.9 qt
Fuel Tank Capacity	6.08 gal	6.6 gal
Front Axle Fluid Capacity	0.79 gal	2.6 qt
Transmission / Hydraulic System Capacity	2.90 gal	3.6 gal

Loader Lift Height	86 in.	71.3 in
Loader Breakout Force	1,960 lbs.	1,235 lb
Quick Attach Loader System	SSQA	TX22H: Quick attach mechanism
Loader Lift Capacity (Full Height)	1,314 lbs.	617 lb

Clutch	Dry Single Plate	Not applicable
No. of Speeds	3 Range	Infinite 2-Range
Transmission Type	Hydrostatic (HST)	HST
Max Travel Speed (Forward)	14.8 mph	8.4 mph
Max Travel Speed (Reverse)	14.8 mph	Not Published
Differential Lock & Limited Slip Options	Differential Lock	Differential lock

Brakes	Wet, Multi-Disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Steel frame with cast iron axles	Not Published
Front Axle Type	4 Wheel Drive	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Not Published

Wheelbase	65.7"	53.1 in
Overall Width	53.8"	44.5 in
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	—
Ground Clearance	16.4"	8.3 in
Height to Top of ROPS	91.4"	86.6 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	Not Published
Min. Turn Radius without Brakes	46°	86.6 in
Overall Length with 3-Point Hitch	110 in	94.2 in
