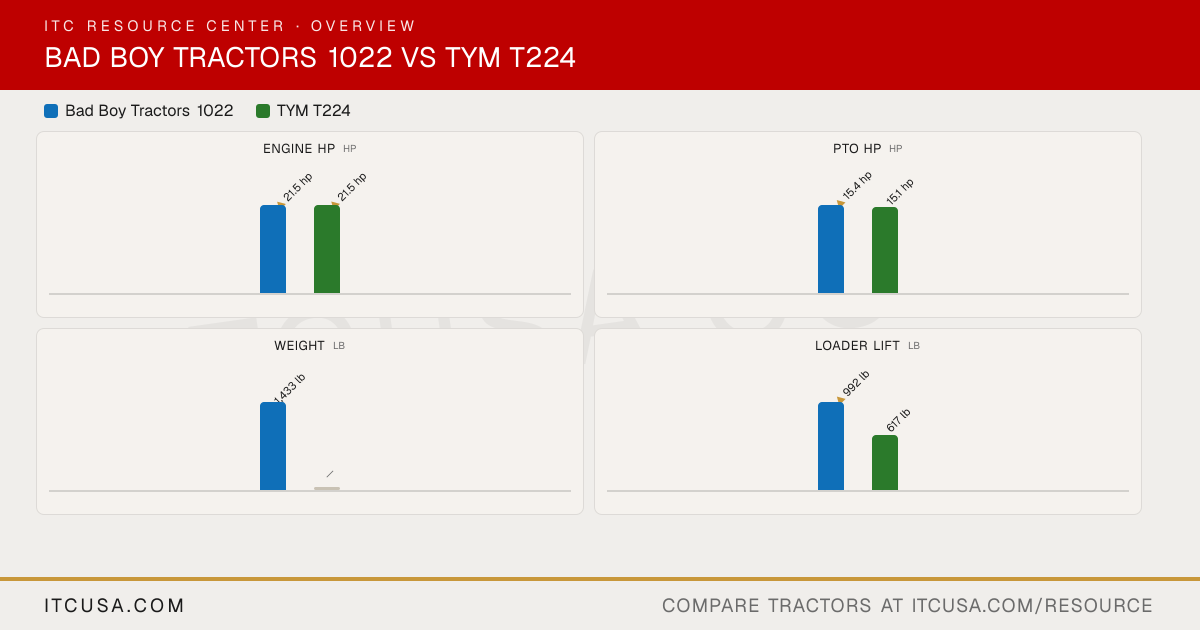

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Bad Boy Tractors1022
TYMT224
PTO Power
15.4 hp
15.1 hp
Alternator
40 A, 12 V
40 A, 12 V
Air Cleaner
Single Dry
Single dry
Engine Type
Natural Aspiration
3-cylinder, naturally aspirated diesel
Fuel System
Diesel
IDI
Displacement
60.6 (993)
60.6 in³
No. of Cylinders
3
3
Rated Engine Speed
3,200
3200 rpm
Cooling System Type
Water cooled
Water-cooled
Engine Manufacturer
Yanmar
Yanmar
Engine Power (Gross)
21.5 hp
21.5 hp
Engine Emissions Constraints
Tier 4
Tier 4
Tractor Weight (Base)
1,433 (650)
—
Weight with ROPS and Loader
1,433 lb
Not Published
Weight with Cab and Loader
Not Published
Not Published
Warranty Length & Coverage
7-year powertrain warranty
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Single Gear Pump with Flow Divider
Single gear pump
Steering Flow
2.11 gpm
2.1 gpm
Implement Flow
4.17 (15.8)
4.6 gpm
Total Hydraulic Flow
6.97 (26.4)
6.7 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.97 gpm (max total flow)
6.7 gpm
No. of Optional Remote Valves
Up to 1
1
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position
Position control
Hitch Lift Capacity
1,100 lb
1,100 lb
Mid-PTO Availability
Optional (2,500 rpm)
Available
Category, 3-Point Hitch
Category I (N)
Category I (Narrow)
Hitch Lift Capacity (at 24”)
679 lb
679 lb
R3 Turf - Rear
TURF R 16X12.00-12
Turf Master 24x12.00-12 NHS TL 4PR
R3 Turf - Front
TURF F 16X7.50-8
Turf Master 16x7.50-8 NHS TL 4PR
Tire Size & Options
R1 (BAR) / R3 (TURF) / R4 (IND)
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12-12
WT300 26x12.00-12 NHS TL 4PR
R4 Industrial - Front
18X8.50-10
WT300 18x8.5-10 NHS TL 4PR
R1 Agricultural - Rear
BAR R 24X12.00-12
BAR R 24x12.00-12
R1 Agricultural - Front
BAR F 16X7.50-9
BAR F 16x6.50-8
Coolant Capacity
0.9 gal
3.7 qt
Crankcase Capacity
0.48 gal
1.9 qt
Fuel Tank Capacity
6.6 gal
6.6 gal
Front Axle Fluid Capacity
2.6 qt
2.6 qt
Transmission / Hydraulic System Capacity
3.6 gal
3.6 gal
Loader Lift Height
72.7 in (under level bucket); 78.5 in (pivot pin)
71.3 in
Loader Breakout Force
1,531 lb (at pivot pin, ground level)
1,235 lb
Quick Attach Loader System
SSQA
TX22H: Quick attach mechanism
Loader Lift Capacity (Full Height)
992 lb (at pivot pin)
617 lb
Clutch
Dry single plate
Not applicable
No. of Speeds
2 Range
Infinite 2-Range
Transmission Type
Hydrostatic transmission (HST)
HST
Max Travel Speed (Forward)
7.8 mph
8.4 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Differential Lock & Limited Slip Options
Mechanical rear differential lock
Differential lock
Brakes
Wet disc
Wet disc
Steering
Hydrostatic
Hydrostatic
Frame Type
Sub-compact tractor, 4WD
Not Published
Front Axle Type
Center pin front axle
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Standard adjustable seat
Not Published
Wheelbase
53.1 (1,350)
53.1 in
Overall Width
44.5 (1,130)
44.5 in
Overall Length
94.2 (2,394)
—
Ground Clearance
8.3 in.
8.3 in
Height to Top of ROPS
86.6 (2,200)
86.6 in
Height to Top of Cab Model
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Min. Turn Radius without Brakes
86.6 (2,200)
86.6 in
Overall Length with 3-Point Hitch
94.2 in
94.2 in
Bad Boy Tractors 1022 vs TYM T224: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the TYM T224?
They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM T224?
The Bad Boy Tractors 1022 leads on pto hp at 15.4 hp hp, compared to 15.1 hp hp for the TYM T224.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM T224?
The Bad Boy Tractors 1022 leads on loader lift at 992 lb lb, compared to 617 lb lb for the TYM T224.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM T224?
They are effectively tied: both machines are rated at 679 lb lb for 3-pt lift (24 in).
