Which has more horsepower, the Bad Boy Tractors 3026 or the Yanmar SA223?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the Yanmar SA223.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Yanmar SA223?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 15.6 hp hp for the Yanmar SA223.

Which is heavier, the Bad Boy Tractors 3026 or the Yanmar SA223?

The Yanmar SA223 leads on weight at 1,962 lb lb, compared to 1,829.8 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Yanmar SA223?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 825 lb lb for the Yanmar SA223.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Yanmar SA223?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 660 lb lb for the Yanmar SA223.

Bad Boy Tractors 3026 vs Yanmar SA223

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 3026 leads 7 categories to 2. Machine pages: Bad Boy Tractors 3026 and Yanmar SA223.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 3026	Yanmar SA223
Engine HP (hp)	▲ 24 hp	21.5 hp
PTO HP (hp)	▲ 18 hp	15.6 hp
Weight (lb)	1,829.8 lb	▲ 1,962 lb
Loader Lift (lb)	▲ 1,314 lb	825 lb
3-Pt Lift (24 in) (lb)	▲ 974 lb	660 lb
Lift Height (in)	▲ 86 in	71 in
Breakout Force (lbf)	▲ 1,960 lbf	1,342 lbf
Hydraulic Flow (gpm)	7.4 gpm	▲ 8 gpm
Travel Speed (mph)	▲ 14.8 mph	9.5 mph

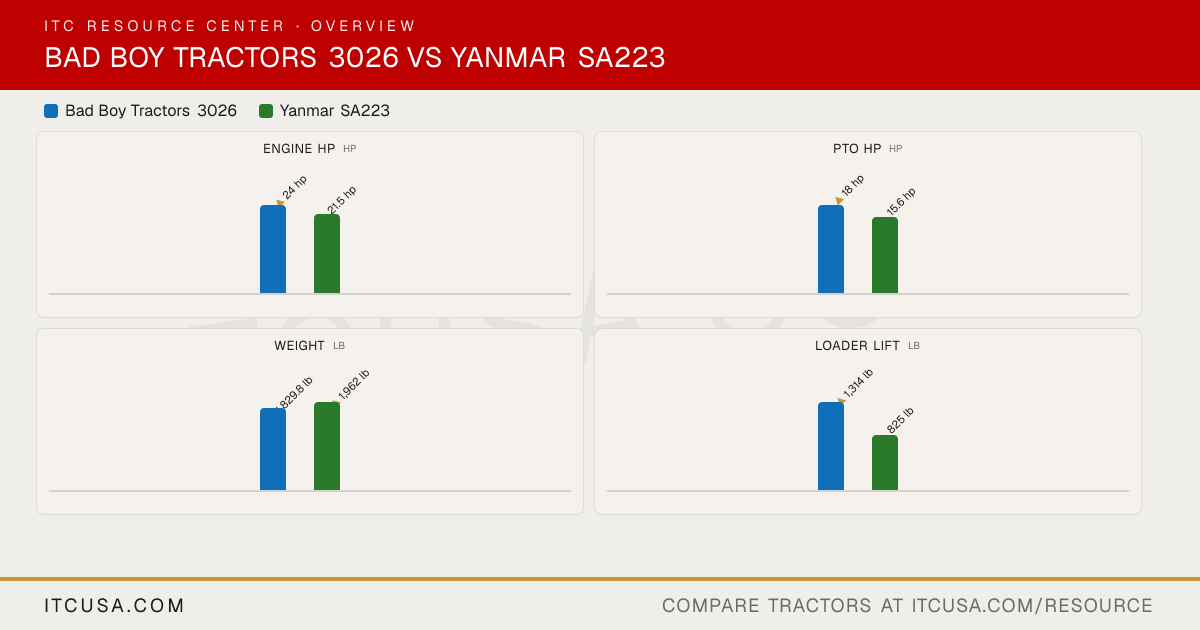

The headline numbers at a glance.

Bad Boy Tractors 3026Yanmar SA223

Engine HPhp

▲24 hp

21.5 hp

PTO HPhp

▲18 hp

15.6 hp

Weightlb

1,829.8 lb

▲1,962 lb

Loader Liftlb

▲1,314 lb

825 lb

3-Pt Lift (24 in)lb

▲974 lb

660 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	YanmarSA223


PTO Power	18 hp	15.6 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Dry, Element	Not Published
Engine Type	3 CYL, Water Cooled, Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Diesel	Not Published
Displacement	71.7 in³	60.6 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3200 rpm
Cooling System Type	Water Cooled	Liquid cooled
Engine Manufacturer	TYM	YANMAR
Engine Power (Gross)	24 hp	21.5 hp
Engine Emissions Constraints	Final Tier4	Not Published

Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	—
Weight with ROPS and Loader	Not Published	1,962 lb
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty

Pump Type	Gear type pump with primary and secondary pumps	Not Published
Steering Flow	3.1 gpm	3.7 gpm
Implement Flow	4.3 gpm	4.3 gpm
Total Hydraulic Flow	7.4 gpm 28.0 lpm	8.0 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Open center
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	8.0 gpm
No. of Optional Remote Valves	Optional (Up To 1)	Not Published
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 / 960 rpm @ 2,600 rpm	554 rpm @ 3,200 engine rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Independent (hydraulic clutch)
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,433 lbs	Not Published
Mid-PTO Availability	Option: 2,500 rpm (Mid)	Standard
Category, 3-Point Hitch	Cat 1	Limited Category I
Hitch Lift Capacity (at 24”)	974 lb	660 lb

R3 Turf - Rear	Not Published	26x12.0-12 4PR
R3 Turf - Front	Not Published	18x8.50-10 4PR
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	R3 Turf; R4 Industrial
R4 Industrial - Rear	14X17.5	26x12.0-12 4PR
R4 Industrial - Front	25X8.50-14	18x8.50-10 6PR
R1 Agricultural - Rear	11.2-20 8PR	Not Applicable
R1 Agricultural - Front	7-16 6PR	Not Applicable

Coolant Capacity	1.21 gal	3.0 qt
Crankcase Capacity	0.79 gal	3.1 qt
Fuel Tank Capacity	6.08 gal	6.1 gal
Front Axle Fluid Capacity	0.79 gal	3.17 qt
Transmission / Hydraulic System Capacity	2.90 gal	4.1 gal

Loader Lift Height	86 in.	71 in
Loader Breakout Force	1,960 lbs.	1,342 lb
Quick Attach Loader System	SSQA	YL110: YANMAR quick attachment system (quick attach/detach)
Loader Lift Capacity (Full Height)	1,314 lbs.	825 lb

Clutch	Dry Single Plate	Not Applicable
No. of Speeds	3 Range	Unlimited (hydrostatic); 2 ranges (High/Low)
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission, dual range speeds
Max Travel Speed (Forward)	14.8 mph	9.5 mph (with R4 tires)
Max Travel Speed (Reverse)	14.8 mph	6.6 mph (with R4 tires)
Differential Lock & Limited Slip Options	Differential Lock	Standard differential lock

Brakes	Wet, Multi-Disc	Wet disc
Steering	Hydrostatic	Hydrostatic power steering
Frame Type	Steel frame with cast iron axles	Full-frame chassis
Front Axle Type	4 Wheel Drive	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Not Published

Wheelbase	65.7"	57.9 in
Overall Width	53.8"	47.3 in
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	—
Ground Clearance	16.4"	6.4 in
Height to Top of ROPS	91.4"	82.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	66.3 in (folded ROPS, top of steering wheel)
Min. Turn Radius without Brakes	46°	7.87 ft (2.4 m)
Overall Length with 3-Point Hitch	110 in	102.1 in
