Which has more horsepower, the Bad Boy Tractors 4025 or the TYM T224?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 21.5 hp hp for the TYM T224.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the TYM T224?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 617 lb lb for the TYM T224.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the TYM T224?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 679 lb lb for the TYM T224.

Bad Boy Tractors 4025 vs TYM T224

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Bad Boy Tractors 4025 leads 6 categories to 0. Machine pages: Bad Boy Tractors 4025 and TYM T224.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4025	TYM T224
Engine HP (hp)	▲ 24.5 hp	21.5 hp
PTO HP (hp)	—	15.1 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	▲ 2,200 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	679 lb
Lift Height (in)	▲ 104 in	71.3 in
Breakout Force (lbf)	▲ 3,660 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 11.5 gpm	6.7 gpm
Travel Speed (mph)	—	8.4 mph

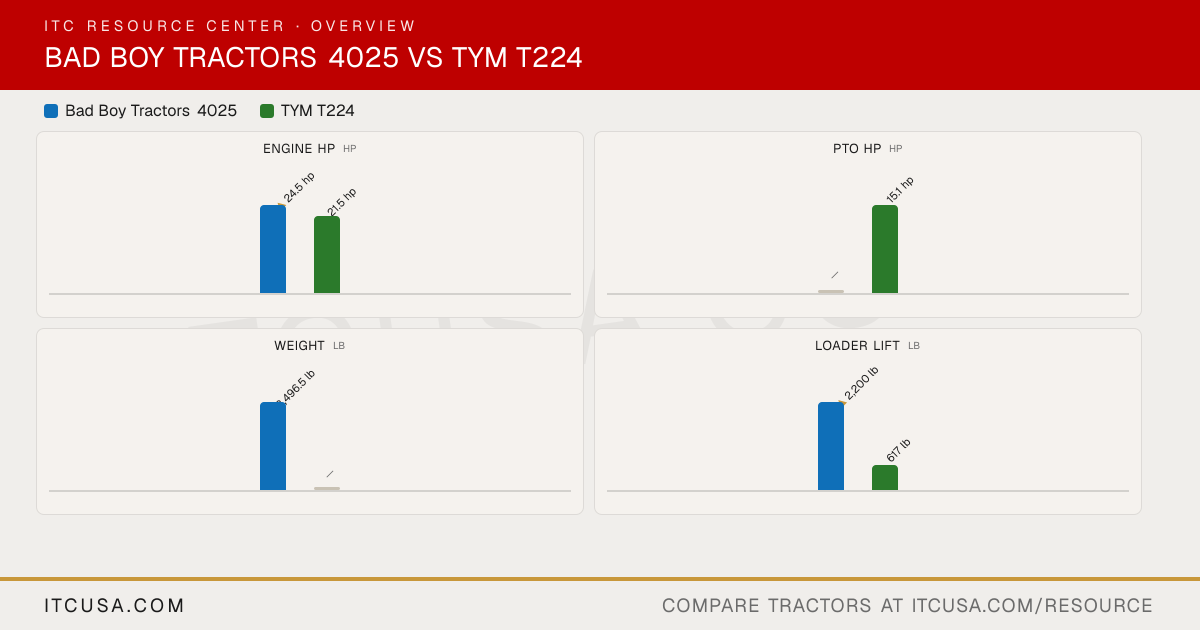

The headline numbers at a glance.

Bad Boy Tractors 4025TYM T224

Engine HPhp

▲24.5 hp

21.5 hp

PTO HPhp

—

15.1 hp

Weightlb

3,496.5 lb

—

Loader Liftlb

▲2,200 lb

617 lb

3-Pt Lift (24 in)lb

▲2,425 lb

679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	TYMT224


PTO Power	540 rpm, 1st stage	15.1 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Present (standard equipment)	Single dry
Engine Type	Vertical, water cooled 4-cycle, diesel engine	3-cylinder, naturally aspirated diesel
Fuel System	Diesel fuel system with fuel injection pump	IDI
Displacement	104.6 in³	60.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	3200 rpm
Cooling System Type	Pressurized Radiator	Water-cooled
Engine Manufacturer	A1700N6, A1700N5, A1700N4	Yanmar
Engine Power (Gross)	24.5 hp	21.5 hp
Engine Emissions Constraints	Not Published	Tier 4

Tractor Weight (Base)	3,496.5 lb (3,497 lbs), 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Single gear pump
Steering Flow	4.0 gpm	2.1 gpm
Implement Flow	7.5 gpm	4.6 gpm
Total Hydraulic Flow	11.5 gpm (4.0 + 7.5)	6.7 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	463 lbf/cm² maximum	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.5 gpm	6.7 gpm
No. of Optional Remote Valves	Optional (Up to 2)	1
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control type	Position control
Hitch Lift Capacity	2,425 lb @ 24 in behind lift point	1,100 lb
Mid-PTO Availability	Not Published	Available
Category, 3-Point Hitch	Category 1	Category I (Narrow)
Hitch Lift Capacity (at 24”)	2,425 lb @ 24 in behind lift point	679 lb

R3 Turf - Rear	Not Published	Turf Master 24x12.00-12 NHS TL 4PR
R3 Turf - Front	Not Published	Turf Master 16x7.50-8 NHS TL 4PR
Tire Size & Options	OEM website lists IND tires 25X8.50-14 / 15-19.5; Operator Manual spec based on 8.0-16 / 12.4-24	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5	WT300 26x12.00-12 NHS TL 4PR
R4 Industrial - Front	25X8.50-14	WT300 18x8.5-10 NHS TL 4PR
R1 Agricultural - Rear	12.4-24 6PR	BAR R 24x12.00-12
R1 Agricultural - Front	8.0-16 4PR	BAR F 16x6.50-8

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	3.7 qt
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	1.9 qt
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	6.6 gal
Front Axle Fluid Capacity	Not Published	2.6 qt
Transmission / Hydraulic System Capacity	HST: 9.77 gal	3.6 gal

Loader Lift Height	104 in	71.3 in
Loader Breakout Force	3,660 lb	1,235 lb
Quick Attach Loader System	SSQA	TX22H: Quick attach mechanism
Loader Lift Capacity (Full Height)	2,200 lb (pivot pin)	617 lb

Clutch	None (HST)	Not applicable
No. of Speeds	3 Range	Infinite 2-Range
Transmission Type	HST (Hydrostatic Transmission) with shuttle type	HST
Max Travel Speed (Forward)	Not Published	8.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Wet, Multi-Disc	Wet disc
Steering	Hydrostatic power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.8 in (65.79 in.)	53.1 in
Overall Width	57.1 in (57.13 in.) [ROPS Model], 55.6 in (55.63 in.) [Cabin Model]	44.5 in
Overall Length	134.9 in (134.88 in.)	—
Ground Clearance	13.2 in (13.19 in.) [ROPS Model], 13.5 in (13.50 in.) [Cabin Model]	8.3 in
Height to Top of ROPS	104.1 in (104.06 in.) [ROPS Model], 88.9 in (88.9 in.) [Cabin Model]	86.6 in
Height to Top of Cab Model	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	86.6 in
Overall Length with 3-Point Hitch	134.88 in	94.2 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
