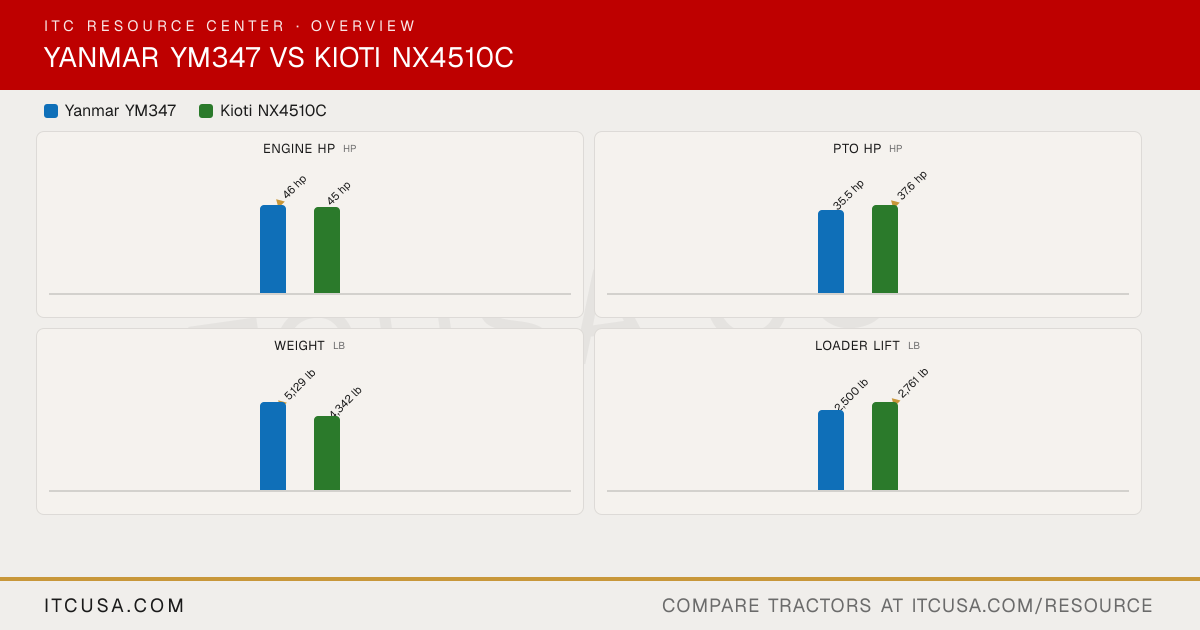

▶ EnginePTO Power 35.5 hp 37.6 hp Alternator Not Published Not Published Air Cleaner Dual air cleaner element Not Published Engine Type 4-cylinder, liquid-cooled diesel In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI Fuel System Not Published Common Rail Direct Injection (CRDI) Displacement 133.6 in³ 111.4 in³ No. of Cylinders 4 3 Rated Engine Speed Not Published 2600 rpm Cooling System Type Liquid cooled Water-cooled Engine Manufacturer YANMAR KIOTI (Daedong) Engine Power (Gross) 46 hp 45 hp Engine Emissions Constraints Not Published Tier 4 ▶ WeightWeight with ROPS and Loader 5,129 lb Not Applicable Weight with Cab and Loader Not Applicable 4,342 lb ▶ WarrantyWarranty Length & Coverage 10-year limited powertrain warranty or 3,000 hours (whichever comes first) Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time) ▶ HydraulicsPump Type Not Published Gear Steering Flow 5.3 gpm 8.2 gpm Implement Flow 9.3 gpm 8.2 gpm Total Hydraulic Flow 14.6 gpm 16.50 gpm Hydraulic System Type Not Published Open Center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 14.6 gpm 16.50 gpm No. of Optional Remote Valves 2 1 No. of Standard Remote Valves 1 1 ▶ PTO & HitchPTO Rear 540/540E rpm 540 rpm PTO Type Independent Independent Lift Control Type Not Published Position with Draft Control Hitch Lift Capacity 3,190 lb 3,177 lbs (at 24 in) Mid-PTO Availability Not Published Optional (2,000 rpm) Category, 3-Point Hitch Category I & II Category I Hitch Lift Capacity (at 24”) 2,750 lb 3,177 lbs ▶ Tire OptionsR3 Turf - Rear 44 x 18 - 20.0 21.5lx16.1 R3 Turf - Front 27.0 - 10.5 29x12.5-15 Tire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear 4.6 gal - 24.0 14.9-24 R4 Industrial - Front 10.0 - 16.5 10-16.5 R1 Agricultural - Rear 14.9 - 24.0 13.6-24 R1 Agricultural - Front 8.0 - 16.0 8.0-16 ▶ Fluid CapacityCoolant Capacity Not Published 2.0 gal Crankcase Capacity Not Published 1.58 gal Fuel Tank Capacity 13.2 gal 14.8 gal Front Axle Fluid Capacity Not Published 1.8 gal Transmission / Hydraulic System Capacity Not Published 14.53 gal ▶ Loader & AttachmentsLoader Lift Height 113 in 108.3 in Loader Breakout Force 3,047 lb 3,727 lb Quick Attach Loader System YL605: Skid steer quick attach Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Loader Lift Capacity (Full Height) 2,500 lb (pivot pin) 2,761 lb ▶ Transmission & DrivetrainClutch Dry single Dry Type Single Stage No. of Speeds 8F/8R 24X24 Transmission Type Synchronized shuttle shift Synchro Shuttle Max Travel Speed (Forward) 17.7 mph 15.71 mph Max Travel Speed (Reverse) Not Published 13.96 mph Differential Lock & Limited Slip Options Not Published Differential Lock: Rear (Standard) ▶ Chassis, Steering & ControlsBrakes Not Published Wet Multi Disc Steering Power steering Hydrostatic Power Steering Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Suspension seat Adjustable Seat ▶ Dimensions & ManeuverabilityWheelbase 74.8 in 75.6 in Overall Width 70.9 in (with R4 tires) 65.6 in Ground Clearance 15.5 in 13.7 in Height to Top of ROPS 98 in (with R4 tires) Not Applicable Height to Top of Cab Model Not Applicable 94.1 in Height to Top of ROPS (folded) Not Published Not Applicable Min. Turn Radius without Brakes 11.5 ft (3.5 m) 9.81 ft (2.99 m) Overall Length with 3-Point Hitch 133.6 in (with 3PH and R4 tires) 139.6 in ▶ ITC Company AccessoriesAccessories that fit None tagged yet
