Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 1025, 4 to the Kioti CK20. Machine pages: Bad Boy Tractors 1025 and Kioti CK20 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 1025 Kioti CK20 Engine HP (hp) ▲ 23.9 hp21 hp PTO HP (hp) ▲ 18.8 hp16.5 hp Weight (lb) 1,656 lb — Loader Lift (lb) 992 lb ▲ 1,076 lb3-Pt Lift (24 in) (lb) 1,101 lb ▲ 1,109 lbLift Height (in) 75.5 in ▲ 88 inBreakout Force (lbf) ▲ 1,531 lbf1,515 lbf Hydraulic Flow (gpm) 7 gpm ▲ 7.7 gpmTravel Speed (mph) ▲ 10.5 mph10.1 mph

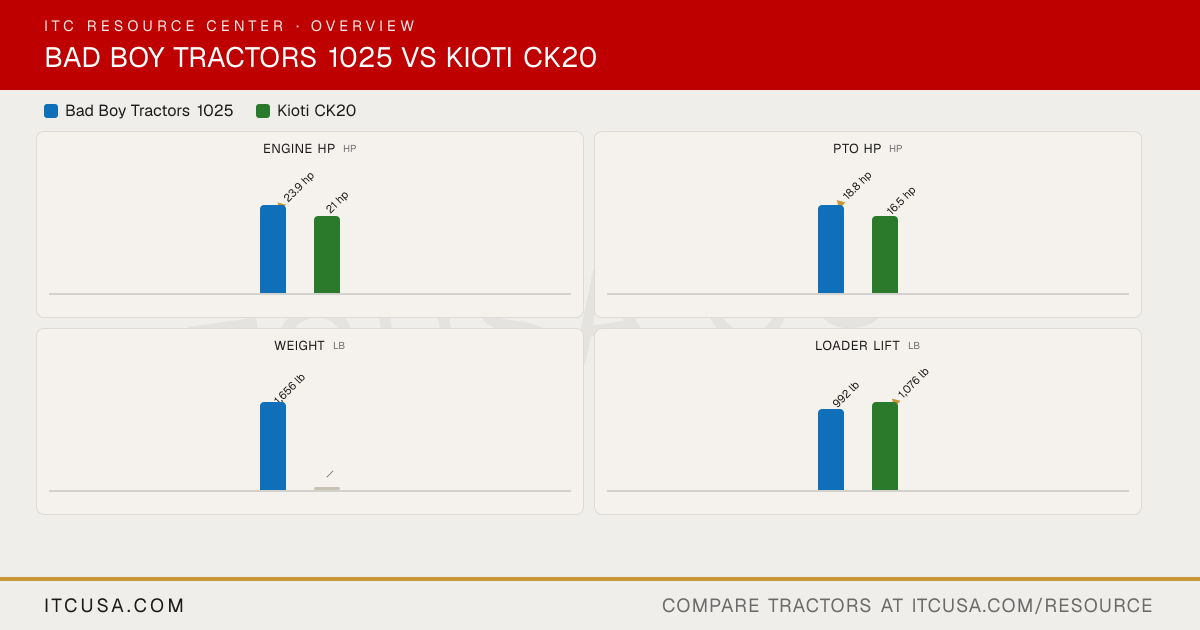

Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 1025 Kioti CK20
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 1025 Kioti CK20
▶ EnginePTO Power 18.8 hp 16.5 hp Alternator 40 A, 12 V Not Published Air Cleaner Dry Element Not Published Engine Type Water cooled 4 cycle, 3 cylinder diesel Liquid-cooled, diesel Fuel System Indirect Injection Not Published Displacement 77.3 in³ 56.6 in³ No. of Cylinders 3 3 Rated Engine Speed 3000 rpm 2800 rpm Cooling System Type Water cooled, Forced circulation Liquid-cooled Engine Manufacturer YANMAR KIOTI (Daedong) Engine Power (Gross) 23.9 hp 21 hp Engine Emissions Constraints Not Published Not Published ▶ WeightTractor Weight (Base) 1,656 lb — Weight with ROPS and Loader 1,610 lb Not Published Weight with Cab and Loader Not Applicable Not Applicable ▶ WarrantyWarranty Length & Coverage Engine & Powertrain: 84 months (7 years) or 2,000 hours Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor ▶ HydraulicsPump Type Gear pump Not Published Steering Flow 2.8 gpm Not Published Implement Flow 4.2 gpm Not Published Total Hydraulic Flow 7.0 gpm 7.66 gpm Hydraulic System Type Power Assisted Hydro-Static Not Published System Operating Pressure 341.7 lbf/cm2 — Rear Remote Hydraulic Flow Not Applicable Not Published Overall Hydraulic Pump Flow 6.95 gpm 7.66 gpm No. of Optional Remote Valves Not Published 1 No. of Standard Remote Valves Not Applicable 0 ▶ PTO & HitchPTO Rear 540 rpm @ 2,893 engine rpm 540 rpm PTO Type Independent Transmission Lift Control Type Position control Not Published Hitch Lift Capacity 1,323 lb 1,631 lb Mid-PTO Availability Yes (2,000 rpm @ 2,875 engine rpm) Yes (2,000 rpm) Category, 3-Point Hitch Category I (N) Category 1 Hitch Lift Capacity (at 24”) 1,101 lb @ 24 in behind lift point 1,109 lb ▶ Tire OptionsR3 Turf - Rear 29X12.5-15 33X12.5-16.5 R3 Turf - Front 20X8-10 24X8.50-12/4 Tire Size & Options R1 (Ag) / R3 (Turf) / R4 (Industrial) R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear 27X12-16.5 12-16.5 R4 Industrial - Front 23X8.5-12 24X8.50-12/4 R1 Agricultural - Rear 9.5-16 9.5-16 R1 Agricultural - Front 6-12 6.0-12 ▶ Fluid CapacityCoolant Capacity 3.8 ℓ (1 US gal) Not Published Crankcase Capacity 2.7 ℓ (0.71 US gal) Not Published Fuel Tank Capacity 22 ℓ (5.81 US gal) 5.28 gal Front Axle Fluid Capacity 0.85 gal Not Published Transmission / Hydraulic System Capacity 3.83 gal Not Published ▶ Loader & AttachmentsLoader Lift Height 75.5 in (pivot pin) 88.0 in Loader Breakout Force 1,531 lb (pivot pin, ground level) 1,515 lb Quick Attach Loader System SSQA Not Published Loader Lift Capacity (Full Height) 992 lb (pivot pin) 1,076 lb ▶ Transmission & DrivetrainClutch No Not Published No. of Speeds 2 range (Low/High) 6F/2R Transmission Type Hydraulic + Mechanical H/L with Sliding-mesh MFWD(4WD) Partially synchronized Max Travel Speed (Forward) 10.5 mph (H range, Ag tires) 10.1 mph Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Differential lock Not Published ▶ Chassis, Steering & ControlsBrakes Wet disc, foot-operated Wet disc Steering Power steering (hydrostatic) Power steering Frame Type Sub-compact tractor; selectable 4WD Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Not Published ▶ Dimensions & ManeuverabilityWheelbase 66.1 in 57.9 in Overall Width 50.8 in 44.1 in Overall Length 92.5 in — Ground Clearance 8.2 in 12.2 in Height to Top of ROPS 89.7 in 77.5 in Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Overall Length with 3-Point Hitch 104.0 in 105.7 in ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 1025 vs Kioti CK20: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1025 or the Kioti CK20? The Bad Boy Tractors 1025 leads on engine hp at 23.9 hp hp, compared to 21 hp hp for the Kioti CK20.
Which has more PTO horsepower, the Bad Boy Tractors 1025 or the Kioti CK20? The Bad Boy Tractors 1025 leads on pto hp at 18.8 hp hp, compared to 16.5 hp hp for the Kioti CK20.
Which has more loader lift capacity, the Bad Boy Tractors 1025 or the Kioti CK20? The Kioti CK20 leads on loader lift at 1,076 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1025.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the Kioti CK20? The Kioti CK20 leads on 3-pt lift (24 in) at 1,109 lb lb, compared to 1,101 lb lb for the Bad Boy Tractors 1025. More Head-to-Heads
