Which has more horsepower, the Bad Boy Tractors 3026 or the Kioti CK20?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 21 hp hp for the Kioti CK20.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kioti CK20?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 16.5 hp hp for the Kioti CK20.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kioti CK20?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 1,076 lb lb for the Kioti CK20.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kioti CK20?

The Kioti CK20 leads on 3-pt lift (24 in) at 1,109 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.

Bad Boy Tractors 3026 vs Kioti CK20

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Bad Boy Tractors 3026 leads 5 categories to 3. Machine pages: Bad Boy Tractors 3026 and Kioti CK20.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 3026	Kioti CK20
Engine HP (hp)	▲ 24 hp	21 hp
PTO HP (hp)	▲ 18 hp	16.5 hp
Weight (lb)	1,829.8 lb	—
Loader Lift (lb)	▲ 1,314 lb	1,076 lb
3-Pt Lift (24 in) (lb)	974 lb	▲ 1,109 lb
Lift Height (in)	86 in	▲ 88 in
Breakout Force (lbf)	▲ 1,960 lbf	1,515 lbf
Hydraulic Flow (gpm)	7.4 gpm	▲ 7.7 gpm
Travel Speed (mph)	▲ 14.8 mph	10.1 mph

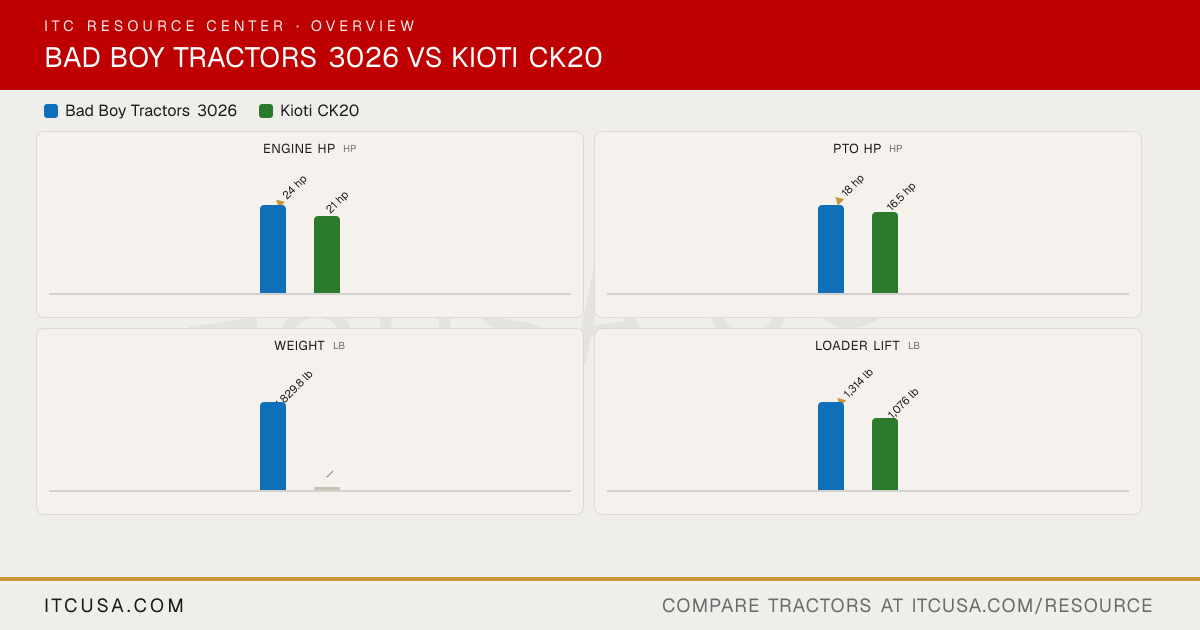

The headline numbers at a glance.

Bad Boy Tractors 3026Kioti CK20

Engine HPhp

▲24 hp

21 hp

PTO HPhp

▲18 hp

16.5 hp

Weightlb

1,829.8 lb

—

Loader Liftlb

▲1,314 lb

1,076 lb

3-Pt Lift (24 in)lb

974 lb

▲1,109 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KiotiCK20


PTO Power	18 hp	16.5 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Dry, Element	Not Published
Engine Type	3 CYL, Water Cooled, Diesel	Liquid-cooled, diesel
Fuel System	Diesel	Not Published
Displacement	71.7 in³	56.6 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Water Cooled	Liquid-cooled
Engine Manufacturer	TYM	KIOTI (Daedong)
Engine Power (Gross)	24 hp	21 hp
Engine Emissions Constraints	Final Tier4	Not Published

Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor

Pump Type	Gear type pump with primary and secondary pumps	Not Published
Steering Flow	3.1 gpm	Not Published
Implement Flow	4.3 gpm	Not Published
Total Hydraulic Flow	7.4 gpm 28.0 lpm	7.66 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Not Published
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	7.66 gpm
No. of Optional Remote Valves	Optional (Up To 1)	1
No. of Standard Remote Valves	0	0

PTO Rear	540 / 960 rpm @ 2,600 rpm	540 rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Transmission
Lift Control Type	Position control	Not Published
Hitch Lift Capacity	1,433 lbs	1,631 lb
Mid-PTO Availability	Option: 2,500 rpm (Mid)	Yes (2,000 rpm)
Category, 3-Point Hitch	Cat 1	Category 1
Hitch Lift Capacity (at 24”)	974 lb	1,109 lb

R3 Turf - Rear	Not Published	33X12.5-16.5
R3 Turf - Front	Not Published	24X8.50-12/4
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14X17.5	12-16.5
R4 Industrial - Front	25X8.50-14	24X8.50-12/4
R1 Agricultural - Rear	11.2-20 8PR	9.5-16
R1 Agricultural - Front	7-16 6PR	6.0-12

Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Fuel Tank Capacity	6.08 gal	5.28 gal
Front Axle Fluid Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published

Loader Lift Height	86 in.	88.0 in
Loader Breakout Force	1,960 lbs.	1,515 lb
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	1,314 lbs.	1,076 lb

Clutch	Dry Single Plate	Not Published
No. of Speeds	3 Range	6F/2R
Transmission Type	Hydrostatic (HST)	Partially synchronized
Max Travel Speed (Forward)	14.8 mph	10.1 mph
Max Travel Speed (Reverse)	14.8 mph	Not Published
Differential Lock & Limited Slip Options	Differential Lock	Not Published

Brakes	Wet, Multi-Disc	Wet disc
Steering	Hydrostatic	Power steering
Frame Type	Steel frame with cast iron axles	Not Published
Front Axle Type	4 Wheel Drive	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Not Published

Wheelbase	65.7"	57.9 in
Overall Width	53.8"	44.1 in
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	—
Ground Clearance	16.4"	12.2 in
Height to Top of ROPS	91.4"	77.5 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	Not Published
Min. Turn Radius without Brakes	46°	Not Published
Overall Length with 3-Point Hitch	110 in	105.7 in
