Across 3 measurable specs, the Massey Ferguson MF 1M.20 leads 2 categories to 1. Machine pages: Bad Boy Tractors 1025 and Massey Ferguson MF 1M.20.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bad Boy Tractors 1025 | Massey Ferguson MF 1M.20 |
|---|
| Engine HP (hp) | ▲ 23.9 hp | 20 hp |
| PTO HP (hp) | 18.8 hp | — |
| Weight (lb) | 1,656 lb | — |
| Loader Lift (lb) | 992 lb | — |
| 3-Pt Lift (24 in) (lb) | 1,101 lb | ▲ 1,433 lb |
| Lift Height (in) | 75.5 in | — |
| Breakout Force (lbf) | 1,531 lbf | — |
| Hydraulic Flow (gpm) | 7 gpm | ▲ 8.8 gpm |
| Travel Speed (mph) | 10.5 mph | — |

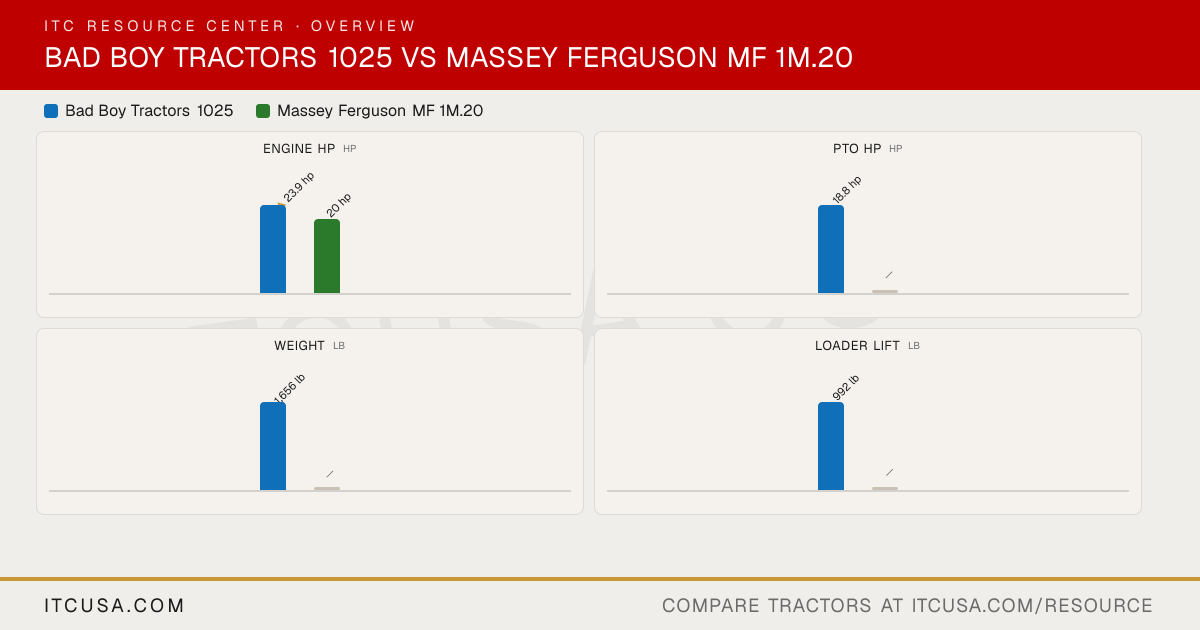

The headline numbers at a glance.
Bad Boy Tractors 1025Massey Ferguson MF 1M.20
ITCUSA.COMITCUSA.COMITCUSA.COM
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Bad Boy Tractors1025 | Massey FergusonMF 1M.20 |
|---|
|
|---|
| PTO Power | 18.8 hp | Not Published |
|---|
| Alternator | 40 A, 12 V | Not Published |
|---|
| Air Cleaner | Dry Element | Not Published |
|---|
| Engine Type | Water cooled 4 cycle, 3 cylinder diesel | 3-cylinder diesel |
|---|
| Fuel System | Indirect Injection | Not Published |
|---|
| Displacement | 77.3 in³ | 68.5 in³ |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Rated Engine Speed | 3000 rpm | 2500 rpm |
|---|
| Cooling System Type | Water cooled, Forced circulation | Not Published |
|---|
| Engine Manufacturer | YANMAR | Massey Ferguson (AGCO) |
|---|
| Engine Power (Gross) | 23.9 hp | 20 hp |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 1,656 lb | — |
|---|
| Weight with ROPS and Loader | 1,610 lb | Not Published |
|---|
| Weight with Cab and Loader | Not Applicable | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Engine & Powertrain: 84 months (7 years) or 2,000 hours | Not Published |
|---|
|
|---|
| Pump Type | Gear pump | Not Published |
|---|
| Steering Flow | 2.8 gpm | 3.2 gpm |
|---|
| Implement Flow | 4.2 gpm | 5.5 gpm |
|---|
| Total Hydraulic Flow | 7.0 gpm | 8.8 gpm |
|---|
| Hydraulic System Type | Power Assisted Hydro-Static | Not Published |
|---|
| System Operating Pressure | 341.7 lbf/cm2 | — |
|---|
| Rear Remote Hydraulic Flow | Not Applicable | Not Published |
|---|
| Overall Hydraulic Pump Flow | 6.95 gpm | 8.8 gpm |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Applicable | 1 |
|---|
|
|---|
| PTO Rear | 540 rpm @ 2,893 engine rpm | 540 rpm |
|---|
| PTO Type | Independent | Sliding gear |
|---|
| Lift Control Type | Position control | Not Published |
|---|
| Hitch Lift Capacity | 1,323 lb | 1,433 lb |
|---|
| Mid-PTO Availability | Yes (2,000 rpm @ 2,875 engine rpm) | Not Applicable |
|---|
| Category, 3-Point Hitch | Category I (N) | Category I |
|---|
| Hitch Lift Capacity (at 24”) | 1,101 lb @ 24 in behind lift point | Not Published |
|---|
|
|---|
| R3 Turf - Rear | 29X12.5-15 | 315X75D-15 |
|---|
| R3 Turf - Front | 20X8-10 | 24X8.50-12 |
|---|
| Tire Size & Options | R1 (Ag) / R3 (Turf) / R4 (Industrial) | R1 Agricultural, R3 Turf |
|---|
| R4 Industrial - Rear | 27X12-16.5 | Not Published |
|---|
| R4 Industrial - Front | 23X8.5-12 | Not Published |
|---|
| R1 Agricultural - Rear | 9.5-16 | 9.5-18 |
|---|
| R1 Agricultural - Front | 6-12 | 6.00-12 |
|---|
|
|---|
| Coolant Capacity | 3.8 ℓ (1 US gal) | Not Published |
|---|
| Crankcase Capacity | 2.7 ℓ (0.71 US gal) | Not Published |
|---|
| Fuel Tank Capacity | 22 ℓ (5.81 US gal) | 7.4 gal |
|---|
| Front Axle Fluid Capacity | 0.85 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 3.83 gal | Not Published |
|---|
|
|---|
| Loader Lift Height | 75.5 in (pivot pin) | Not Published |
|---|
| Loader Breakout Force | 1,531 lb (pivot pin, ground level) | Not Published |
|---|
| Quick Attach Loader System | SSQA | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 992 lb (pivot pin) | Not Published |
|---|
|
|---|
| Clutch | No | Not Published |
|---|
| No. of Speeds | 2 range (Low/High) | 9F / 9R |
|---|
| Transmission Type | Hydraulic + Mechanical H/L with Sliding-mesh MFWD(4WD) | Mechanical |
|---|
| Max Travel Speed (Forward) | 10.5 mph (H range, Ag tires) | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Differential lock | Differential lock (RHS pedal) |
|---|
|
|---|
| Brakes | Wet disc, foot-operated | Internal wet disc |
|---|
| Steering | Power steering (hydrostatic) | Not Published |
|---|
| Frame Type | Sub-compact tractor; selectable 4WD | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 66.1 in | 61.4 in |
|---|
| Overall Width | 50.8 in | 45.7 in |
|---|
| Overall Length | 92.5 in | — |
|---|
| Ground Clearance | 8.2 in | Not Published |
|---|
| Height to Top of ROPS | 89.7 in | 79.5 in |
|---|
| Height to Top of Cab Model | Not Applicable | Not Applicable |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 104.0 in | 115.9 in |
|---|
Bad Boy Tractors 1025 vs Massey Ferguson MF 1M.20: Quick Answers
- Which has more horsepower, the Bad Boy Tractors 1025 or the Massey Ferguson MF 1M.20?
- The Bad Boy Tractors 1025 leads on engine hp at 23.9 hp hp, compared to 20 hp hp for the Massey Ferguson MF 1M.20.
- Which has more three-point hitch lift capacity, the Bad Boy Tractors 1025 or the Massey Ferguson MF 1M.20?
- The Massey Ferguson MF 1M.20 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,101 lb lb for the Bad Boy Tractors 1025.
