Bad Boy Tractors 4025 vs Massey Ferguson 1220

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 8 categories to 0. Machine pages: Bad Boy Tractors 4025 and Massey Ferguson 1220.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

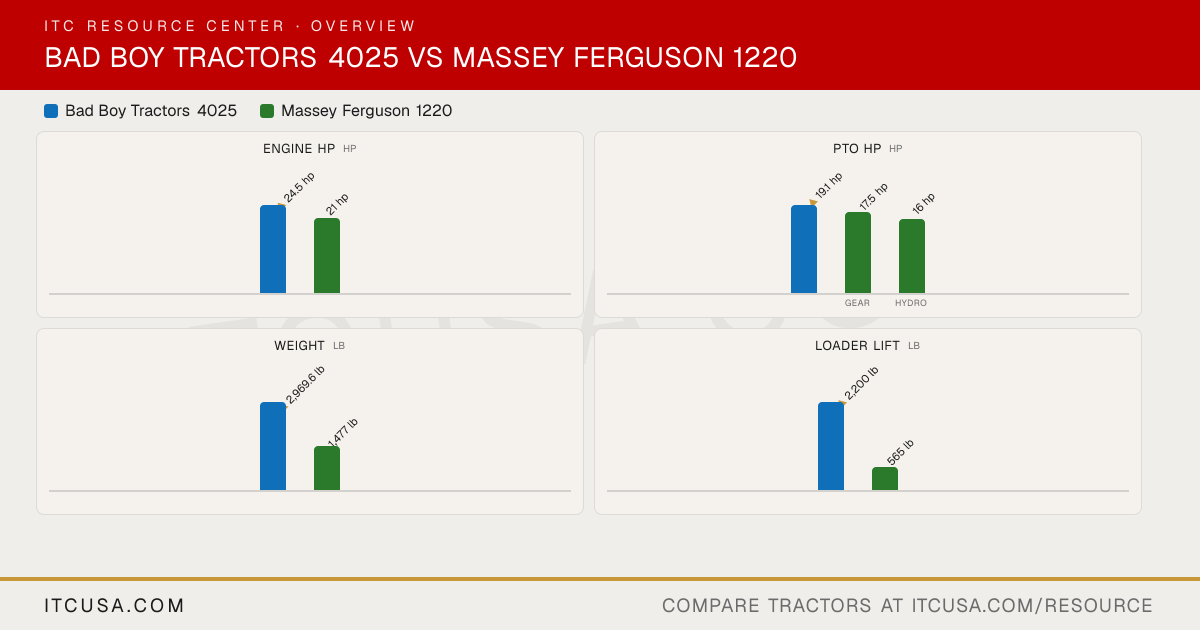

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	Massey Ferguson1220

▶Engine
Engine Manufacturer	TYM	Iseki
Engine Model	A1700N6-BUTR_3	E3112
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder liquid-cooled inline indirect-injection diesel
No. of Cylinders	3	3
Displacement	104.7 in³	68.5 in³
Rated Engine Speed	2100 rpm	2500 rpm
Engine Power (Gross)	24.5 hp	21 hp
PTO Power	19.1 hp	Gear: 17.5 hp; Hydro: 16 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	Not Published	Indirect injection, glow plug pre-heating
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Implement Flow	7.5 gpm	5.2 gpm
Steering Flow	4 gpm	2.5 gpm
Total Hydraulic Flow	11.5 gpm	7.7 gpm
Overall Hydraulic Pump Flow	11.5 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	1 or 2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	4.75 gal
Coolant Capacity	1.32 gal	5.4 qt
Crankcase Capacity	1.14 gal	3.3 qt
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	2.64 gal
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Live, two-stage dry disc clutch
PTO Rear	533 rpm	540 rpm (1.375 in) at 2327 engine rpm
Mid-PTO Availability	Not Published	Live, 2000 rpm at 2500 engine rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	1,210 lb
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	6-speed gear, hydrostatic, or 9-speed gear with optional creeper range
No. of Speeds	3 range (A/B/C)	Gear: 6F / 2R (9F / 3R with creeper); hydrostatic: infinite forward and reverse, 2 ranges
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	8.5 in dry disc (gear)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Two-post folding ROPS
Steering	Fully hydraulic power steering	2WD: power steering standard; 4WD: manual, power assist optional
Brakes	Wet multi-disc	Mechanical wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	2WD or 4WD; spur gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	108.3 in
Overall Width	56.7 in	42.2 in
Wheelbase	65.7 in	59.4 in
Ground Clearance	15 in	11 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.85 in	77 in
Height to Top of ROPS (folded)	Not Published	60.5 in
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	1,477 lb (2WD gear); 1,500 lb (2WD hydro); 1,654 lb (4WD gear); 1,676 lb (4WD hydro)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	Ag: 5.00-12 front (2WD) or 6-12 front (4WD), 9.5-16 rear; turf: 24x8.50-12 front, 315x75D-15 rear
R1 Agricultural - Front	8.0-16	5.00-12 (2WD); 6-12 (4WD)
R1 Agricultural - Rear	12.4-24	9.5-16
R3 Turf - Front	Not Published	24x8.50-12
R3 Turf - Rear	Not Published	315x75D-15
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	15-19.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	1242
Loader Lift Height	104 in	1242: 73.5 in
Loader Lift Capacity (Full Height)	2,200 lb	1242: 565 lb
Loader Breakout Force	3,660 lbf	1242: 955 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4025 vs Massey Ferguson 1220: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Massey Ferguson 1220?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 21 hp hp for the Massey Ferguson 1220.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Massey Ferguson 1220?

The Bad Boy Tractors 4025 leads on pto hp at 19.1 hp hp, compared to 17.5 hp hp for the Massey Ferguson 1220.

Which is heavier, the Bad Boy Tractors 4025 or the Massey Ferguson 1220?

The Bad Boy Tractors 4025 leads on weight at 2,969.6 lb lb, compared to 1,477 lb lb for the Massey Ferguson 1220.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Massey Ferguson 1220?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 565 lb lb for the Massey Ferguson 1220.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Massey Ferguson 1220?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1220.
