Across 3 measurable specs, this matchup is a dead heat: 1 categories to the Bad Boy Tractors 4035, 1 to the Massey Ferguson MF 35, 1 tied. Machine pages: Bad Boy Tractors 4035 and Massey Ferguson MF 35 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 4035 Massey Ferguson MF 35 Engine HP (hp) 34.9 hp ▲ 36.5 hpPTO HP (hp) 30 hp — Weight (lb) 3,496.5 lb — Loader Lift (lb) 2,200 lb — 3-Pt Lift (24 in) (lb) 2,425 lb 2,425 lb Lift Height (in) 104 in — Breakout Force (lbf) 3,660 lbf — Hydraulic Flow (gpm) ▲ 12.6 gpm4.2 gpm Travel Speed (mph) 19.1 mph —

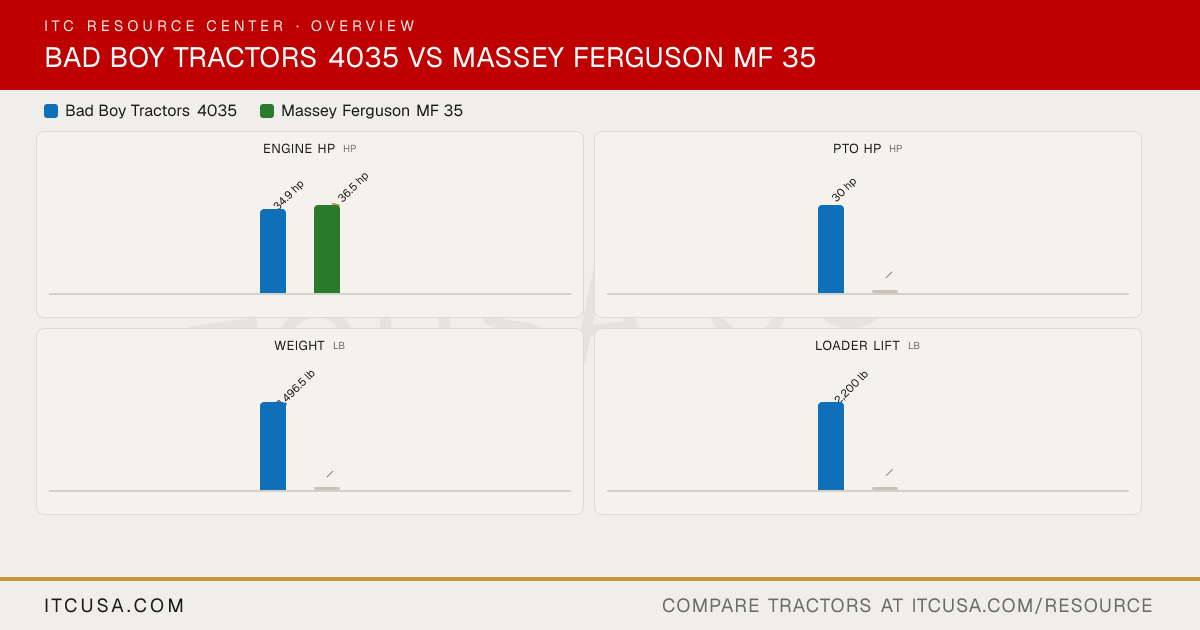

Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 4035 Massey Ferguson MF 35
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 4035 Massey Ferguson MF 35
▶ EnginePTO Power 30 hp Not Published Alternator 50 A, 12 V Not Published Air Cleaner Not Published Oil bath with pre-cleaner Engine Type 3 Cylinder, Water-Cooled, Diesel Diesel, natural aspiration Fuel System Diesel fuel Not Published Displacement 104.7 in³ 146.5 in³ No. of Cylinders 3 3 Rated Engine Speed 2600 rpm Not Published Cooling System Type Water cooled Not Published Engine Manufacturer A1700N4-BUTC_4 Simpson Engine Power (Gross) 34.9 hp 36.5 hp Engine Emissions Constraints EPA Final Tier4 Not Published ▶ WeightTractor Weight (Base) 3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL — Weight with ROPS and Loader 3163 lbs Not Applicable Weight with Cab and Loader 3,728 lbs Not Applicable ▶ WarrantyWarranty Length & Coverage 6-year powertrain warranty Not Published ▶ HydraulicsPump Type Not Published Not Published Steering Flow 4.4 gpm Not Applicable Implement Flow 8.2 gpm 4.2 gpm Total Hydraulic Flow 12.6 gpm (4.4+8.2) 4.2 gpm Hydraulic System Type Open Center Not Published System Operating Pressure 180 - 407.9 lbf/cm² for control valve — Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 12.6 gpm 4.2 gpm No. of Optional Remote Valves Optional (up to 2) Not Published No. of Standard Remote Valves Not Published Not Published ▶ PTO & HitchPTO Rear 540 RPM 540 rpm PTO Type Independent Not Published Lift Control Type Position Control Ferguson System Hitch Lift Capacity 3,306.9 lb 2,425 lb Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Cat 1 Category I or II Hitch Lift Capacity (at 24”) 2,425 lb Not Published ▶ Tire OptionsR3 Turf - Rear Not Published Not Published R3 Turf - Front Not Published Not Published Tire Size & Options Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20 R1 Agricultural R4 Industrial - Rear 43X16.00-20 Not Published R4 Industrial - Front 28X8.50-15 Not Published R1 Agricultural - Rear 12.4-24 6PR 12.4-28 R1 Agricultural - Front 8.0-16 4PR 6.00-16 ▶ Fluid CapacityCoolant Capacity 1.32 gal Not Published Crankcase Capacity 1.14 gal Not Published Fuel Tank Capacity 7.13 gal 9.2 gal Front Axle Fluid Capacity Not Published Not Published Transmission / Hydraulic System Capacity 9.77 u.s. gal (37 ℓ) HST Not Published ▶ Loader & AttachmentsLoader Lift Height 104 in Not Published Loader Breakout Force 3,660 lb Not Published Quick Attach Loader System SSQA Not Published Loader Lift Capacity (Full Height) 2,200 lb (at pivot pin) Not Published ▶ Transmission & DrivetrainClutch None (HST) Single dry plate No. of Speeds 3 Range 6F / 2R Transmission Type HST (3-range) Mechanical Max Travel Speed (Forward) 19.08 mph (range C) Not Published Max Travel Speed (Reverse) 19.08 mph (range C) Not Published Differential Lock & Limited Slip Options Differential lock Not Published ▶ Chassis, Steering & ControlsBrakes Wet multi-disc Dry, independent Steering Fully hydraulic power steering Mechanical Frame Type Not Published Not Published Front Axle Type Cast Iron Mechanical Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Not Published ▶ Dimensions & ManeuverabilityWheelbase 65.7 in Not Published Overall Width 56.7 in Not Published Overall Length 134.88 in. — Ground Clearance 15 in Not Published Height to Top of ROPS 96.85 in Not Published Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Overall Length with 3-Point Hitch 134.88 in Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 4035 vs Massey Ferguson MF 35: Quick Answers
Which has more horsepower, the Bad Boy Tractors 4035 or the Massey Ferguson MF 35? The Massey Ferguson MF 35 leads on engine hp at 36.5 hp hp, compared to 34.9 hp hp for the Bad Boy Tractors 4035.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Massey Ferguson MF 35? They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in). More Head-to-Heads
