Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Kubota BX23S?

The Bad Boy Tractors 4035 Cab leads on engine hp at 24.5 hp hp, compared to 23 hp hp for the Kubota BX23S.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Kubota BX23S?

The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 17.7 hp hp for the Kubota BX23S.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Kubota BX23S?

The Bad Boy Tractors 4035 Cab leads on weight at 3,496.5 lb lb, compared to 1,598.3 lb lb for the Kubota BX23S.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Kubota BX23S?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 738.5 lb lb for the Kubota BX23S.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Kubota BX23S?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 680 lb lb for the Kubota BX23S.

Bad Boy Tractors 4035 Cab vs Kubota BX23S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 8 categories to 1. Machine pages: Bad Boy Tractors 4035 Cab and Kubota BX23S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035 Cab	Kubota BX23S
Engine HP (hp)	▲ 24.5 hp	23 hp
PTO HP (hp)	▲ 39.6 hp	17.7 hp
Weight (lb)	▲ 3,496.5 lb	1,598.3 lb
Loader Lift (lb)	▲ 2,200 lb	738.5 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	680 lb
Lift Height (in)	▲ 104 in	71 in
Breakout Force (lbf)	3,660 lbf	▲ 6,258 lbf
Hydraulic Flow (gpm)	▲ 12.6 gpm	6.2 gpm
Travel Speed (mph)	▲ 18.2 mph	0 mph

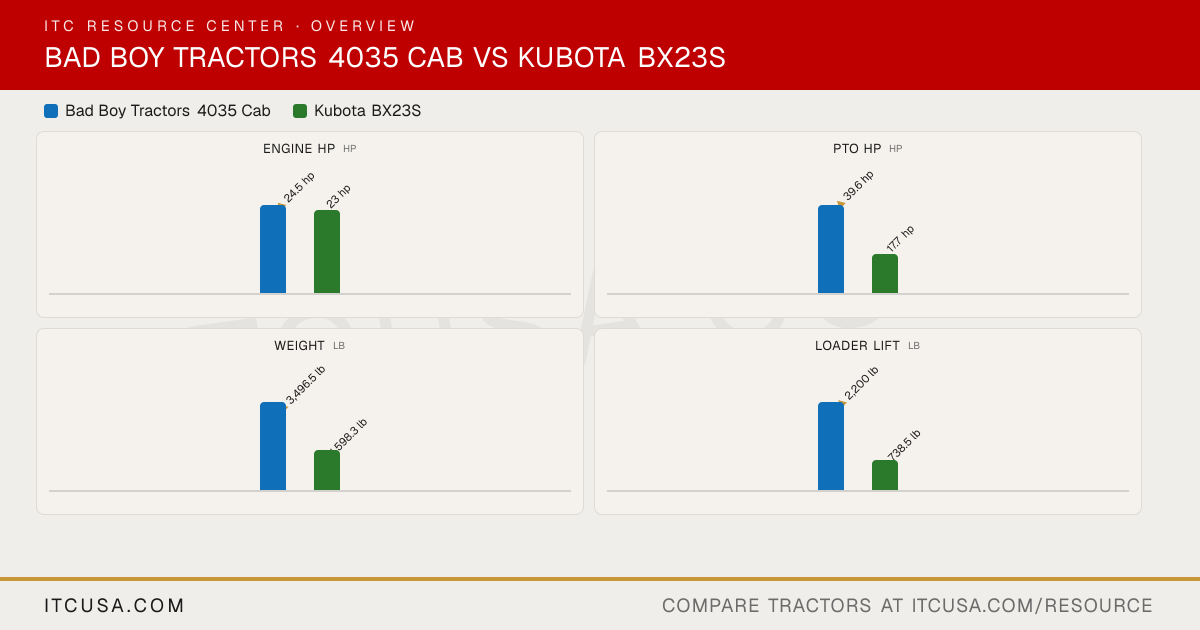

The headline numbers at a glance.

Bad Boy Tractors 4035 CabKubota BX23S

Engine HPhp

▲24.5 hp

23 hp

PTO HPhp

▲39.6 hp

17.7 hp

Weightlb

▲3,496.5 lb

1,598.3 lb

Loader Liftlb

▲2,200 lb

738.5 lb

3-Pt Lift (24 in)lb

▲2,425 lb

680 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	KubotaBX23S


PTO Power	39.6 hp	17.7 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Sheet net and replaceable treated paper element, spin on oil filter
Engine Type	Vertical, water cooled 4-cycle, diesel engine	Liquid-cooled, 4-cycle diesel
Fuel System	Diesel fuel	Diesel fuel No.2 [above -10 ℃ (14 ℉)] Diesel fuel No.1 [below -10 ℃ (14 ℉)]
Displacement	104.6 in³	54.8 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	3200 rpm
Cooling System Type	Pressurized Radiator	Liquid-cooled
Engine Manufacturer	Not specified in source	KUBOTA
Engine Power (Gross)	24.5 hp	23 hp
Engine Emissions Constraints	Not Published	Not Published

Tractor Weight (Base)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)	1,598.3 lb (1600 lbs.)
Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	3,551 lb (tractor only)	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours.

Pump Type	Not Published	Hydrostatic transmission
Steering Flow	4.4 gpm	1.0 gpm
Implement Flow	8.2 gpm	6.2 gpm (23.5 l/min.)
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	6.2 gpm
Hydraulic System Type	Not Published	Open center tandem pump gear type
System Operating Pressure	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)	12.3 MPa to 12.8 MPa
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	6.2 gpm
No. of Optional Remote Valves	Optional (Up to 2)	2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves	Not Published	2 valves

PTO Rear	540 rpm	STD 540 rpm
PTO Type	Independent	Live independent PTO (with hydraulic clutch)
Lift Control Type	Position control	Quarter-inching valve
Hitch Lift Capacity	3,306.9 lb	1,213 lbs.
Mid-PTO Availability	Not Published	STD (2500rpm)
Category, 3-Point Hitch	Cat 1	SAE Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	680 lb

R3 Turf - Rear	Not Published	26×12-12
R3 Turf - Front	Not Published	18×8.5-10
Tire Size & Options	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20	Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A
R4 Industrial - Rear	43X16.00-20	26×12-12
R4 Industrial - Front	28X8.50-15	18×8.5-10
R1 Agricultural - Rear	11.2-24 8PR	Not Applicable
R1 Agricultural - Front	7-16 6PR	Not Applicable

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	0.8 gal (3.3 U.S.qts.)
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	0.9 gal (3.4 U.S.qts.)
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	6.6 gal (6.6 U.S.gals.)
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	HST: 9.77 gal	2.98 U.S. gals.

Loader Lift Height	104 in	71.0 in
Loader Breakout Force	3,660 lb	6258 N (1407 lbs) [LA340] / 5719 N (1286 lbs) [LA340S]
Quick Attach Loader System	SSQA	Kubota Swift-Tach (Quick attach)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	738.5 lb (739 lbs) [LA340] / 612.9 lb (613 lbs) [LA340S]

Clutch	None (HST)	Dry type single plate - Main clutch 9.45"
No. of Speeds	3 Range	2 Range (Low-High)
Transmission Type	HST (Hydrostatic Transmission) with range shift	Hydrostatic transmission, High-Low gear shift (2 forward, 2 reverse)
Max Travel Speed (Forward)	18.21 mph (range C)	0 mph to 8.4 mph
Max Travel Speed (Reverse)	18.21 mph	0 mph to 6.5 mph
Differential Lock & Limited Slip Options	Differential lock	Rear differential lock standard

Brakes	Wet multi-disc	Mechanical, wet disc type
Steering	Fully hydraulic power steering	Hydrostatic Power Steering
Frame Type	Not Published	Two-post foldable ROPS
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	Maximum tongue weight 550 lb.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.79 in	55.1 in (55.1 in.)
Overall Width	ROPS: 57.13 in, Cabin: 55.63 in	45.1 in (45.1 in.)
Overall Length	134.88 in	87 in (87.0 in.) w / Front guard (without 3P), 99 in (99.0 in.) w / Front guard (with 3P)
Ground Clearance	ROPS: 13.19 in, Cabin: 13.50 in	5.8 in (5.83 in.)
Height to Top of ROPS	ROPS: 104.06 in, Cabin: 88.9 in	86.2 in (86.2 in.)
Height to Top of Cab Model	86 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	7.5 feet
Overall Length with 3-Point Hitch	134.88 in	99.0 in. w/3-Pt., w/ Front guard
