Which has more horsepower, the Bad Boy Tractors 4035 Cab or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on engine hp at 24.7 hp hp, compared to 24.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the LS Tractor XJ2025H?

The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the LS Tractor XJ2025H?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,276 lb lb for the LS Tractor XJ2025H.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the LS Tractor XJ2025H?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.

Bad Boy Tractors 4035 Cab vs LS Tractor XJ2025H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Bad Boy Tractors 4035 Cab leads 6 categories to 1. Machine pages: Bad Boy Tractors 4035 Cab and LS Tractor XJ2025H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035 Cab	LS Tractor XJ2025H
Engine HP (hp)	24.5 hp	▲ 24.7 hp
PTO HP (hp)	▲ 39.6 hp	18.5 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	▲ 2,200 lb	1,276 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,058 lb
Lift Height (in)	▲ 104 in	85.7 in
Breakout Force (lbf)	▲ 3,660 lbf	1,687 lbf
Hydraulic Flow (gpm)	▲ 12.6 gpm	8.5 gpm
Travel Speed (mph)	18.2 mph	—

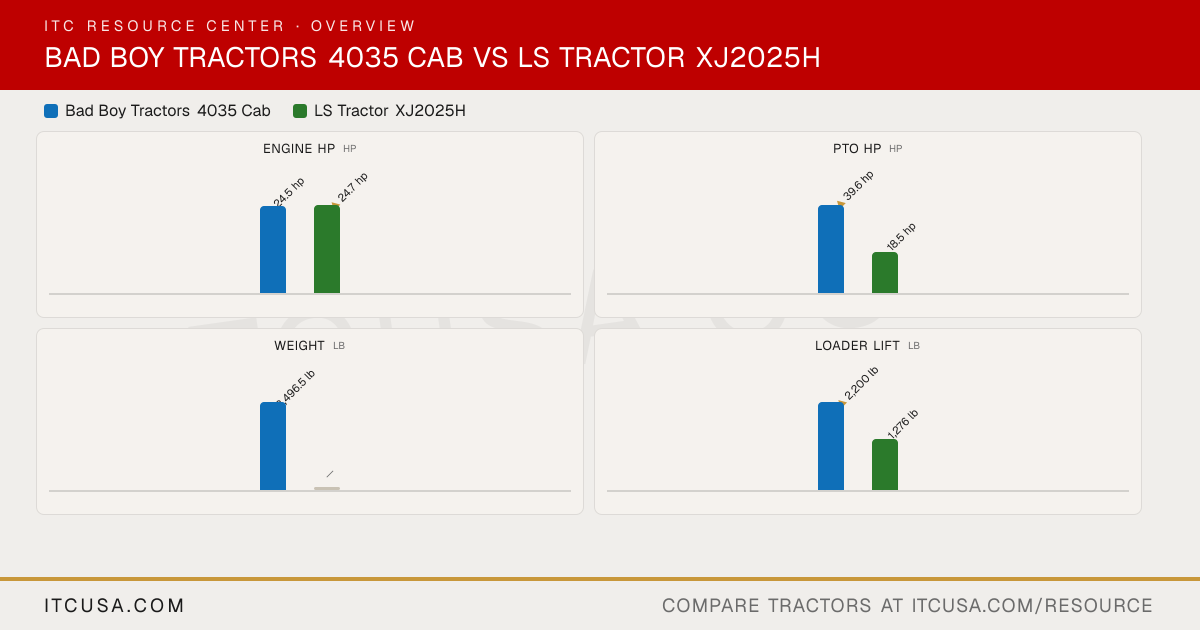

The headline numbers at a glance.

Bad Boy Tractors 4035 CabLS Tractor XJ2025H

Engine HPhp

24.5 hp

▲24.7 hp

PTO HPhp

▲39.6 hp

18.5 hp

Weightlb

3,496.5 lb

—

Loader Liftlb

▲2,200 lb

1,276 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	LS TractorXJ2025H


PTO Power	39.6 hp	18.5 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Not Published	Dry
Engine Type	Vertical, water cooled 4-cycle, diesel engine	3-cylinder, Indirect-injection (swirl chamber), Water-cooled
Fuel System	Diesel fuel	Indirect injection (in-line pump)
Displacement	104.6 in³	80.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2500 rpm
Cooling System Type	Pressurized Radiator	Water-cooled
Engine Manufacturer	Not specified in source	Mitsubishi
Engine Power (Gross)	24.5 hp	24.7 hp
Engine Emissions Constraints	Not Published	Tier 4

Tractor Weight (Base)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	3,551 lb (tractor only)	Not Published

Warranty Length & Coverage	6-year powertrain warranty	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Not Published	Transmission drive pump
Steering Flow	4.4 gpm	2.6 gpm
Implement Flow	8.2 gpm	5.9 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	8.5 gpm
Hydraulic System Type	Not Published	Not Published
System Operating Pressure	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	8.5 gpm
No. of Optional Remote Valves	Optional (Up to 2)	1 pair (2 outlets; optional)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Electro-hydraulic rear PTO / mid-PTO
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,306.9 lb	1,433 lb
Mid-PTO Availability	Not Published	Standard (2000 rpm)
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1,058 lb

R3 Turf - Rear	Not Published	320/65-16.5
R3 Turf - Front	Not Published	23X8.50-12
Tire Size & Options	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00-20	305/70-16.5 (6PR)
R4 Industrial - Front	28X8.50-15	23X8.50-12 (4PR)
R1 Agricultural - Rear	11.2-24 8PR	255/75-15.3
R1 Agricultural - Front	7-16 6PR	23X10.50-12

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	1.0 gal
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	1.1 gal
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	6.6 gal
Front Axle Fluid Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	HST: 9.77 gal	5.3 gal

Loader Lift Height	104 in	85.7 in
Loader Breakout Force	3,660 lb	1,687 lb
Quick Attach Loader System	SSQA	LL2102: Quick-attach front end loader
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,276 lb

Clutch	None (HST)	Not Applicable
No. of Speeds	3 Range	2 ranges
Transmission Type	HST (Hydrostatic Transmission) with range shift	Hydrostatic Drive
Max Travel Speed (Forward)	18.21 mph (range C)	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Mechanical differential lock (pedal)

Brakes	Wet multi-disc	Wet, multi-disc
Steering	Fully hydraulic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Front wheel mechanical assist (4WD)
Drawbar Capacity	Not Published	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.79 in	59 in
Overall Width	ROPS: 57.13 in, Cabin: 55.63 in	44.9 in
Overall Length	134.88 in	—
Ground Clearance	ROPS: 13.19 in, Cabin: 13.50 in	Not Published
Height to Top of ROPS	ROPS: 104.06 in, Cabin: 88.9 in	84.5 in
Height to Top of Cab Model	86 in	Not Published
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	103 in
