Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Massey Ferguson MF 1520?

The Bad Boy Tractors 4035 Cab leads on engine hp at 24.5 hp hp, compared to 20 hp hp for the Massey Ferguson MF 1520.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Massey Ferguson MF 1520?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,323 lb lb for the Massey Ferguson MF 1520.

Bad Boy Tractors 4035 Cab vs Massey Ferguson MF 1520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Bad Boy Tractors 4035 Cab leads 3 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and Massey Ferguson MF 1520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035 Cab	Massey Ferguson MF 1520
Engine HP (hp)	▲ 24.5 hp	20 hp
PTO HP (hp)	39.6 hp	—
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	2,200 lb	—
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,323 lb
Lift Height (in)	104 in	—
Breakout Force (lbf)	3,660 lbf	—
Hydraulic Flow (gpm)	▲ 12.6 gpm	8.7 gpm
Travel Speed (mph)	18.2 mph	—

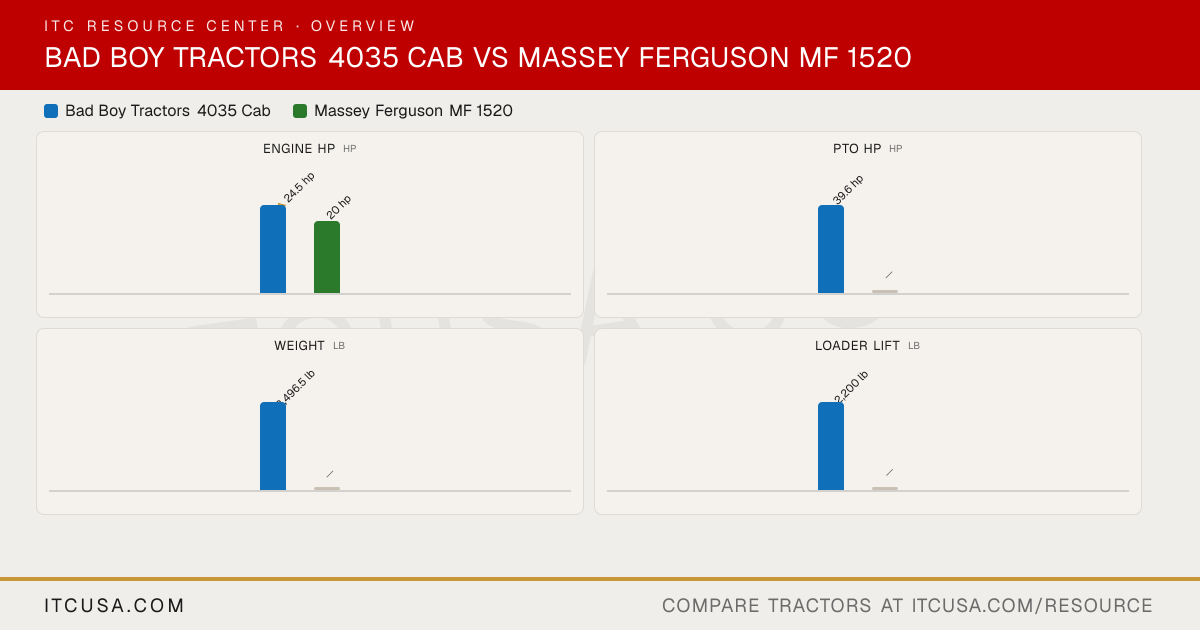

The headline numbers at a glance.

Bad Boy Tractors 4035 CabMassey Ferguson MF 1520

Engine HPhp

▲24.5 hp

20 hp

PTO HPhp

39.6 hp

—

Weightlb

3,496.5 lb

—

Loader Liftlb

2,200 lb

—

3-Pt Lift (24 in)lb

▲2,425 lb

1,323 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Massey FergusonMF 1520


PTO Power	39.6 hp	Not Published
Alternator	50 A, 12 V	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Vertical, water cooled 4-cycle, diesel engine	3-cylinder diesel
Fuel System	Diesel fuel	Not Published
Displacement	104.6 in³	68.5 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2500 rpm
Cooling System Type	Pressurized Radiator	Not Published
Engine Manufacturer	Not specified in source	Massey Ferguson (AGCO)
Engine Power (Gross)	24.5 hp	20 hp
Engine Emissions Constraints	Not Published	Not Published

Tractor Weight (Base)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	3,551 lb (tractor only)	Not Published

Warranty Length & Coverage	6-year powertrain warranty	Not Published

Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	3.2 gpm
Implement Flow	8.2 gpm	5.5 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	8.7 gpm
Hydraulic System Type	Not Published	Not Published
System Operating Pressure	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	8.7 gpm
No. of Optional Remote Valves	Optional (Up to 2)	Not Published
No. of Standard Remote Valves	Not Published	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Sliding gear
Lift Control Type	Position control	Not Published
Hitch Lift Capacity	3,306.9 lb	1,323 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published

R3 Turf - Rear	Not Published	315X75D-15
R3 Turf - Front	Not Published	24X8.5-12
Tire Size & Options	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural, R3 Turf
R4 Industrial - Rear	43X16.00-20	Not Applicable
R4 Industrial - Front	28X8.50-15	Not Applicable
R1 Agricultural - Rear	11.2-24 8PR	9.5-16
R1 Agricultural - Front	7-16 6PR	6.0-12

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	Not Published
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	Not Published
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	7.4 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	HST: 9.77 gal	Not Published

Loader Lift Height	104 in	Not Published
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	Not Published

Clutch	None (HST)	Not Published
No. of Speeds	3 Range	8F / 8R
Transmission Type	HST (Hydrostatic Transmission) with range shift	Mechanical
Max Travel Speed (Forward)	18.21 mph (range C)	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Rear differential lock

Brakes	Wet multi-disc	Not Published
Steering	Fully hydraulic power steering	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.79 in	61.4 in
Overall Width	ROPS: 57.13 in, Cabin: 55.63 in	43.3 in
Overall Length	134.88 in	—
Ground Clearance	ROPS: 13.19 in, Cabin: 13.50 in	9.6 in
Height to Top of ROPS	ROPS: 104.06 in, Cabin: 88.9 in	79.1 in
Height to Top of Cab Model	86 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	112.8 in
