Bad Boy Tractors 4035 Cab vs TYM T264

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 9 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and TYM T264.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

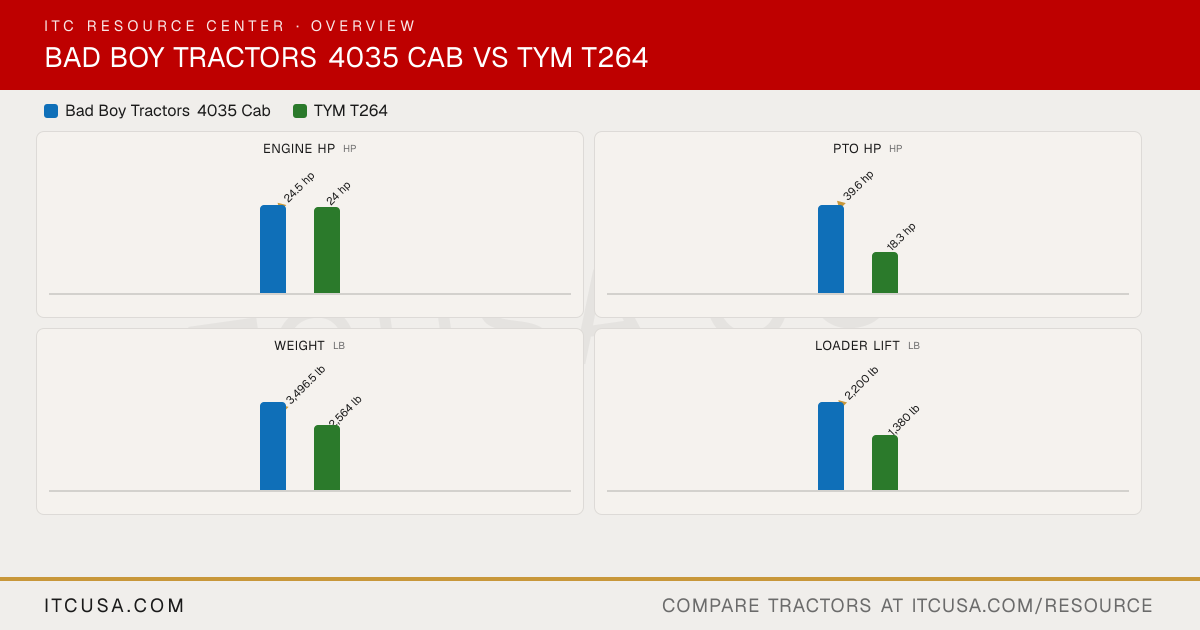

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	TYMT264

▶Engine
PTO Power	39.6 hp	18.3 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Not Published	Single dry
Engine Type	Vertical, water cooled 4-cycle, diesel engine	3-cylinder, naturally aspirated diesel
Fuel System	Diesel fuel	IDI
Displacement	104.6 in³	71.7 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2800 rpm
Cooling System Type	Pressurized Radiator	Not Published
Engine Manufacturer	Not specified in source	TYM
Engine Power (Gross)	24.5 hp	24 hp
Engine Emissions Constraints	Not Published	Not Published
▶Weight
Tractor Weight (Base)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Applicable	2,564 lb
Weight with Cab and Loader	3,551 lb (tractor only)	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Steering Flow	4.4 gpm	2.7 gpm
Implement Flow	8.2 gpm	4.4 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	7.1 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	7.1 gpm
No. of Optional Remote Valves	Optional (Up to 2)	1
No. of Standard Remote Valves	Not Published	0
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,306.9 lb	1,534 lb
Mid-PTO Availability	Not Published	Available
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1,102 lb
▶Tire Options
R3 Turf - Rear	Not Published	Multi-Trac CS 33x12.50-16.5 NHS TL 4PR
R3 Turf - Front	Not Published	Turf Master 23x8.50-12 NHS TL 4PR
Tire Size & Options	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20	R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00-20	Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Front	28X8.50-15	Trac Chief 23x8.50-12 NHS TL 4PR
R1 Agricultural - Rear	11.2-24 8PR	Not Published
R1 Agricultural - Front	7-16 6PR	Not Published
▶Fluid Capacity
Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	5.9 qt
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	4.5 qt
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	6.6 gal
Front Axle Fluid Capacity	Not Published	4.7 qt
Transmission / Hydraulic System Capacity	HST: 9.77 gal	4.7 gal
▶Loader & Attachments
Loader Lift Height	104 in	86.9 in
Loader Breakout Force	3,660 lb	2,059 lb
Quick Attach Loader System	SSQA	TX2000: Quick attachment assembly
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,380 lb
▶Transmission & Drivetrain
Clutch	None (HST)	Dry single plate
No. of Speeds	3 Range	Infinite 2-Range
Transmission Type	HST (Hydrostatic Transmission) with range shift	HST
Max Travel Speed (Forward)	18.21 mph (range C)	12.9 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet multi-disc	Wet disc
Steering	Fully hydraulic power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.79 in	58.3 in
Overall Width	ROPS: 57.13 in, Cabin: 55.63 in	52.8 in
Overall Length	134.88 in	—
Ground Clearance	ROPS: 13.19 in, Cabin: 13.50 in	7.7 in
Height to Top of ROPS	ROPS: 104.06 in, Cabin: 88.9 in	89.8 in
Height to Top of Cab Model	86 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	105.5 in
Overall Length with 3-Point Hitch	134.88 in	107.8 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	TYM T234 / T264 Brush Guard $399.99 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T264 / T25 Tractor Step $145.00

Bad Boy Tractors 4035 Cab vs TYM T264: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the TYM T264?

The Bad Boy Tractors 4035 Cab leads on engine hp at 24.5 hp hp, compared to 24 hp hp for the TYM T264.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the TYM T264?

The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 18.3 hp hp for the TYM T264.

Which is heavier, the Bad Boy Tractors 4035 Cab or the TYM T264?

The Bad Boy Tractors 4035 Cab leads on weight at 3,496.5 lb lb, compared to 2,564 lb lb for the TYM T264.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the TYM T264?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,380 lb lb for the TYM T264.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the TYM T264?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,102 lb lb for the TYM T264.
