Bad Boy Tractors 5045 vs New Holland Workmaster 40

Across 9 measurable specs, the Bad Boy Tractors 5045 leads 9 categories to 0. Machine pages: Bad Boy Tractors 5045 and New Holland Workmaster 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

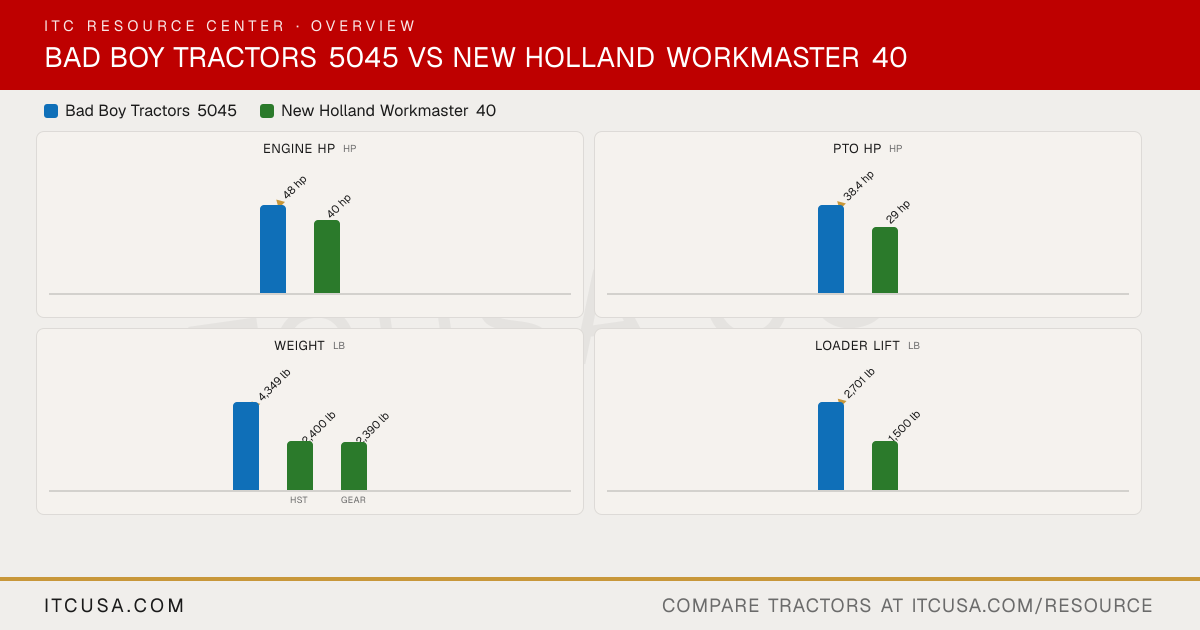

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045	New HollandWorkmaster 40

▶Engine
PTO Power	38.4 hp	29 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dry Element	Dual element dry air cleaner
Engine Type	4 Cylinder Diesel	Turbocharged diesel
Fuel System	Not Published	High pressure common rail (ECU controlled timing)
Displacement	139.5 in³	0.1 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid Cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	A2300N3, A2300T11, A2300N2, A2300T3	LS Mtron
Engine Power (Gross)	48 hp	40 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final
▶Weight
Tractor Weight (Base)	4,349 lbs Cabin; 3,831-3,836 lbs (1,738-3,836 lb) ROPS	—
Weight with ROPS and Loader	5045S: 3,831 lb (tractor only); 5045H: 3,836 lb (tractor only)	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Gear
Steering Flow	5.0 gpm	4.8 gpm
Implement Flow	5045S: 11.4 gpm; 5045H: 10.7 gpm	8.2 gpm
Total Hydraulic Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	13.0 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5045S: 16.4 gpm; 5045H: 15.7 gpm	13.0 gpm
No. of Optional Remote Valves	Not Published	1 or 2
No. of Standard Remote Valves	Not Published	0
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm (6-spline)
PTO Type	Independent	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	3,306 lb	1,808 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
▶Tire Options
R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	25X8.50-14
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	43X16-20
R4 Industrial - Front	Not Published	25X8.50-14
R1 Agricultural - Rear	13.6-26	11.2-24
R1 Agricultural - Front	9.5-16	7.0-14
▶Fluid Capacity
Coolant Capacity	1.56 gal Cabin; 2.08 gal ROPS	7.5 qt
Crankcase Capacity	1.20 gal	5.8 qt
Fuel Tank Capacity	11.8 gal	7.4 gal
Front Axle Fluid Capacity	1.90 gal	6.9 qt
Transmission / Hydraulic System Capacity	10.04 gal	8.5 gal
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	91.5 in (to bucket pivot pin)
Loader Breakout Force	3,660 lb	2,700 lb (bucket pivot pin)
Quick Attach Loader System	SSQA	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	2,701 lb	1,500 lb (bucket pivot pin, max height)
▶Transmission & Drivetrain
Clutch	Not Published	HST: Not Applicable; Gear: Dry disc, 9.4 in
No. of Speeds	5045S: 16F/16R; 5045H: 4-range	HST: Infinite (3-range); Gear: 12F/12R
Transmission Type	Synchromesh / HST	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
Max Travel Speed (Forward)	16.0 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	Not Published	HST: 14.96 mph; Gear: 13.63 mph
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet disc
Steering	Power steering	Power steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	69 in
Overall Width	64.9 in.	54 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	13 in
Height to Top of ROPS	97.0 in. Cabin; 98.4 in. ROPS	89 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	127.4 in	134 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 5045 vs New Holland Workmaster 40: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 or the New Holland Workmaster 40?

The Bad Boy Tractors 5045 leads on engine hp at 48 hp hp, compared to 40 hp hp for the New Holland Workmaster 40.

Which has more PTO horsepower, the Bad Boy Tractors 5045 or the New Holland Workmaster 40?

The Bad Boy Tractors 5045 leads on pto hp at 38.4 hp hp, compared to 29 hp hp for the New Holland Workmaster 40.

Which is heavier, the Bad Boy Tractors 5045 or the New Holland Workmaster 40?

The Bad Boy Tractors 5045 leads on weight at 4,349 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 40.

Which has more loader lift capacity, the Bad Boy Tractors 5045 or the New Holland Workmaster 40?

The Bad Boy Tractors 5045 leads on loader lift at 2,701 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 40.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 or the New Holland Workmaster 40?

The Bad Boy Tractors 5045 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 40.
