Bad Boy Tractors 4035 Cab vs New Holland Workmaster 40

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 7 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and New Holland Workmaster 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

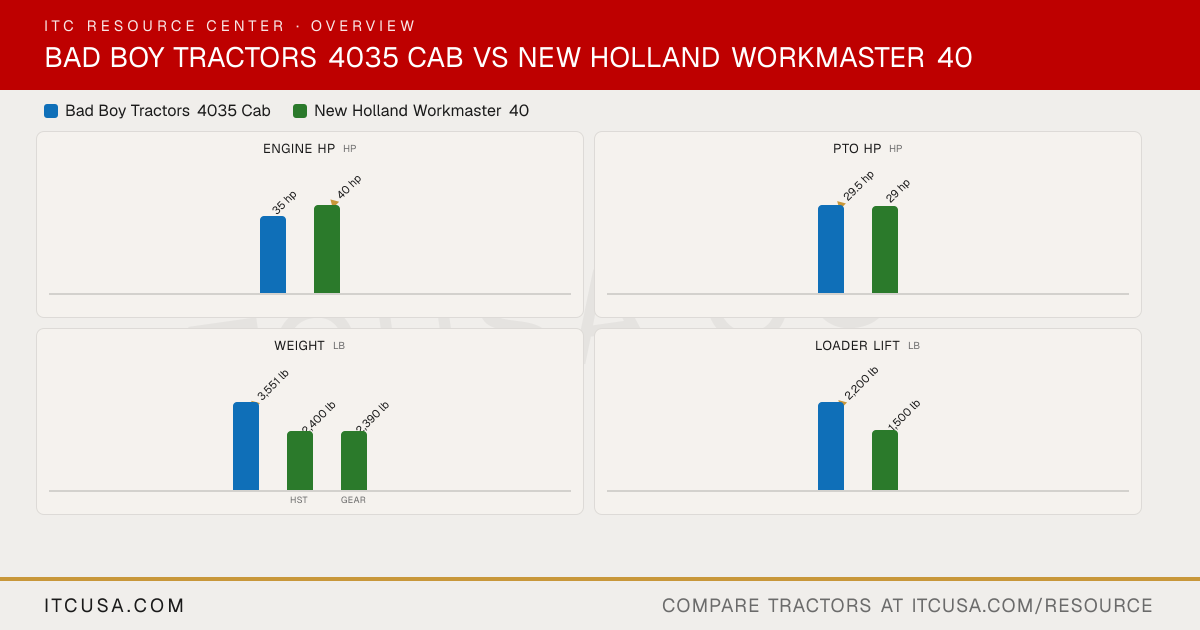

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	New HollandWorkmaster 40

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N4-BUTC_4	LS Mtron L3C19-T
Engine Type	Vertical, 4-stroke, water-cooled diesel	Turbocharged diesel
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	29.5 hp	29 hp
Engine Emissions Constraints	Not Published	Tier 4B Final
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Not Published	Dual element dry air cleaner
Fuel System	Not Published	High pressure common rail (ECU controlled timing)
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.4 gpm	4.8 gpm
Total Hydraulic Flow	12.6 gpm	13.0 gpm
Overall Hydraulic Pump Flow	12.6 gpm	13.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 2	1 or 2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.4 gal
Coolant Capacity	1.32 gal	7.5 qt
Crankcase Capacity	1.14 gal	5.8 qt
Transmission / Hydraulic System Capacity	9.77 gal	8.5 gal
Front Axle Fluid Capacity	1.69 gal	6.9 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm (6-spline)
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
No. of Speeds	3 range (HST)	HST: Infinite (3-range); Gear: 12F/12R
Max Travel Speed (Forward)	18.21 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	18.21 mph	HST: 14.96 mph; Gear: 13.63 mph
Clutch	None (HST)	HST: Not Applicable; Gear: Dry disc, 9.4 in
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	4WD (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	134 in
Overall Width	56.3 in	54 in
Wheelbase	65.7 in	69 in
Ground Clearance	13.19 in	13 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	89 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	Not Published
Weight with ROPS and Loader	Not Published	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16	7.0-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	Not Published	25X8.50-14
R3 Turf - Rear	Not Published	41X14.00-20
R4 Industrial - Front	28x8.50-15	25X8.50-14
R4 Industrial - Rear	43x16.00-20	43X16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Model	BBL400	Not Published
Loader Lift Height	104 in	91.5 in (to bucket pivot pin)
Loader Lift Capacity (Full Height)	2,200 lb	1,500 lb (bucket pivot pin, max height)
Loader Breakout Force	3,660 lb	2,700 lb (bucket pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 4035 Cab vs New Holland Workmaster 40: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40?

The New Holland Workmaster 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 29 hp hp for the New Holland Workmaster 40.

Which is heavier, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 40.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 40.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 40.
