Bad Boy Tractors 5055 vs Bobcat CT4545

Across 6 measurable specs, this matchup is a dead heat: 3 categories to the Bad Boy Tractors 5055, 3 to the Bobcat CT4545. Machine pages: Bad Boy Tractors 5055 and Bobcat CT4545.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	BobcatCT4545

▶Engine
PTO Power	44 hp	32.8 hp
Alternator	70 A	Not Published
Air Cleaner	Dry Element	Not Published
Engine Type	4-cylinder, water-cooled diesel	Diesel
Fuel System	Diesel	Not Published
Displacement	139.5 in³	109.8 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2750 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	Not Published
Engine Power (Gross)	48 hp	44.9 hp
Engine Emissions Constraints	DPF / DOC	Not Published
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Applicable
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	24 months / 1,500 hours (whichever occurs first)
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Not Published
Steering Flow	5.0 gpm	6.9 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	9.6 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	16.5 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	16.5 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	1 pair (optional)
No. of Standard Remote Valves	Not Published	1 pair (standard)
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Hydraulic Position Control System
Hitch Lift Capacity	3,306 lb	2,716 lb
Mid-PTO Availability	Not Published	Optional: 2,119 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	2,716 lb
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
▶Fluid Capacity
Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Fuel Tank Capacity	11.8 gal	11.9 gal
Front Axle Fluid Capacity	1.90 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	Not Published
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	2,701 lb	1,858 lb
▶Transmission & Drivetrain
Clutch	Not Published	Not Applicable
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	Infinite (3-range HST)
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	3-Range HST
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	16.3 mph (26.2 km/hr)
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	15.9 mph (25.5 km/hr)
Differential Lock & Limited Slip Options	Differential lock	Std
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet multi-disc
Steering	Power steering	Hydrostatic power steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	71.2 in
Overall Width	64.9 in.	70.3 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	15.3 in
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	Not Applicable
Height to Top of Cab Model	Not Applicable	94.3 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	116.1 in
Overall Length with 3-Point Hitch	127.4 in	125.5 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

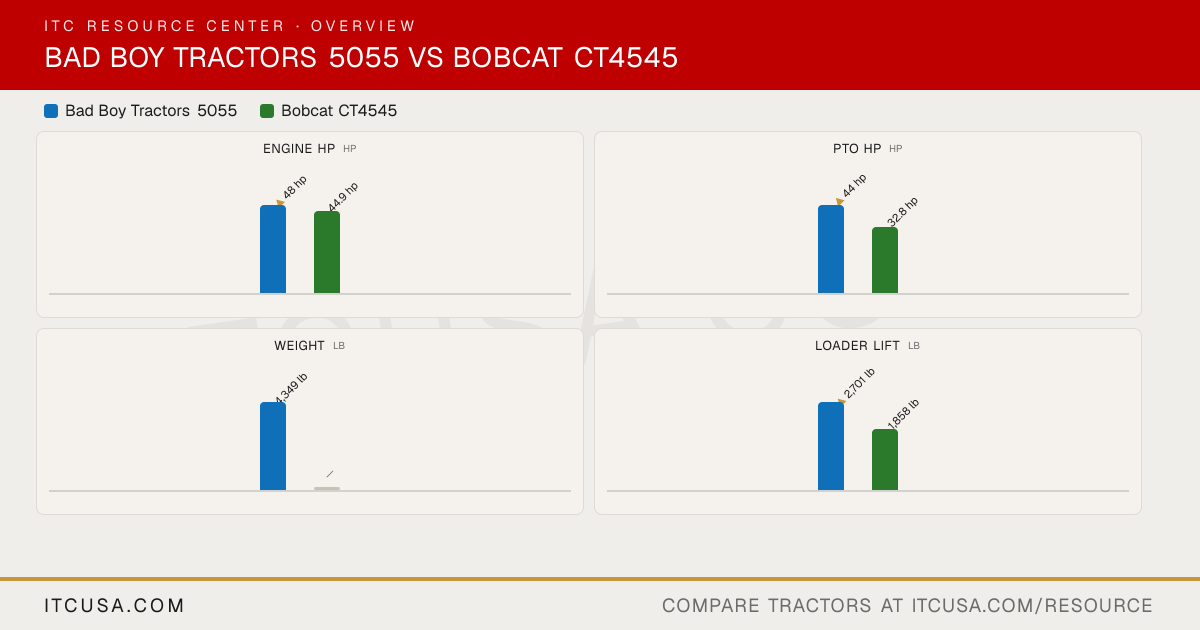

Bad Boy Tractors 5055 vs Bobcat CT4545: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the Bobcat CT4545?

The Bad Boy Tractors 5055 leads on engine hp at 48 hp hp, compared to 44.9 hp hp for the Bobcat CT4545.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Bobcat CT4545?

The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 32.8 hp hp for the Bobcat CT4545.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Bobcat CT4545?

The Bad Boy Tractors 5055 leads on loader lift at 2,701 lb lb, compared to 1,858 lb lb for the Bobcat CT4545.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Bobcat CT4545?

The Bobcat CT4545 leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
