Bad Boy Tractors 5055 vs Case IH Farmall 55C Gear Cab

Across 9 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 5055, 4 to the Case IH Farmall 55C Gear Cab, 1 tied. Machine pages: Bad Boy Tractors 5055 and Case IH Farmall 55C Gear Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

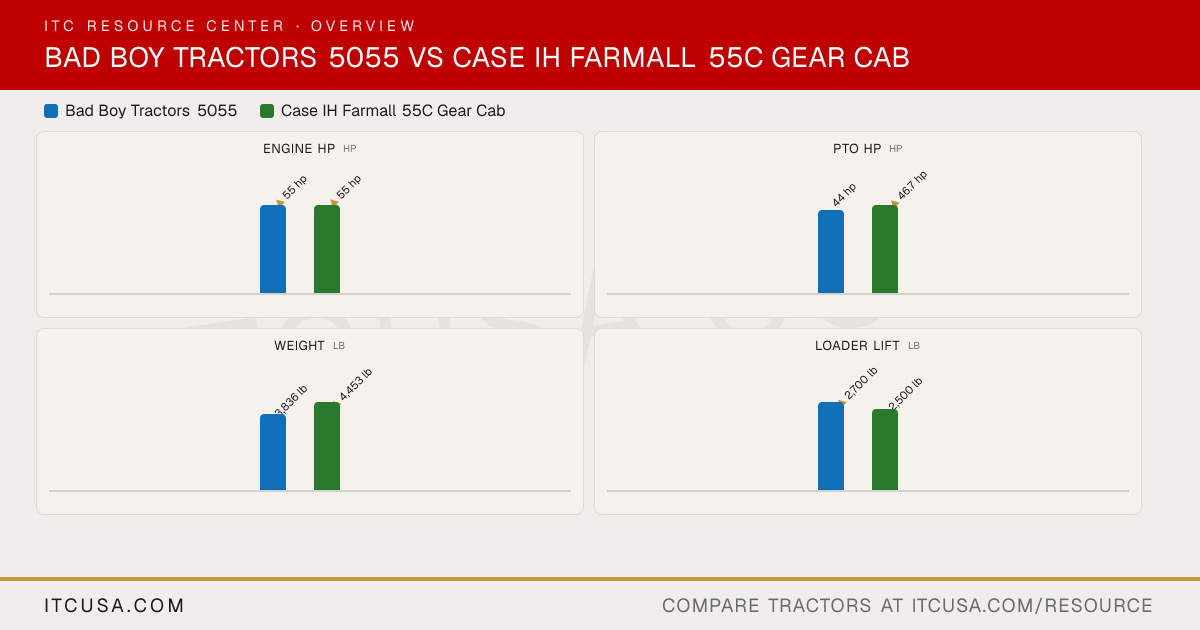

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	Case IHFarmall 55C Gear Cab

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A2300T3	L3C19-T
Engine Type	4 cylinder water-cooled diesel, turbocharged	Diesel, 3-cylinder, turbocharged
No. of Cylinders	4	3
Displacement	139.5 in³	116 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	55 hp	55 hp
PTO Power	44 hp	46.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Replaceable dry element
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	70 A
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	10.7 gpm	8.2 gpm
Steering Flow	5 gpm	4.2 gpm
Total Hydraulic Flow	15.7 gpm	Not Published
Overall Hydraulic Pump Flow	15.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 4 ports	2
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	12.4 gal
Coolant Capacity	2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.90 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent rear PTO, electro-hydraulic engagement
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	3,306 lb	2,756 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,469 lb
Lift Control Type	Position control	Mechanical draft control (MDC)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	16 x 16 mechanical shuttle with synchro shift
No. of Speeds	4 range (HST)	16 forward, 16 reverse
Max Travel Speed (Forward)	19.5 mph	16.9 mph
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	dry clutch
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Heated leather seat	Adjustable suspension seat
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	128.1 in
Overall Width	64.9 in	69.1 in
Wheelbase	71.1 in	73.2 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	Not Published
Height to Top of ROPS	98.4 in	97.1 in
Height to Top of ROPS (folded)	Not Published	78.6 in
Height to Top of Cab Model	97.0 in	93.3 in
▶Weight
Tractor Weight (Base)	3,836 lb	4,453 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	9.5-16	9.5-16
R1 Agricultural - Rear	13.6-26	13.6-24
R3 Turf - Front	Not Published	28x8.50-15
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	Not Published	12-16.5
R4 Industrial - Rear	Not Published	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quick-Attach faceplate; quick-connect loader mounting (L360A)
Loader Model	BBL500	L360A
Loader Lift Height	106.6 in	112 in
Loader Lift Capacity (Full Height)	2,700 lb	2,500 lb
Loader Breakout Force	3,660 lb	3,114 lbf
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

Bad Boy Tractors 5055 vs Case IH Farmall 55C Gear Cab: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the Case IH Farmall 55C Gear Cab?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Case IH Farmall 55C Gear Cab?

The Case IH Farmall 55C Gear Cab leads on pto hp at 46.7 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.

Which is heavier, the Bad Boy Tractors 5055 or the Case IH Farmall 55C Gear Cab?

The Case IH Farmall 55C Gear Cab leads on weight at 4,453 lb lb, compared to 3,836 lb lb for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Case IH Farmall 55C Gear Cab?

The Bad Boy Tractors 5055 leads on loader lift at 2,700 lb lb, compared to 2,500 lb lb for the Case IH Farmall 55C Gear Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Case IH Farmall 55C Gear Cab?

The Case IH Farmall 55C Gear Cab leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
