Bad Boy Tractors 5055 vs Case IH Farmall Compact 45C

Across 7 measurable specs, the Bad Boy Tractors 5055 leads 5 categories to 2. Machine pages: Bad Boy Tractors 5055 and Case IH Farmall Compact 45C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

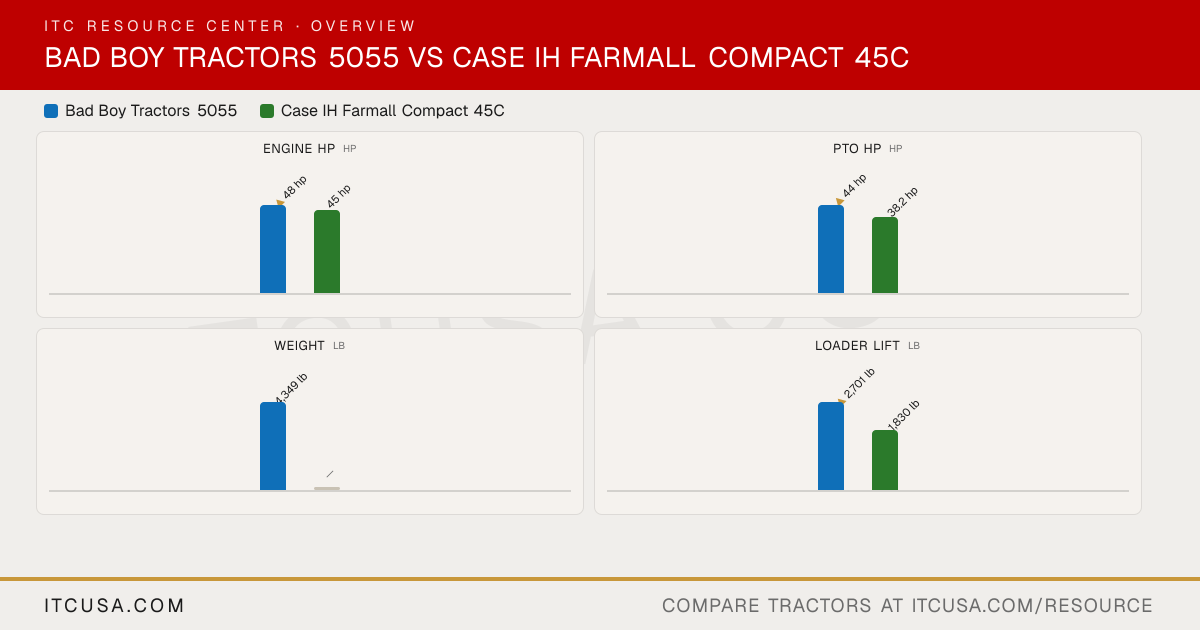

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	Case IHFarmall Compact 45C

▶Engine
PTO Power	44 hp	38.2 hp
Alternator	70 A	Not Published
Air Cleaner	Dry Element	Not Published
Engine Type	4-cylinder, water-cooled diesel	Diesel, naturally aspirated
Fuel System	Diesel	Not Published
Displacement	139.5 in³	115.9 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	Not Published
Engine Power (Gross)	48 hp	45 hp
Engine Emissions Constraints	DPF / DOC	Tier 4
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Not Published
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Not Published
Steering Flow	5.0 gpm	Not Published
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	8.2 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	Not Published
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	Not Published
No. of Optional Remote Valves	Up to 2 rear SCVs	Non-cab: 2
No. of Standard Remote Valves	Not Published	Cab: 2; Non-cab: 1
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Not Published
Lift Control Type	Not Published	Mechanical Draft Control (MDC)
Hitch Lift Capacity	3,306 lb	2,756 lb @ 24 in behind pin
Mid-PTO Availability	Not Published	Optional mid-PTO, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	2,756 lb @ 24 in behind pin
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
▶Fluid Capacity
Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Fuel Tank Capacity	11.8 gal	12.4 gal (Cab); 10.5 gal (Non-cab)
Front Axle Fluid Capacity	1.90 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	112 in
Loader Breakout Force	3,660 lb	3,114 lb
Quick Attach Loader System	SSQA	L360A
Loader Lift Capacity (Full Height)	2,701 lb	1,830 lb
▶Transmission & Drivetrain
Clutch	Not Published	Dry clutch
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	16F/16R (mechanical shuttle); optional 3-range hydrostatic
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	16x16 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	Not Published
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	Not Published
Differential Lock & Limited Slip Options	Differential lock	Mechanical differential lock
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Not Published
Steering	Power steering	Not Published
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	MFD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	73.2 in
Overall Width	64.9 in.	Not Published
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	Not Published
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	97.1 in
Height to Top of Cab Model	Not Applicable	93.3 in
Height to Top of ROPS (folded)	Not Published	78.6 in
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	127.4 in	128.1 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 5055 vs Case IH Farmall Compact 45C: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the Case IH Farmall Compact 45C?

The Bad Boy Tractors 5055 leads on engine hp at 48 hp hp, compared to 45 hp hp for the Case IH Farmall Compact 45C.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Case IH Farmall Compact 45C?

The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 38.2 hp hp for the Case IH Farmall Compact 45C.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Case IH Farmall Compact 45C?

The Bad Boy Tractors 5055 leads on loader lift at 2,701 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 45C.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Case IH Farmall Compact 45C?

The Case IH Farmall Compact 45C leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
