Bad Boy Tractors 5055 vs John Deere 5060E

Across 9 measurable specs, the John Deere 5060E leads 7 categories to 2. Machine pages: Bad Boy Tractors 5055 and John Deere 5060E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	John Deere5060E

▶Engine
Engine Manufacturer	TYM	John Deere
Engine Model	A2300T3	Not Published
Engine Type	4 cylinder water-cooled diesel, turbocharged	Diesel, turbocharged
No. of Cylinders	4	3
Displacement	139.5 in³	179 in³
Rated Engine Speed	2600 rpm	2100 rpm
Engine Power (Gross)	55 hp	60 hp
PTO Power	44 hp	OOS: 45.6 hp; Cab: 42.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry type with safety element
Fuel System	Not Published	Electronically controlled, high-pressure common rail
Alternator	50 A, 12 V	OOS: 70 A; Cab: 110 A
▶Hydraulics
Pump Type	Not Published	Tandem gear pump (implement + steering)
Implement Flow	10.7 gpm	11.4 gpm
Steering Flow	5 gpm	6.8 gpm
Total Hydraulic Flow	15.7 gpm	18.2 gpm
Overall Hydraulic Pump Flow	15.7 gpm	18.2 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	11.4 gpm at a single rear SCV
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 4 ports	1
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	OOS: 19.6 gal; Cab: 21.6 gal
Coolant Capacity	2.08 gal	Open operator station: 2.85 gal; Cab: 3.08 gal
Crankcase Capacity	1.20 gal	9.0 qt (with filter)
Transmission / Hydraulic System Capacity	10.04 gal	8.36 gal (9x3); 9.46 gal (12x12)
Front Axle Fluid Capacity	1.90 gal	DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 / 540E rpm	540 rpm (SyncShuttle); 540/540E rpm (PowrReverser)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category 2, convertible to 1
Hitch Lift Capacity	3,306 lb	3,968 lb
Hitch Lift Capacity (at 24”)	2,425 lb	3,192 lb
Lift Control Type	Position control	Position control, draft control, adjustable rate of drop
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	SyncShuttle (standard); PowrReverser (optional)
No. of Speeds	4 range (HST)	9F/3R (SyncShuttle); 12F/12R (PowrReverser)
Max Travel Speed (Forward)	19.5 mph	15.5 mph (SyncShuttle); 20.5 mph (PowrReverser)
Max Travel Speed (Reverse)	19.5 mph	14.2 mph (SyncShuttle); 22.3 mph (PowrReverser)
Clutch	None (HST)	Wet traction clutch (PowrReverser)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical, rear
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Hydraulically actuated wet disk brakes, self-equalizing and self-adjusting
Seat Suspension & Adjustability	Heated leather seat	Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment
Front Axle Type	Selectable 4WD	2WD or MFWD
Front Axle Rating	Not Published	Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire)
Drawbar Capacity	Not Published	1,675 lb (fully extended); 2,470 lb (short position)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	143.3 in
Overall Width	64.9 in	Not Published
Wheelbase	71.1 in	80.7 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	137.8 in (2WD); 183.1 in (4WD); 153.5 in (4WD, Carraro axle)
Height to Top of ROPS	98.4 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	Not Published
▶Weight
Tractor Weight (Base)	3,836 lb	5,445 to 6,702 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 Ag / R3 Turf / R4 Industrial / Snow
R1 Agricultural - Front	9.5-16	11L-15
R1 Agricultural - Rear	13.6-26	14.9-28
R3 Turf - Front	Not Published	33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium)
R3 Turf - Rear	Not Published	41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium)
R4 Industrial - Front	Not Published	27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4
R4 Industrial - Rear	Not Published	17.5L-24 8PR R4; 19.5L-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4
▶Loader & Attachments
Quick Attach Loader System	SSQA	512 or 520M
Loader Model	BBL500	512 or 520M
Loader Lift Height	106.6 in	512: 113 in; 520M: 132 in
Loader Lift Capacity (Full Height)	2,700 lb	512: 2,453 lb; 520M: 3,523 lb
Loader Breakout Force	3,660 lb	512: 4,781 lb; 520M: 4,641 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

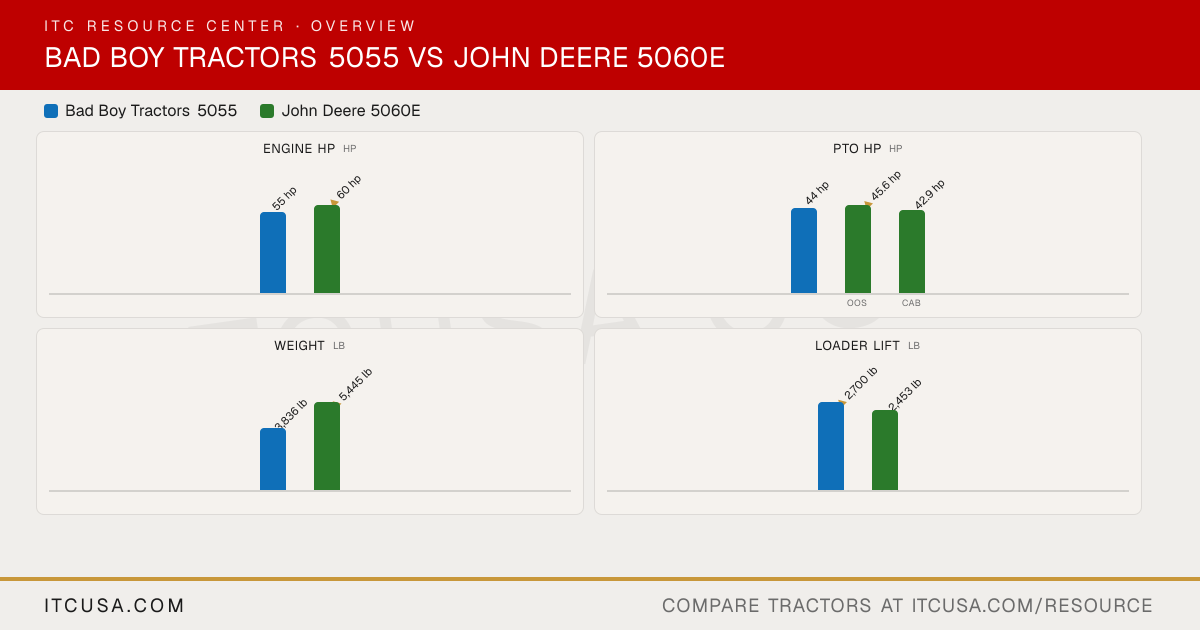

Bad Boy Tractors 5055 vs John Deere 5060E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the John Deere 5060E?

The John Deere 5060E leads on engine hp at 60 hp hp, compared to 55 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the John Deere 5060E?

The John Deere 5060E leads on pto hp at 45.6 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.

Which is heavier, the Bad Boy Tractors 5055 or the John Deere 5060E?

The John Deere 5060E leads on weight at 5,445 lb lb, compared to 3,836 lb lb for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the John Deere 5060E?

The Bad Boy Tractors 5055 leads on loader lift at 2,700 lb lb, compared to 2,453 lb lb for the John Deere 5060E.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the John Deere 5060E?

The John Deere 5060E leads on 3-pt lift (24 in) at 3,192 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
