Bad Boy Tractors 5055 vs Kubota L5060

Across 8 measurable specs, the Kubota L5060 leads 4 categories to 3 (1 tied). Machine pages: Bad Boy Tractors 5055 and Kubota L5060.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

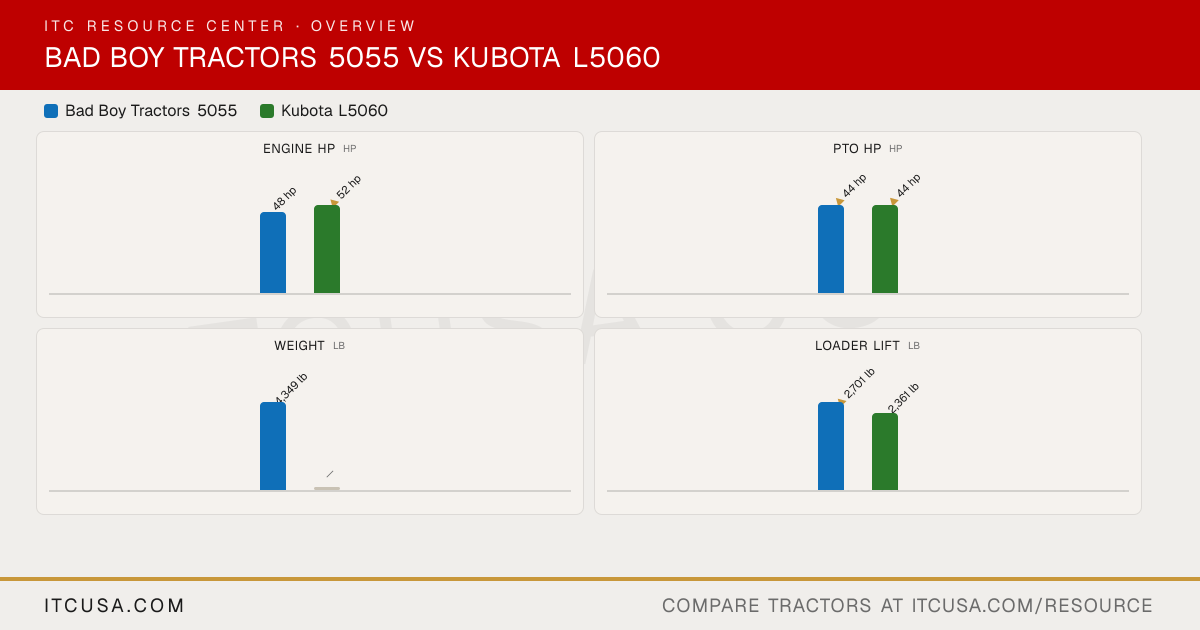

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	KubotaL5060

▶Engine
PTO Power	44 hp	44 hp
Alternator	70 A	45 A, 12 V
Air Cleaner	Dry Element	Dry paper, dual element
Engine Type	4-cylinder, water-cooled diesel	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
Fuel System	Diesel	Electronic Common Rail System (CRS)
Displacement	139.5 in³	148.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Not Published	Liquid-cooled
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	Kubota
Engine Power (Gross)	48 hp	52 hp
Engine Emissions Constraints	DPF / DOC	Tier 4
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Tandem pump - gear type
Steering Flow	5.0 gpm	4.9 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	9.8 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	14.7 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	14.7 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm @ 2550 engine rpm
PTO Type	Independent	Live independent (hydraulic clutch)
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	3,306 lb	3,858 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1	SAE Category 1 & 2
Hitch Lift Capacity (at 24”)	2,425 lb	2,976 lb
▶Tire Options
R3 Turf - Rear	Not Published	44X18-20
R3 Turf - Front	Not Published	29X12.50-15
Tire Size & Options	Not Published	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)
R4 Industrial - Rear	Not Published	4.6 gal-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	Not Published	14.9-26; 13.6-28
R1 Agricultural - Front	Not Published	9.5-16
▶Fluid Capacity
Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	8.7 qt
Crankcase Capacity	1.20 gal	9.9 qt
Fuel Tank Capacity	11.8 gal	13.5 gal
Front Axle Fluid Capacity	1.90 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	11.9 gal
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	112.7 in
Loader Breakout Force	3,660 lb	3171 lb (14107 N)
Quick Attach Loader System	SSQA	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	2,701 lb	2361 lb
▶Transmission & Drivetrain
Clutch	Not Published	Dry type single stage
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	12Fx8R
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	Glide Shift
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	16.5 mph
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	15.8 mph
Differential Lock & Limited Slip Options	Differential lock	Rear differential lock, standard
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet disc type, mechanically activated
Steering	Power steering	Hydrostatic power steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	75.4 in
Overall Width	64.9 in.	67.3 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	15.4 in
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	98.0 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	127.4 in	135.0 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 5055 vs Kubota L5060: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the Kubota L5060?

The Kubota L5060 leads on engine hp at 52 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Kubota L5060?

They are effectively tied: both machines are rated at 44 hp hp for pto hp.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Kubota L5060?

The Bad Boy Tractors 5055 leads on loader lift at 2,701 lb lb, compared to 2,361 lb lb for the Kubota L5060.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Kubota L5060?

The Kubota L5060 leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
