Bad Boy Tractors 5055 vs Kubota L6060HSTC

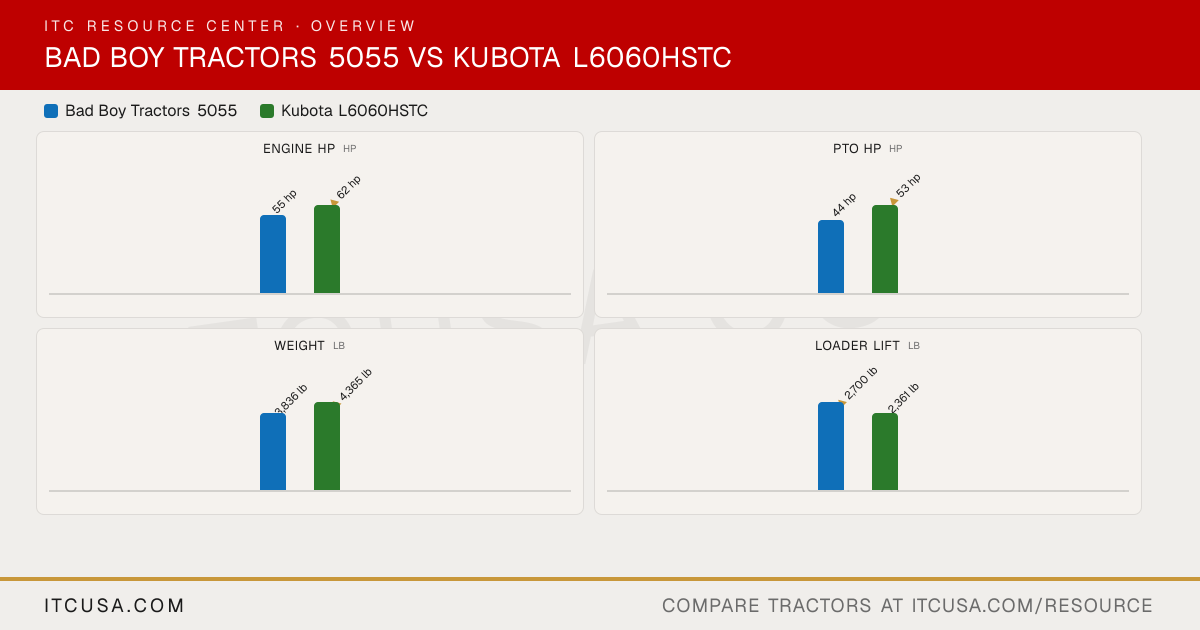

Across 9 measurable specs, the Kubota L6060HSTC leads 5 categories to 4. Machine pages: Bad Boy Tractors 5055 and Kubota L6060HSTC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	KubotaL6060HSTC

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A2300T3	V2403-CR-E4-GL6
Engine Type	4 cylinder water-cooled diesel, turbocharged	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
No. of Cylinders	4	4
Displacement	139.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	55 hp	62 hp
PTO Power	44 hp	53 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry paper, dual element
Fuel System	Not Published	Electronic Common Rail System (CRS)
Alternator	50 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Not Published	Tandem pump - gear type
Implement Flow	10.7 gpm	9.4 gpm
Steering Flow	5 gpm	4.7 gpm
Total Hydraulic Flow	15.7 gpm	14.1 gpm
Overall Hydraulic Pump Flow	15.7 gpm	14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 4 ports	Optional, up to 3 (double-acting valve or float detent valve options, any position)
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	13.5 gal
Coolant Capacity	2.08 gal	8.7 qt
Crankcase Capacity	1.20 gal	9.9 qt
Transmission / Hydraulic System Capacity	10.04 gal	11.9 gal
Front Axle Fluid Capacity	1.90 gal	8.9 qt
▶PTO & Hitch
PTO Type	Independent	Live independent (hydraulic clutch)
PTO Rear	540 / 540E rpm	540 rpm @ 2400 engine rpm
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1	SAE Category 1 & 2
Hitch Lift Capacity	3,306 lb	3,858 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,976 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Hydrostatic transmission
No. of Speeds	4 range (HST)	3-range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	19.5 mph	16.8 mph
Max Travel Speed (Reverse)	19.5 mph	15.2 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Heated leather seat	Suspension seat with fore/aft travel adjustment, suspension adjust knob, backrest tilt adjustment, swivel and arm rest
Front Axle Type	Selectable 4WD	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	135.0 in
Overall Width	64.9 in	67.3 in
Wheelbase	71.1 in	75.4 in
Ground Clearance	15.5 in	15.4 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	9.2 ft (with brake applied)
Height to Top of ROPS	98.4 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	92.5 in
▶Weight
Tractor Weight (Base)	3,836 lb	4,365 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470)
R1 Agricultural - Front	9.5-16	9.5-16
R1 Agricultural - Rear	13.6-26	14.9-26; 13.6-28
R3 Turf - Front	Not Published	29X12.50-15
R3 Turf - Rear	Not Published	44X18-20
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model	BBL500	LA1055
Loader Lift Height	106.6 in	112.7 in
Loader Lift Capacity (Full Height)	2,700 lb	2361 lb
Loader Breakout Force	3,660 lb	3171 lbf (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 5055 vs Kubota L6060HSTC: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the Kubota L6060HSTC?

The Kubota L6060HSTC leads on engine hp at 62 hp hp, compared to 55 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Kubota L6060HSTC?

The Kubota L6060HSTC leads on pto hp at 53 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.

Which is heavier, the Bad Boy Tractors 5055 or the Kubota L6060HSTC?

The Kubota L6060HSTC leads on weight at 4,365 lb lb, compared to 3,836 lb lb for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Kubota L6060HSTC?

The Bad Boy Tractors 5055 leads on loader lift at 2,700 lb lb, compared to 2,361 lb lb for the Kubota L6060HSTC.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Kubota L6060HSTC?

The Kubota L6060HSTC leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
