Bad Boy Tractors 5055 vs LS Tractor MT463C

Across 7 measurable specs, the LS Tractor MT463C leads 7 categories to 0. Machine pages: Bad Boy Tractors 5055 and LS Tractor MT463C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	LS TractorMT463C

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A2300T3	L4C25-T
Engine Type	4 cylinder water-cooled diesel, turbocharged	In-line vertical, water cooled 4-cycle diesel, CRDI
No. of Cylinders	4	4
Displacement	139.5 in³	152.85 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	55 hp	63 hp
PTO Power	44 hp	54.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Dry
Fuel System	Not Published	Delphi, CRDI
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear type, engine drive
Implement Flow	10.7 gpm	14.5 gpm
Steering Flow	5 gpm	6.6 gpm
Total Hydraulic Flow	15.7 gpm	21.1 gpm
Overall Hydraulic Pump Flow	15.7 gpm	21.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2 Pairs (Front), 2 Pairs (Rear)
No. of Optional Remote Valves	Up to 4 ports	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	24.3 gal
Coolant Capacity	2.08 gal	3.0 gal
Crankcase Capacity	1.20 gal	1.8 gal
Transmission / Hydraulic System Capacity	10.04 gal	16.5 gal
Front Axle Fluid Capacity	1.90 gal	2.3 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 / 540E rpm	540 / 540E
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category II
Hitch Lift Capacity	3,306 lb	4,079 lb
Hitch Lift Capacity (at 24”)	2,425 lb	3,483 lb
Lift Control Type	Position control	Position & Draft
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Synchro Shuttle
No. of Speeds	4 range (HST)	F16 x R16
Max Travel Speed (Forward)	19.5 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Dry single clutch
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Brakes	Wet, multi-disc	Wet, Multi-disc
Seat Suspension & Adjustability	Heated leather seat	Seat With Suspension & Armrest
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	140 in
Overall Width	64.9 in	72.6 in
Wheelbase	71.1 in	83.1 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	12.8 ft (3.9 m)
Height to Top of ROPS	98.4 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	105.4 in
▶Weight
Tractor Weight (Base)	3,836 lb	5,776 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	6,966 lb
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Standard Ag 9.5-24 / 16.9-28; Industrial 10.5/80x18 10PR / 19.5Lx24 8PR; Large Ag 11.2-24 / 16.9-30; R14 320/85R20 119D / 420/75R34 142D
R1 Agricultural - Front	9.5-16	9.5-24 (Standard Ag); 11.2-24 (Large Ag)
R1 Agricultural - Rear	13.6-26	16.9-28 (Standard Ag); 16.9-30 (Large Ag)
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	10.5/80x18 10PR
R4 Industrial - Rear	Not Published	19.5Lx24 8PR
▶Loader & Attachments
Quick Attach Loader System	SSQA	LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA)
Loader Model	BBL500	LL5001
Loader Lift Height	106.6 in	LL5001: 132.9 in (height position); 116.8 in (power position)
Loader Lift Capacity (Full Height)	2,700 lb	LL5001: 3,426 lb (height position); 3,488 lb (power position)
Loader Breakout Force	3,660 lb	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

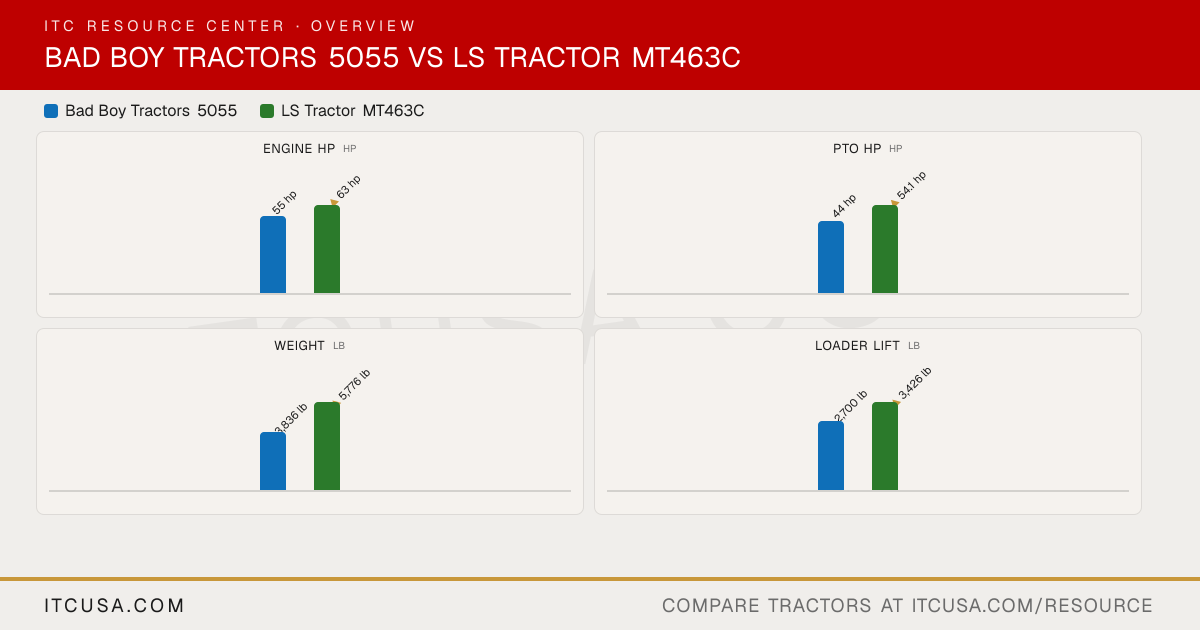

Bad Boy Tractors 5055 vs LS Tractor MT463C: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the LS Tractor MT463C?

The LS Tractor MT463C leads on engine hp at 63 hp hp, compared to 55 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the LS Tractor MT463C?

The LS Tractor MT463C leads on pto hp at 54.1 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.

Which is heavier, the Bad Boy Tractors 5055 or the LS Tractor MT463C?

The LS Tractor MT463C leads on weight at 5,776 lb lb, compared to 3,836 lb lb for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the LS Tractor MT463C?

The LS Tractor MT463C leads on loader lift at 3,426 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5055.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the LS Tractor MT463C?

The LS Tractor MT463C leads on 3-pt lift (24 in) at 3,483 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
