Bad Boy Tractors 5055 vs LS Tractor XR4150

Across 9 measurable specs, the Bad Boy Tractors 5055 leads 5 categories to 4. Machine pages: Bad Boy Tractors 5055 and LS Tractor XR4150.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

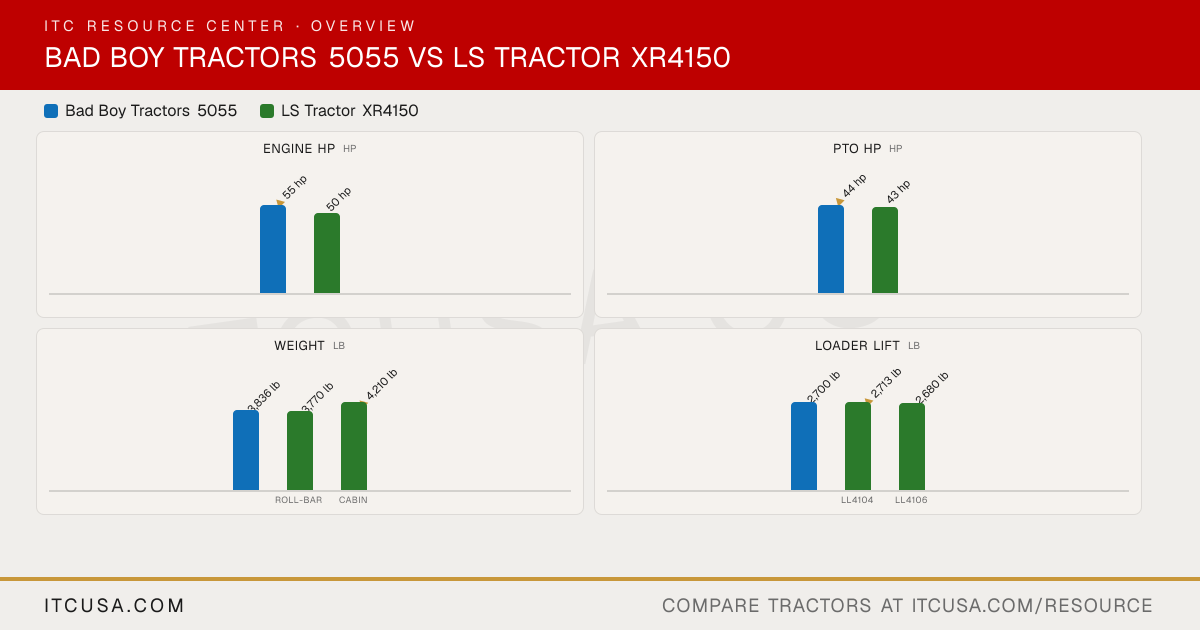

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	LS TractorXR4150

▶Engine
Engine Manufacturer	TYM	LS
Engine Model	A2300T3	L3C19-T2
Engine Type	4 cylinder water-cooled diesel, turbocharged	4-stroke, vertical, water cooling, CRDI
No. of Cylinders	4	3
Displacement	139.5 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	55 hp	50 hp
PTO Power	44 hp	43 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Dry
Fuel System	Not Published	Delphi CRDI (Common Rail Direct Injection)
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear pump type, engine drive
Implement Flow	10.7 gpm	8.2 gpm
Steering Flow	5 gpm	4.1 gpm (mechanical); 6.2 gpm (HST)
Total Hydraulic Flow	15.7 gpm	12.3 gpm
Overall Hydraulic Pump Flow	15.7 gpm	Not Published
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 4 ports	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	10.6 gal (roll-bar); 12.4 gal (cabin)
Coolant Capacity	2.08 gal	2.3 gal
Crankcase Capacity	1.20 gal	1.6 gal
Transmission / Hydraulic System Capacity	10.04 gal	11.4 gal
Front Axle Fluid Capacity	1.90 gal	2.1 gal
▶PTO & Hitch
PTO Type	Independent	Independent PTO with wet disk clutch
PTO Rear	540 / 540E rpm	540 (standard); 540 / 750 / 1,000 (optional 3-speed)
Mid-PTO Availability	Not Published	Yes, 2000 rpm mid-PTO
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306 lb	2,756 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,469 lb
Lift Control Type	Position control	Position and draft control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Synchro-shuttle (mechanical)
No. of Speeds	4 range (HST)	F16 x R16 (F32 x R16 with creeper, optional)
Max Travel Speed (Forward)	19.5 mph	16.8 mph
Max Travel Speed (Reverse)	19.5 mph	15.3 mph
Clutch	None (HST)	Dry single clutch (mechanical only)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical pedal type differential lock
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	133 in
Overall Width	64.9 in	62.5 in
Wheelbase	71.1 in	73.2 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	9.5 ft (with brake applied)
Height to Top of ROPS	98.4 in	93 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	92 in
▶Weight
Tractor Weight (Base)	3,836 lb	Roll-bar: 3,770 lb; Cabin: 4,210 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Ag 9.5-16 / 13.6-24; Turf 28x8.5-15 / 41x14-20; Industrial 12-16.5 / 17.5L-24
R1 Agricultural - Front	9.5-16	9.5-16 (6PR)
R1 Agricultural - Rear	13.6-26	13.6-24 (8PR)
R3 Turf - Front	Not Published	28x8.5-15
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	Not Published	12-16.5
R4 Industrial - Rear	Not Published	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL500	LL4104; LL4106
Loader Lift Height	106.6 in	LL4104: 96.3 in; LL4106: 94.4 in
Loader Lift Capacity (Full Height)	2,700 lb	LL4104: 2,713 lb; LL4106: 2,680 lb
Loader Breakout Force	3,660 lb	LL4104: 3,802 lb; LL4106: 4,063 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

Bad Boy Tractors 5055 vs LS Tractor XR4150: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the LS Tractor XR4150?

The Bad Boy Tractors 5055 leads on engine hp at 55 hp hp, compared to 50 hp hp for the LS Tractor XR4150.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the LS Tractor XR4150?

The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 43 hp hp for the LS Tractor XR4150.

Which is heavier, the Bad Boy Tractors 5055 or the LS Tractor XR4150?

The LS Tractor XR4150 leads on weight at 4,210 lb lb, compared to 3,836 lb lb for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the LS Tractor XR4150?

The LS Tractor XR4150 leads on loader lift at 2,713 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5055.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the LS Tractor XR4150?

The LS Tractor XR4150 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
