Bad Boy Tractors 5055 vs Mahindra 1640 Shuttle

Across 9 measurable specs, the Bad Boy Tractors 5055 leads 9 categories to 0. Machine pages: Bad Boy Tractors 5055 and Mahindra 1640 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	Mahindra1640 Shuttle

▶Engine
PTO Power	44 hp	29.9 hp
Alternator	70 A	90 A, 12 V
Air Cleaner	Dry Element	Not Published
Engine Type	4-cylinder, water-cooled diesel	Four-stroke, Naturally Aspirated, Direct Injection, Water-Cooled Diesel
Fuel System	Diesel	Direct Injection
Displacement	139.5 in³	166.7 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2400 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	Mahindra
Engine Power (Gross)	48 hp	38.7 hp @ 400 rpm
Engine Emissions Constraints	DPF / DOC	DOC / No DPF
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	3809 lb
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	7-Year Limited Powertrain Warranty
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Not Published
Steering Flow	5.0 gpm	3.4 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	7.7 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	11.1 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	11.1 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	1
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm @ 2376 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Position Control
Hitch Lift Capacity	3,306 lb	2646 lb
Mid-PTO Availability	Not Published	Optional; 2000 @ 2526 rpm
Category, 3-Point Hitch	Category 1	CAT I with Telescoping Stabilizers & Flex Links
Hitch Lift Capacity (at 24”)	2,425 lb	1720 lb
▶Tire Options
R3 Turf - Rear	Not Published	41X14-20
R3 Turf - Front	Not Published	27X10.5-15
Tire Size & Options	Not Published	R1 Agriculture, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	43X16-20
R4 Industrial - Front	Not Published	28X8.5-15
R1 Agricultural - Rear	Not Published	11.2X24
R1 Agricultural - Front	Not Published	7X16
▶Fluid Capacity
Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Fuel Tank Capacity	11.8 gal	7.7 gal
Front Axle Fluid Capacity	1.90 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	92 in
Loader Breakout Force	3,660 lb	2777 lb
Quick Attach Loader System	SSQA	433.2 gal: Front loader with skid-steer couplers for superfast hookups.
Loader Lift Capacity (Full Height)	2,701 lb	1830 lb
▶Transmission & Drivetrain
Clutch	Not Published	Dry-Single
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	8F / 8R
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	Constant mesh on gearshift and synchromesh on F-R shuttle
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	13.6 mph
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet Disc
Steering	Power steering	Hydrostatic Power Steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	76.9 in
Overall Width	64.9 in.	62.0 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	12.8 in
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	91.5 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	127.4 in	127.8 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

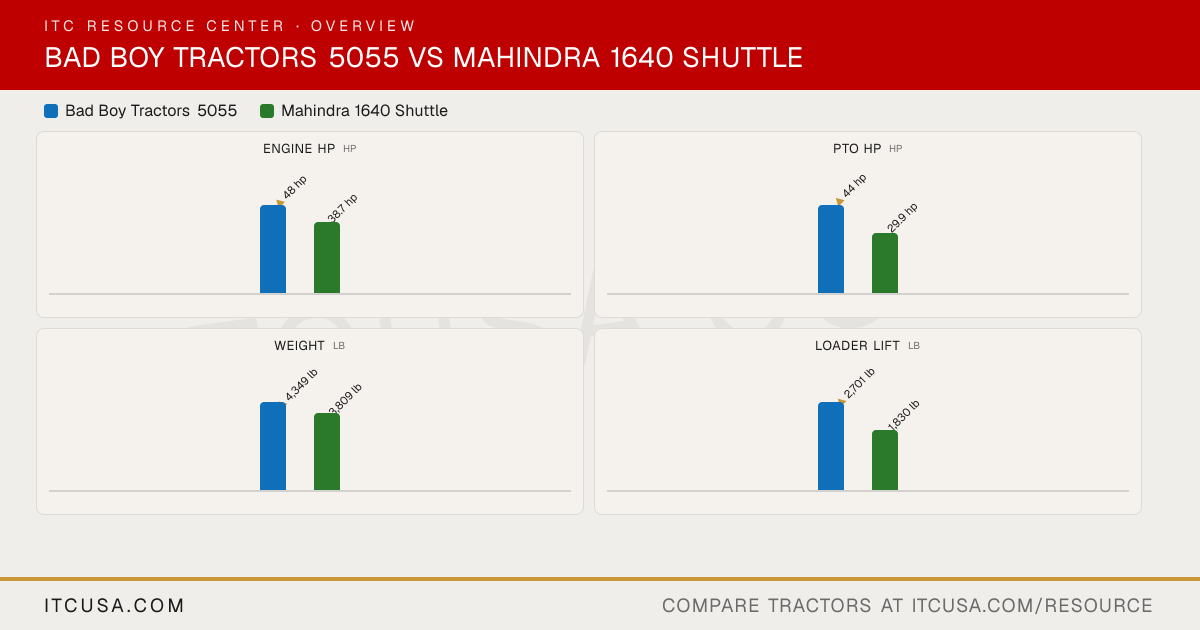

Bad Boy Tractors 5055 vs Mahindra 1640 Shuttle: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the Mahindra 1640 Shuttle?

The Bad Boy Tractors 5055 leads on engine hp at 48 hp hp, compared to 38.7 hp hp for the Mahindra 1640 Shuttle.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Mahindra 1640 Shuttle?

The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 29.9 hp hp for the Mahindra 1640 Shuttle.

Which is heavier, the Bad Boy Tractors 5055 or the Mahindra 1640 Shuttle?

The Bad Boy Tractors 5055 leads on weight at 4,349 lb lb, compared to 3,809 lb lb for the Mahindra 1640 Shuttle.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Mahindra 1640 Shuttle?

The Bad Boy Tractors 5055 leads on loader lift at 2,701 lb lb, compared to 1,830 lb lb for the Mahindra 1640 Shuttle.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Mahindra 1640 Shuttle?

The Bad Boy Tractors 5055 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,720 lb lb for the Mahindra 1640 Shuttle.
