Bad Boy Tractors 5055 vs Massey Ferguson 1760M

Across 8 measurable specs, the Massey Ferguson 1760M leads 6 categories to 2. Machine pages: Bad Boy Tractors 5055 and Massey Ferguson 1760M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	Massey Ferguson1760M

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A2300T3	Shibaura N4LDI-TA
Engine Type	4 cylinder water-cooled diesel, turbocharged	4-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	4	4
Displacement	139.5 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	55 hp	59.9 hp
PTO Power	44 hp	46.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Engine-driven gear-type pump
Implement Flow	10.7 gpm	Not Published
Steering Flow	5 gpm	Not Published
Total Hydraulic Flow	15.7 gpm	Not Published
Overall Hydraulic Pump Flow	15.7 gpm	12x12 Power Shuttle: 12.7 gpm; HST: 12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	12.1 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 4 ports	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	14.0 gal
Coolant Capacity	2.08 gal	7.08 qt
Crankcase Capacity	1.20 gal	6.87 qt
Transmission / Hydraulic System Capacity	10.04 gal	12x12 Power Shuttle: 11.35 gal; HST: 9.25 gal
Front Axle Fluid Capacity	1.90 gal	9.0 qt
▶PTO & Hitch
PTO Type	Independent	Independent, with soft-start feature
PTO Rear	540 / 540E rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm (not offered with the 12x12 power shuttle)
Category, 3-Point Hitch	Category 1	Category I with extendable ball ends
Hitch Lift Capacity	3,306 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	12x12 Power Shuttle: 3,307 lb; HST: 3,086 lb
Lift Control Type	Position control	Position and draft control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	4 range (HST)	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	19.5 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Multiple stage wet type
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical engagement via right side heel pedal
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Heated leather seat	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	Selectable 4WD	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	12x12 Power Shuttle: 170.1 in; HST: 132.3 in
Overall Width	64.9 in	12x12 Power Shuttle: 71.1 in; HST: 65.4 in
Wheelbase	71.1 in	12x12 Power Shuttle: 80.3 in; HST: 77.9 in
Ground Clearance	15.5 in	14.8 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	Not Published
Height to Top of ROPS	98.4 in	12x12 Power Shuttle: 103.2 in; HST: 102.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	12x12 Power Shuttle: 93.3 in; HST: 92.9 in
▶Weight
Tractor Weight (Base)	3,836 lb	12x12 Power Shuttle: 4,233 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5-16	9.5x16
R1 Agricultural - Rear	13.6-26	16.9x26
R3 Turf - Front	Not Published	27x10.50-15
R3 Turf - Rear	Not Published	44x18.00-20
R4 Industrial - Front	Not Published	12-16.5
R4 Industrial - Rear	Not Published	18.4-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	DL135: Skid steer quick attach
Loader Model	BBL500	DL135
Loader Lift Height	106.6 in	DL135: 111 in
Loader Lift Capacity (Full Height)	2,700 lb	DL135: 2,610 lb
Loader Breakout Force	3,660 lb	DL135: 4,000 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 5055 vs Massey Ferguson 1760M: Quick Answers

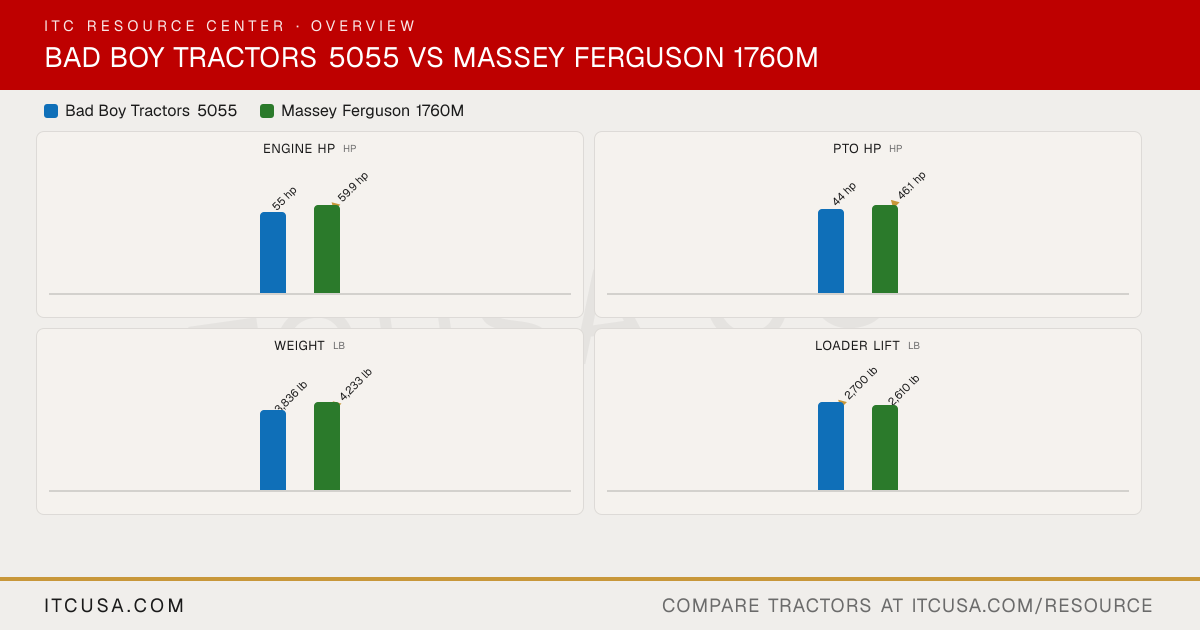

Which has more horsepower, the Bad Boy Tractors 5055 or the Massey Ferguson 1760M?

The Massey Ferguson 1760M leads on engine hp at 59.9 hp hp, compared to 55 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Massey Ferguson 1760M?

The Massey Ferguson 1760M leads on pto hp at 46.1 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.

Which is heavier, the Bad Boy Tractors 5055 or the Massey Ferguson 1760M?

The Massey Ferguson 1760M leads on weight at 4,233 lb lb, compared to 3,836 lb lb for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Massey Ferguson 1760M?

The Bad Boy Tractors 5055 leads on loader lift at 2,700 lb lb, compared to 2,610 lb lb for the Massey Ferguson 1760M.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Massey Ferguson 1760M?

The Massey Ferguson 1760M leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
