Which has more horsepower, the Bad Boy Tractors 5055 or the New Holland T3.60F?

The New Holland T3.60F leads on engine hp at 54 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the New Holland T3.60F?

The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 40 hp hp for the New Holland T3.60F.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the New Holland T3.60F?

The New Holland T3.60F leads on 3-pt lift (24 in) at 4,000 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.

Bad Boy Tractors 5055 vs New Holland T3.60F

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 4 measurable specs, the New Holland T3.60F leads 3 categories to 1. Machine pages: Bad Boy Tractors 5055 and New Holland T3.60F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 5055	New Holland T3.60F
Engine HP (hp)	48 hp	▲ 54 hp
PTO HP (hp)	▲ 44 hp	40 hp
Weight (lb)	4,349 lb	—
Loader Lift (lb)	2,701 lb	—
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 4,000 lb
Lift Height (in)	107.7 in	—
Breakout Force (lbf)	3,660 lbf	—
Hydraulic Flow (gpm)	16.4 gpm	▲ 20.2 gpm
Travel Speed (mph)	16 mph	—

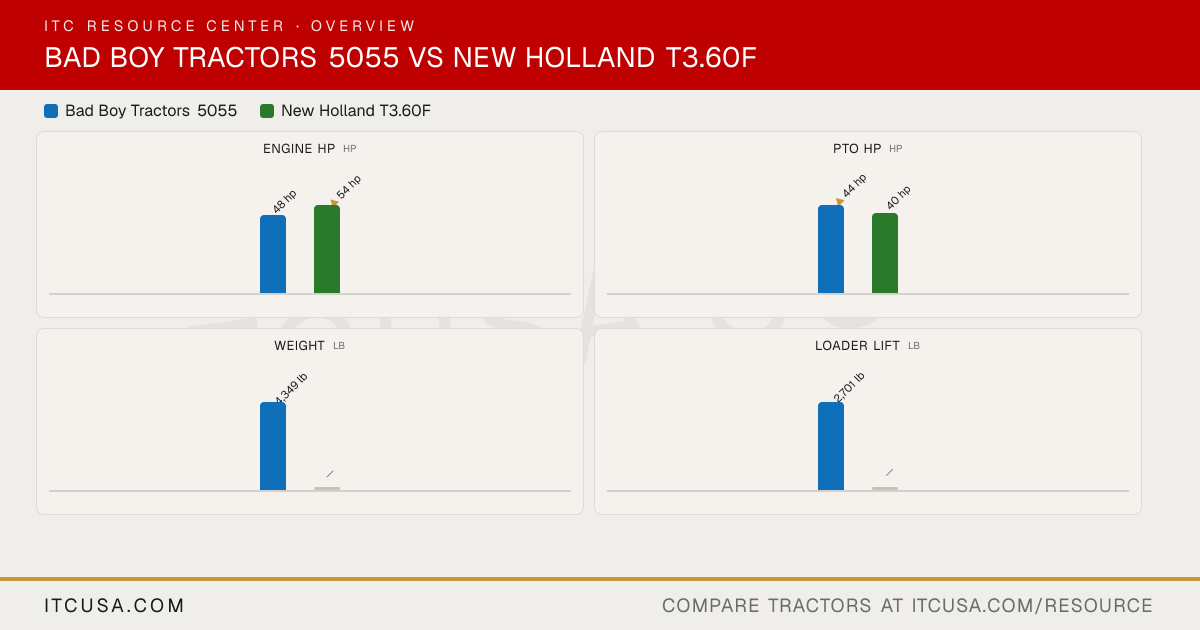

The headline numbers at a glance.

Bad Boy Tractors 5055New Holland T3.60F

Engine HPhp

48 hp

▲54 hp

PTO HPhp

▲44 hp

40 hp

Weightlb

4,349 lb

—

Loader Liftlb

2,701 lb

—

3-Pt Lift (24 in)lb

2,425 lb

▲4,000 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	New HollandT3.60F


PTO Power	44 hp	40 hp
Alternator	70 A	Not Published
Air Cleaner	Dry Element	Not Published
Engine Type	4-cylinder, water-cooled diesel	Turbocharged, intercooled 3-cylinder diesel
Fuel System	Diesel	Common rail fuel injection
Displacement	139.5 in³	179 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2300 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	FPT Industrial
Engine Power (Gross)	48 hp	54 hp
Engine Emissions Constraints	DPF / DOC	Tier 4B CEGR + DOC

Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	6-year powertrain warranty	Not Published

Pump Type	Hydrostatic Power Steering	Dual-pump
Steering Flow	5.0 gpm	7.6 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	12.6 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	20.2 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	20.2 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	3
No. of Standard Remote Valves	Not Published	2

PTO Rear	540 / 540E rpm	540/540E
PTO Type	Independent	Not Published
Lift Control Type	Not Published	Lift-O-Matic
Hitch Lift Capacity	3,306 lb	Not Published
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	4,000 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	320/70R20
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Fuel Tank Capacity	11.8 gal	Not Published
Front Axle Fluid Capacity	1.90 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published

Loader Lift Height	107.7 in (pivot pin)	Not Published
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	2,701 lb	Not Published

Clutch	Not Published	Not Published
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	12F/12R
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	12x12 Mechanical Shuttle
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	Not Published
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet, Multi-disc	Not Published
Steering	Power steering	Not Published
Frame Type	Compact utility tractor, 4WD	Straddle-deck platform
Front Axle Type	Selectable 4WD	4WD front axle (electronic engagement)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Vinyl suspension seat

Wheelbase	71.1 in.	73 in
Overall Width	64.9 in.	57 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	Not Published
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	97 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	127.4 in	143 in
