Bad Boy Tractors 5055 vs New Holland T3.70F

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 4 measurable specs, the New Holland T3.70F leads 4 categories to 0. Machine pages: Bad Boy Tractors 5055 and New Holland T3.70F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 5055	New Holland T3.70F
Engine HP (hp)	55 hp	▲ 64 hp
PTO HP (hp)	44 hp	▲ 50 hp
Weight (lb)	3,836 lb	n/a
Loader Lift (lb)	2,700 lb	n/a
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 4,000 lb
Lift Height (in)	106.6 in	n/a
Breakout Force (lbf)	3,660 lbf	n/a
Hydraulic Flow (gpm)	15.7 gpm	▲ 20.2 gpm
Travel Speed (mph)	19.5 mph	n/a

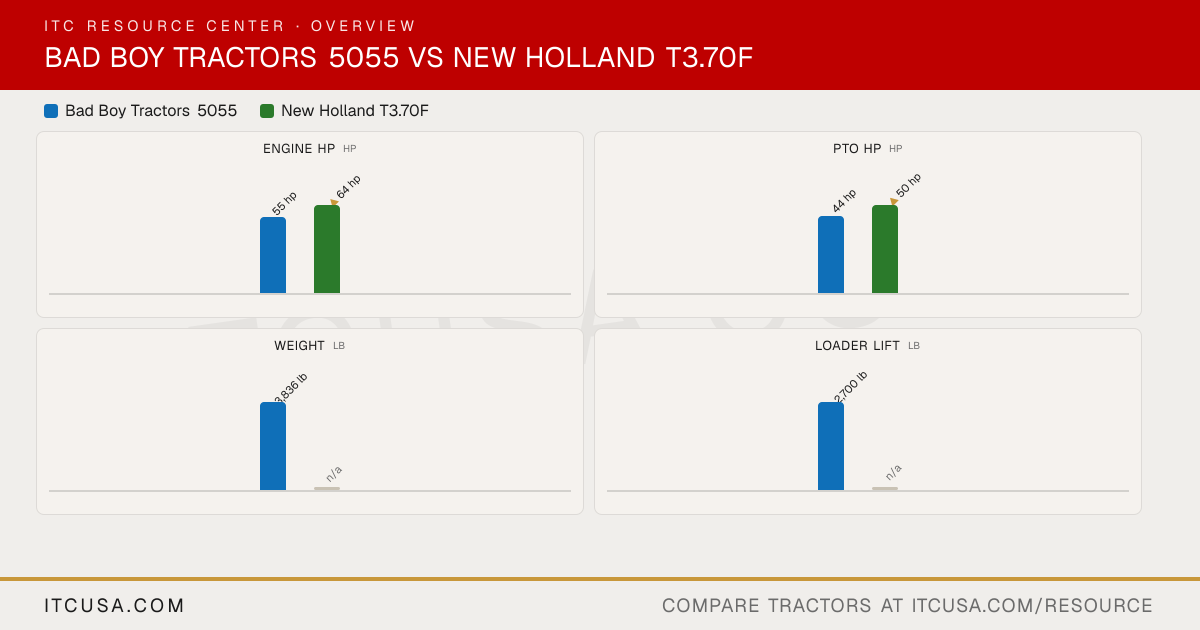

The headline numbers at a glance.

Bad Boy Tractors 5055New Holland T3.70F

Engine HPhp

55 hp

▲64 hp

PTO HPhp

44 hp

▲50 hp

Weightlb

3,836 lb

n/a

Loader Liftlb

2,700 lb

n/a

3-Pt Lift (24 in)lb

2,425 lb

▲4,000 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	New HollandT3.70F


Engine Manufacturer	TYM	FPT Industrial
Engine Model	A2300T3	n/a
Engine Type	4 cylinder water-cooled diesel, turbocharged	Turbocharged, intercooled 3-cylinder diesel
No. of Cylinders	4	3
Displacement	139.5 in³	179 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	55 hp	64 hp
PTO Power	44 hp	50 hp
Engine Emissions Constraints	Tier 4	Tier 4B CEGR + DOC
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	Not Published
Fuel System	Not Published	Common rail fuel injection
Alternator	50 A, 12 V	Not Published

Pump Type	Not Published	Dual-pump
Implement Flow	10.7 gpm	12.6 gpm
Steering Flow	5 gpm	7.6 gpm
Total Hydraulic Flow	15.7 gpm	20.2 gpm
Overall Hydraulic Pump Flow	15.7 gpm	20.2 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 4 ports	3

Fuel Tank Capacity	11.8 gal	Not Published
Coolant Capacity	2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.90 gal	Not Published

PTO Type	Independent	Not Published
PTO Rear	540 / 540E rpm	540/540E
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Not Published
Hitch Lift Capacity	3,306 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	4,000 lb
Lift Control Type	Position control	Lift-O-Matic

Transmission Type	Hydrostatic (HST), 4-range	12x12 Mechanical Shuttle
No. of Speeds	4 range (HST)	12F/12R
Max Travel Speed (Forward)	19.5 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Not Published

Frame Type	Compact utility tractor, 4WD	Straddle-deck platform
Steering	Hydrostatic power steering	Not Published
Brakes	Wet, multi-disc	Not Published
Seat Suspension & Adjustability	Heated leather seat	Vinyl suspension seat
Front Axle Type	Selectable 4WD	4WD front axle (electronic engagement)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	127.4 in	143 in
Overall Width	64.9 in	57 in
Wheelbase	71.1 in	73 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	Not Published
Height to Top of ROPS	98.4 in	97 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	Not Published

Tractor Weight (Base)	3,836 lb	n/a
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Not Published
R1 Agricultural - Front	9.5-16	Not Published
R1 Agricultural - Rear	13.6-26	320/70R20
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL500	n/a
Loader Lift Height	106.6 in	Not Published
Loader Lift Capacity (Full Height)	2,700 lb	Not Published
Loader Breakout Force	3,660 lb	Not Published

Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
