Bad Boy Tractors 5055 vs New Holland Workmaster 60

Across 8 measurable specs, the New Holland Workmaster 60 leads 7 categories to 1. Machine pages: Bad Boy Tractors 5055 and New Holland Workmaster 60.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

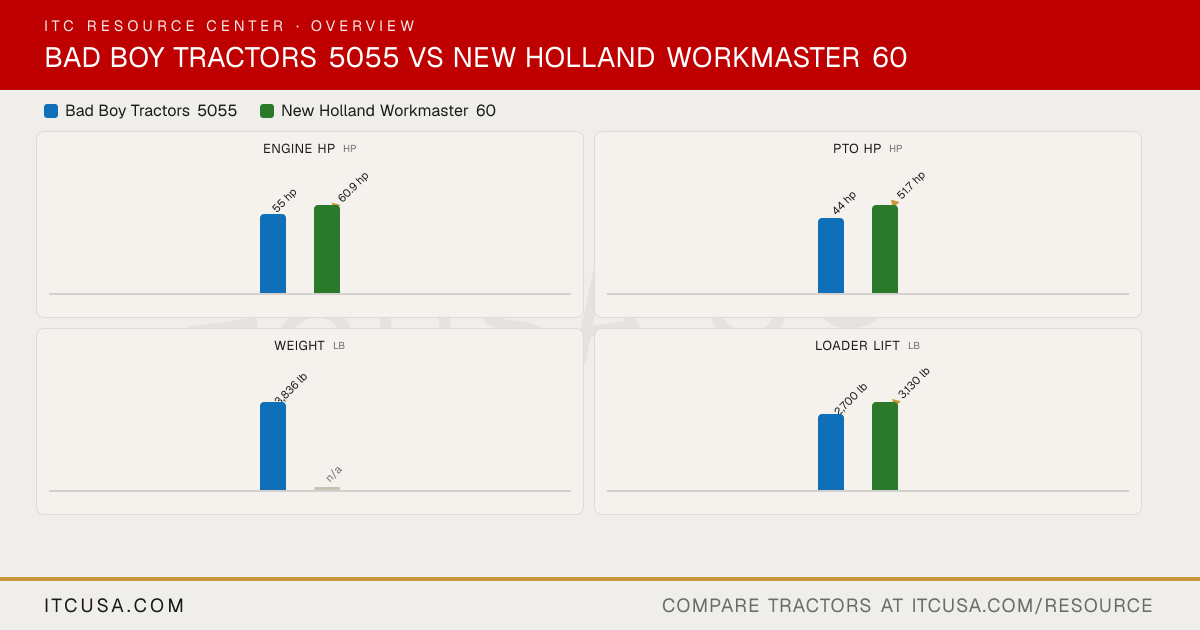

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	New HollandWorkmaster 60

▶Engine
Engine Manufacturer	TYM	FPT Industrial
Engine Model	A2300T3	n/a
Engine Type	4 cylinder water-cooled diesel, turbocharged	Turbocharged, intercooled 3-cylinder diesel
No. of Cylinders	4	3
Displacement	139.5 in³	136 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	55 hp	60.9 hp
PTO Power	44 hp	51.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Dry element	Inner and outer paper elements
Fuel System	Not Published	CRDI
Alternator	50 A, 12 V	75 A, 12 V
▶Hydraulics
Pump Type	Not Published	Open-center; dual pumps
Implement Flow	10.7 gpm	12 gpm
Steering Flow	5 gpm	5.5 gpm
Total Hydraulic Flow	15.7 gpm	17.5 gpm
Overall Hydraulic Pump Flow	15.7 gpm	17.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 4 ports	2
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	17.2 gal
Coolant Capacity	2.08 gal	10.6 qt
Crankcase Capacity	1.20 gal	6.7 qt
Transmission / Hydraulic System Capacity	10.04 gal	6.6 gal
Front Axle Fluid Capacity	1.90 gal	8.0 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Not Applicable
Category, 3-Point Hitch	Category 1	Category II/I
Hitch Lift Capacity	3,306 lb	3,307 lb at ball ends
Hitch Lift Capacity (at 24”)	2,425 lb	2,701 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	8x8 synchronized shuttle
No. of Speeds	4 range (HST)	8F/8R
Max Travel Speed (Forward)	19.5 mph	19.8 mph
Max Travel Speed (Reverse)	19.5 mph	20.9 mph
Clutch	None (HST)	LUK, 11 in
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	6,500 lb dynamic capacity
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	134.0 in
Overall Width	64.9 in	67.5 in
Wheelbase	71.1 in	77.2 in
Ground Clearance	15.5 in	15.9 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	190.9 in
Height to Top of ROPS	98.4 in	97.6 in
Height to Top of ROPS (folded)	Not Published	77.0 in
Height to Top of Cab Model	97.0 in	105.4 in
▶Weight
Tractor Weight (Base)	3,836 lb	n/a
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	9.5-16	8.3X24, 6 ply
R1 Agricultural - Rear	13.6-26	13.6X28R1, 6 ply; 14.9X28R1, 6 ply
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	12.5X18
R4 Industrial - Rear	Not Published	18.4X24R4
▶Loader & Attachments
Quick Attach Loader System	SSQA	600TL: Front loader (quick-attach design)
Loader Model	BBL500	n/a
Loader Lift Height	106.6 in	Up to 122 in
Loader Lift Capacity (Full Height)	2,700 lb	Up to 3,130 lb
Loader Breakout Force	3,660 lb	Up to 3,527 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 5055 vs New Holland Workmaster 60: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the New Holland Workmaster 60?

The New Holland Workmaster 60 leads on engine hp at 60.9 hp hp, compared to 55 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the New Holland Workmaster 60?

The New Holland Workmaster 60 leads on pto hp at 51.7 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the New Holland Workmaster 60?

The New Holland Workmaster 60 leads on loader lift at 3,130 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5055.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the New Holland Workmaster 60?

The New Holland Workmaster 60 leads on 3-pt lift (24 in) at 2,701 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
