Bad Boy Tractors 5055 vs New Holland Workmaster 65

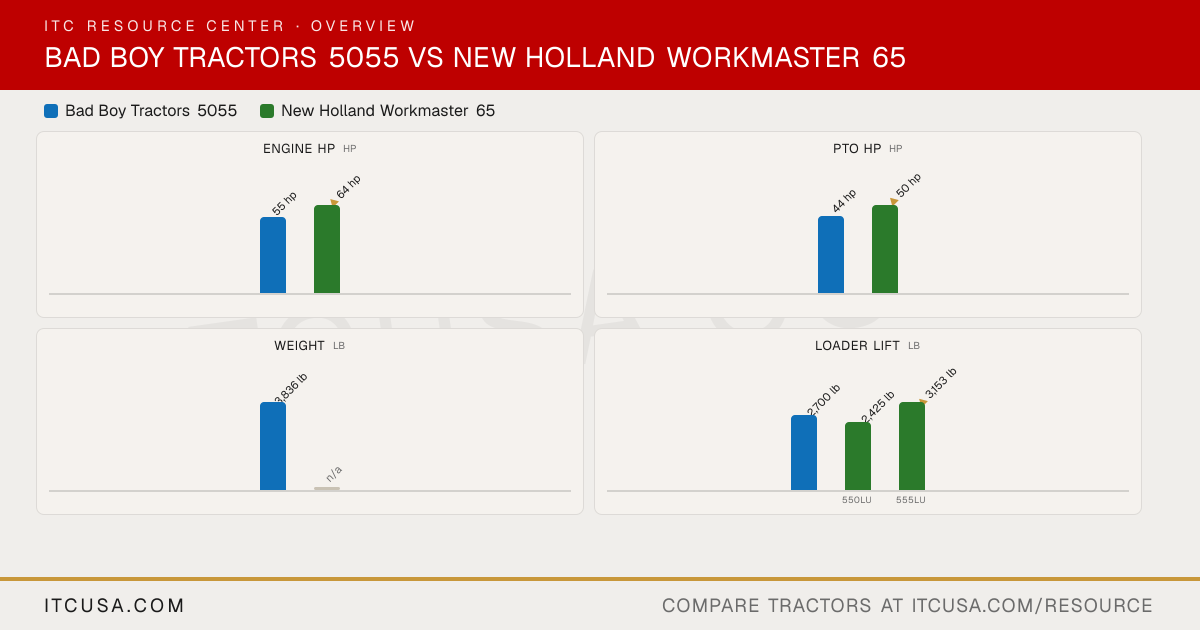

Across 7 measurable specs, the New Holland Workmaster 65 leads 7 categories to 0. Machine pages: Bad Boy Tractors 5055 and New Holland Workmaster 65.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	New HollandWorkmaster 65

▶Engine
Engine Manufacturer	TYM	FPT Industrial
Engine Model	A2300T3	n/a
Engine Type	4 cylinder water-cooled diesel, turbocharged	Turbocharged 3-cylinder diesel
No. of Cylinders	4	3
Displacement	139.5 in³	179 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	55 hp	64 hp
PTO Power	44 hp	50 hp
Engine Emissions Constraints	Tier 4	Tier 4B CEGR + DOC (no DPF; no regeneration)
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	Not Published
Fuel System	Not Published	High-pressure common rail
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Dual pumps
Implement Flow	10.7 gpm	12.6 gpm
Steering Flow	5 gpm	7.6 gpm
Total Hydraulic Flow	15.7 gpm	20.2 gpm
Overall Hydraulic Pump Flow	15.7 gpm	20.2 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 4 ports	1
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	Not Published
Coolant Capacity	2.08 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.90 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Hydraulic wet clutch
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Not Published
Hitch Lift Capacity	3,306 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	3,500 lb
Lift Control Type	Position control	Lift-O-Matic
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	12x12 power shuttle
No. of Speeds	4 range (HST)	12F/12R
Max Travel Speed (Forward)	19.5 mph	25 mph
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Not Published
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Not Published
Brakes	Wet, multi-disc	Not Published
Seat Suspension & Adjustability	Heated leather seat	Cloth air-suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	6,500 lb dynamic capacity
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	154.1 in
Overall Width	64.9 in	Not Published
Wheelbase	71.1 in	83.6 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	Not Published
Height to Top of ROPS	98.4 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Applicable
Height to Top of Cab Model	97.0 in	100.2 in
▶Weight
Tractor Weight (Base)	3,836 lb	n/a
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Not Published
R1 Agricultural - Front	9.5-16	Not Published
R1 Agricultural - Rear	13.6-26	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
▶Loader & Attachments
Quick Attach Loader System	SSQA	550LU, 555LU: 72 in bucket; SSL or Euro-style quick attach
Loader Model	BBL500	n/a
Loader Lift Height	106.6 in	550LU: 131.3 in; 555LU: 130.0 in
Loader Lift Capacity (Full Height)	2,700 lb	550LU: 2,425 lb; 555LU: 3,153 lb
Loader Breakout Force	3,660 lb	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 5055 vs New Holland Workmaster 65: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the New Holland Workmaster 65?

The New Holland Workmaster 65 leads on engine hp at 64 hp hp, compared to 55 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the New Holland Workmaster 65?

The New Holland Workmaster 65 leads on pto hp at 50 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the New Holland Workmaster 65?

The New Holland Workmaster 65 leads on loader lift at 3,153 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5055.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the New Holland Workmaster 65?

The New Holland Workmaster 65 leads on 3-pt lift (24 in) at 3,500 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
