Which has more horsepower, the Bad Boy Tractors 5055 or the TYM 5520C?

The TYM 5520C leads on engine hp at 55 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the TYM 5520C?

They are effectively tied: both machines are rated at 44 hp hp for pto hp.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the TYM 5520C?

They are effectively tied: both machines are rated at 2,701 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the TYM 5520C?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).

Bad Boy Tractors 5055 vs TYM 5520C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM 5520C leads 3 categories to 1 (4 tied). Machine pages: Bad Boy Tractors 5055 and TYM 5520C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 5055	TYM 5520C
Engine HP (hp)	48 hp	▲ 55 hp
PTO HP (hp)	44 hp	44 hp
Weight (lb)	4,349 lb	—
Loader Lift (lb)	2,701 lb	2,701 lb
3-Pt Lift (24 in) (lb)	2,425 lb	2,425 lb
Lift Height (in)	▲ 107.7 in	106.6 in
Breakout Force (lbf)	3,660 lbf	3,660 lbf
Hydraulic Flow (gpm)	16.4 gpm	▲ 16.5 gpm
Travel Speed (mph)	16 mph	▲ 19.5 mph

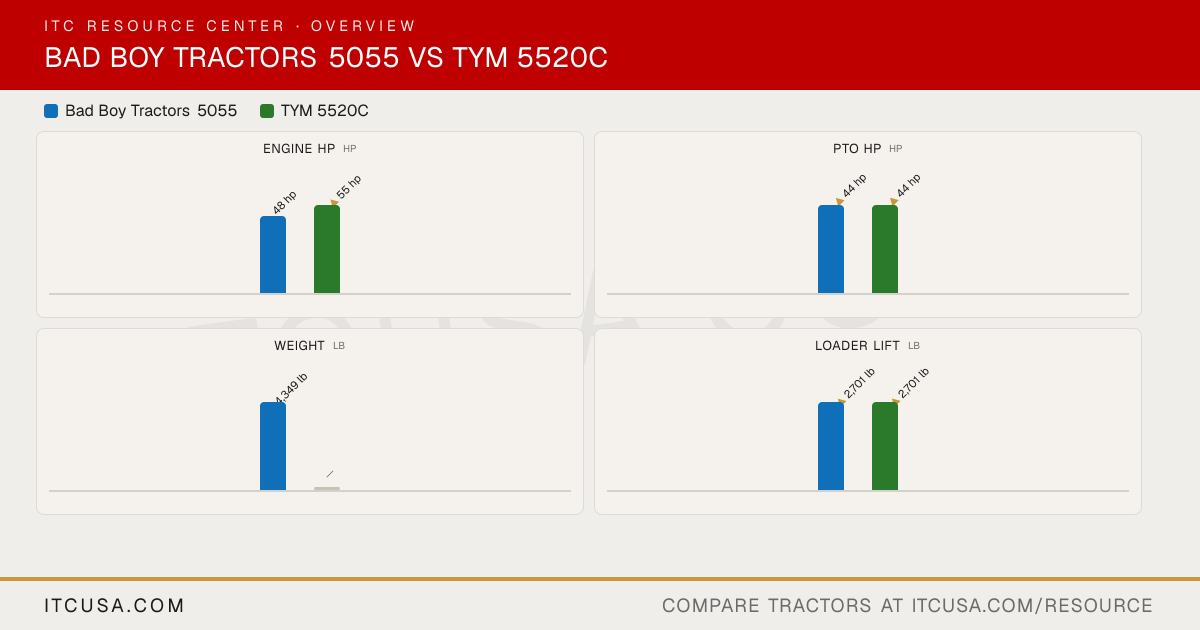

The headline numbers at a glance.

Bad Boy Tractors 5055TYM 5520C

Engine HPhp

48 hp

▲55 hp

PTO HPhp

▲44 hp

Weightlb

4,349 lb

—

Loader Liftlb

▲2,701 lb

3-Pt Lift (24 in)lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	TYM5520C


PTO Power	44 hp	44 hp
Alternator	70 A	70 A, 12 V
Air Cleaner	Dry Element	Dry element
Engine Type	4-cylinder, water-cooled diesel	4-cylinder, turbocharged diesel
Fuel System	Diesel	IDI
Displacement	139.5 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	TYM
Engine Power (Gross)	48 hp	55 hp
Engine Emissions Constraints	DPF / DOC	Tier 4

Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Applicable
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Hydrostatic Power Steering	Dual gear pump
Steering Flow	5.0 gpm	5.2 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	11.4 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	16.5 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	16.5 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	Not Published
No. of Standard Remote Valves	Not Published	4

PTO Rear	540 / 540E rpm	540/750 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	3,306 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb

R3 Turf - Rear	Not Published	41x14-20 / 44x18-20
R3 Turf - Front	Not Published	27x8.5-15 / 29x12.5-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	17.5Lx24
R4 Industrial - Front	Not Published	12-16.5
R1 Agricultural - Rear	Not Published	13.6-26
R1 Agricultural - Front	Not Published	9.5-16

Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	8.3 qt
Crankcase Capacity	1.20 gal	4.8 qt
Fuel Tank Capacity	11.8 gal	11.8 gal
Front Axle Fluid Capacity	1.90 gal	6.8 qt
Transmission / Hydraulic System Capacity	10.04 gal	HST: 11.1 gal; Gear: 10.3 gal

Loader Lift Height	107.7 in (pivot pin)	106.6 in
Loader Breakout Force	3,660 lb	3,660 lb
Quick Attach Loader System	SSQA	BL200C: Quick attach mechanism
Loader Lift Capacity (Full Height)	2,701 lb	2,701 lb

Clutch	Not Published	Dry single type (N/A)
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	HST: 4-Range; Gear: F16 x R16 (4-Range)
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	HST: Hydrostatic (HST); Gear: Synchromesh
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	HST: 19.5 mph; Gear: 16 mph
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock system

Brakes	Wet, Multi-disc	Wet, multi disc
Steering	Power steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Suspension seat

Wheelbase	71.1 in.	71.1 in
Overall Width	64.9 in.	64.9 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	15.5 in
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	Not Applicable
Height to Top of Cab Model	Not Applicable	97 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	L: 128.7 in; R: 126.0 in
Overall Length with 3-Point Hitch	127.4 in	127.4 in
