Bad Boy Tractors 5055 vs TYM 5835

Across 8 measurable specs, the TYM 5835 leads 8 categories to 0. Machine pages: Bad Boy Tractors 5055 and TYM 5835.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

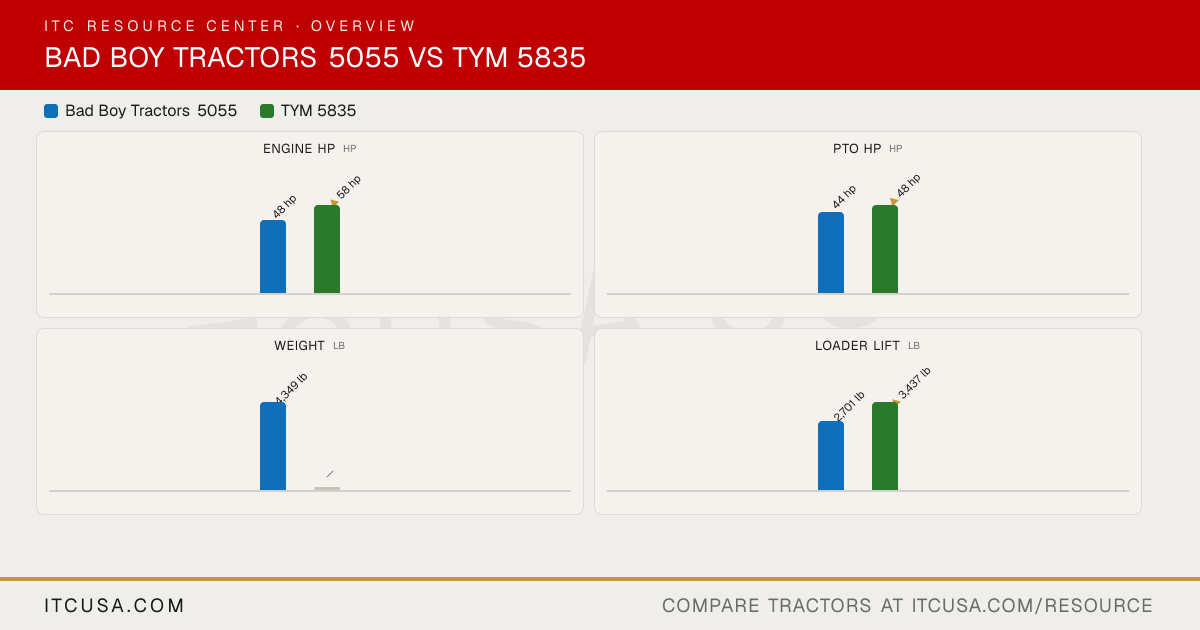

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	TYM5835

▶Engine
PTO Power	44 hp	48 hp
Alternator	70 A	70 A, 12 V
Air Cleaner	Dry Element	Dry element
Engine Type	4-cylinder, water-cooled diesel	4-cylinder, turbocharged diesel
Fuel System	Diesel	IDI
Displacement	139.5 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	TYM
Engine Power (Gross)	48 hp	58 hp
Engine Emissions Constraints	DPF / DOC	Tier 4
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Single gear pump
Steering Flow	5.0 gpm	5.2 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	11.4 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	16.5 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	16.5 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	Not Published
No. of Standard Remote Valves	Not Published	Loader: 4; Rear: 2
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Mechanical
Hitch Lift Capacity	3,306 lb	4,409 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category II
Hitch Lift Capacity (at 24”)	2,425 lb	3,748 lb
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	Not Published	16.9-24
R4 Industrial - Front	Not Published	10.5/80-18
R1 Agricultural - Rear	Not Published	14.9-28
R1 Agricultural - Front	Not Published	9.5-20
▶Fluid Capacity
Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	6.2 qt
Crankcase Capacity	1.20 gal	4.8 qt
Fuel Tank Capacity	11.8 gal	15.3 gal
Front Axle Fluid Capacity	1.90 gal	6.8 qt
Transmission / Hydraulic System Capacity	10.04 gal	11.6 gal
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	117.5 in
Loader Breakout Force	3,660 lb	4,742 lb
Quick Attach Loader System	SSQA	BL350: Quick attachment assembly
Loader Lift Capacity (Full Height)	2,701 lb	3,437 lb
▶Transmission & Drivetrain
Clutch	Not Published	Wet, multi-disc
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	F12 x R12
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	Power shuttle
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	19.9 mph
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet, multi-disc
Steering	Power steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Suspension seat
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	78.7 in
Overall Width	64.9 in.	68.9 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	18.1 in
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	102.8 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	L: 124.4 in; R: 124.0 in
Overall Length with 3-Point Hitch	127.4 in	136.4 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Bad Boy Tractors 5055 vs TYM 5835: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the TYM 5835?

The TYM 5835 leads on engine hp at 58 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the TYM 5835?

The TYM 5835 leads on pto hp at 48 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the TYM 5835?

The TYM 5835 leads on loader lift at 3,437 lb lb, compared to 2,701 lb lb for the Bad Boy Tractors 5055.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the TYM 5835?

The TYM 5835 leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
