Bad Boy Tractors 5055 vs TYM T474C

Across 9 measurable specs, the Bad Boy Tractors 5055 leads 7 categories to 2. Machine pages: Bad Boy Tractors 5055 and TYM T474C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	TYMT474C

▶Engine
PTO Power	44 hp	35.9 hp
Alternator	70 A	70 A, 12 V
Air Cleaner	Dry Element	Single dry
Engine Type	4-cylinder, water-cooled diesel	4-cylinder, naturally aspirated diesel
Fuel System	Diesel	IDI
Displacement	139.5 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	TYM
Engine Power (Gross)	48 hp	48.3 hp
Engine Emissions Constraints	DPF / DOC	Stage V
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Applicable
Weight with Cab and Loader	Not Applicable	4,628 lb
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Dual gear pump
Steering Flow	5.0 gpm	4.2 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	7.7 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	11.9 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	11.9 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	Not Published
No. of Standard Remote Valves	Not Published	1
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	3,306 lb	2,689.6 lb
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1,764 lb
▶Tire Options
R3 Turf - Rear	Not Published	12.5x20
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.5-15 NHS TL 4PR
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	Xtra Grip 43x16.00-20 NHS TL 6PR
R4 Industrial - Front	Not Published	Trac Chief 10-16.50 NHS TL 6PR
R1 Agricultural - Rear	Not Published	Farm Specialist 12.4-24 NHS TL 6PR
R1 Agricultural - Front	Not Published	Farm Specialist 8.0-16 NHS TL 6PR
▶Fluid Capacity
Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	6.9 qt
Crankcase Capacity	1.20 gal	6.8 qt
Fuel Tank Capacity	11.8 gal	9.0 gal
Front Axle Fluid Capacity	1.90 gal	8.7 qt
Transmission / Hydraulic System Capacity	10.04 gal	8.5 gal
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	105.6 in
Loader Breakout Force	3,660 lb	3,198 lb
Quick Attach Loader System	SSQA	TX47: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	2,701 lb	2,152 lb
▶Transmission & Drivetrain
Clutch	Not Published	Dry single plate
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	F12 x R12
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	Mechanical
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	14.9 mph
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Wet disc
Steering	Power steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	69.7 in
Overall Width	64.9 in.	54.5 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	12.8 in
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	Not Applicable
Height to Top of Cab Model	Not Applicable	92.5 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	117.5 in
Overall Length with 3-Point Hitch	127.4 in	131 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

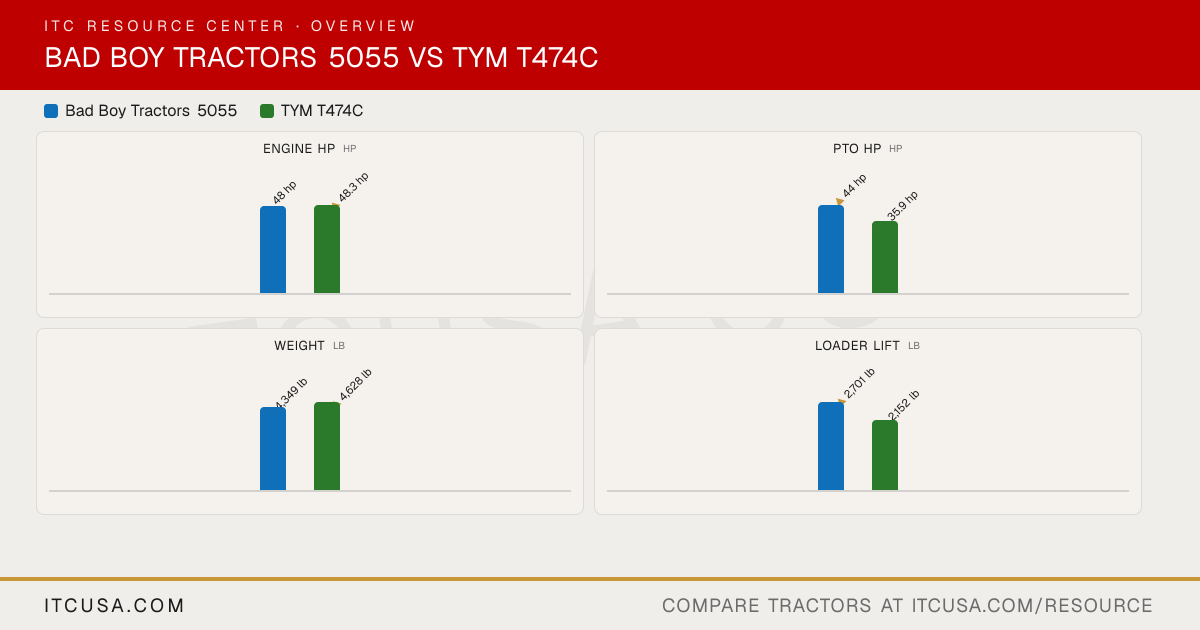

Bad Boy Tractors 5055 vs TYM T474C: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the TYM T474C?

The TYM T474C leads on engine hp at 48.3 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the TYM T474C?

The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 35.9 hp hp for the TYM T474C.

Which is heavier, the Bad Boy Tractors 5055 or the TYM T474C?

The TYM T474C leads on weight at 4,628 lb lb, compared to 4,349 lb lb for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the TYM T474C?

The Bad Boy Tractors 5055 leads on loader lift at 2,701 lb lb, compared to 2,152 lb lb for the TYM T474C.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the TYM T474C?

The Bad Boy Tractors 5055 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,764 lb lb for the TYM T474C.
