Which has more horsepower, the Bad Boy Tractors 5055 or the TYM T574C?

The TYM T574C leads on engine hp at 55 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5055.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the TYM T574C?

The TYM T574C leads on pto hp at 44.7 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055.

Which is heavier, the Bad Boy Tractors 5055 or the TYM T574C?

The TYM T574C leads on weight at 5,353 lb lb, compared to 4,349 lb lb for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the TYM T574C?

The TYM T574C leads on loader lift at 2,790 lb lb, compared to 2,701 lb lb for the Bad Boy Tractors 5055.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the TYM T574C?

The TYM T574C leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.

Bad Boy Tractors 5055 vs TYM T574C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T574C leads 8 categories to 1. Machine pages: Bad Boy Tractors 5055 and TYM T574C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 5055	TYM T574C
Engine HP (hp)	48 hp	▲ 55 hp
PTO HP (hp)	44 hp	▲ 44.7 hp
Weight (lb)	4,349 lb	▲ 5,353 lb
Loader Lift (lb)	2,701 lb	▲ 2,790 lb
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 3,050.6 lb
Lift Height (in)	107.7 in	▲ 109.4 in
Breakout Force (lbf)	3,660 lbf	▲ 5,316 lbf
Hydraulic Flow (gpm)	▲ 16.4 gpm	11.9 gpm
Travel Speed (mph)	16 mph	▲ 18.6 mph

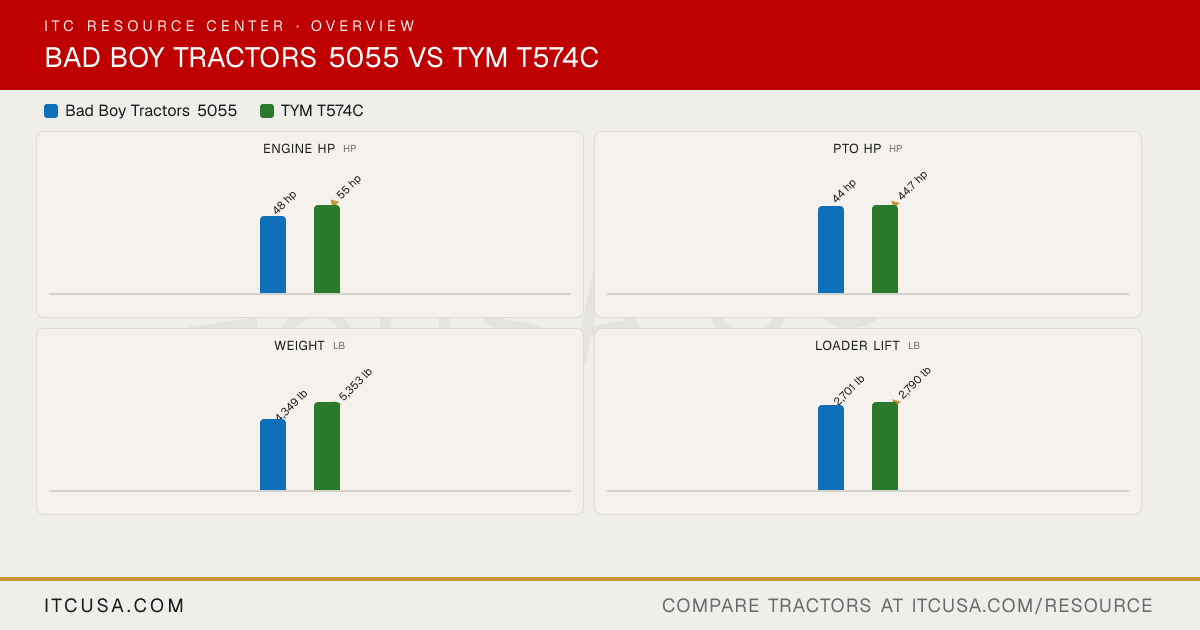

The headline numbers at a glance.

Bad Boy Tractors 5055TYM T574C

Engine HPhp

48 hp

▲55 hp

PTO HPhp

44 hp

▲44.7 hp

Weightlb

4,349 lb

▲5,353 lb

Loader Liftlb

2,701 lb

▲2,790 lb

3-Pt Lift (24 in)lb

2,425 lb

▲3,050.6 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	TYMT574C


PTO Power	44 hp	44.7 hp
Alternator	70 A	70 A, 12 V
Air Cleaner	Dry Element	Single dry
Engine Type	4-cylinder, water-cooled diesel	4-cylinder, turbocharged diesel
Fuel System	Diesel	IDI
Displacement	139.5 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	TYM
Engine Power (Gross)	48 hp	55 hp
Engine Emissions Constraints	DPF / DOC	Tier 4

Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	Not Applicable
Weight with Cab and Loader	Not Applicable	5,353 lb

Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Hydrostatic Power Steering	Dual gear pump
Steering Flow	5.0 gpm	4.3 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	7.7 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	11.9 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	11.9 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	Not Published
No. of Standard Remote Valves	Not Published	2

PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Not Published	Position/Draft
Hitch Lift Capacity	3,306 lb	3,822 lb
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	3,050.6 lb

R3 Turf - Rear	Not Published	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	Xtra Grip 17.5Lx24 NHS TL 6PR
R4 Industrial - Front	Not Published	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	Not Published	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	Not Published	Farm Specialist 9.5-16 NHS TL 6PR

Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	6.9 qt
Crankcase Capacity	1.20 gal	6.8 qt
Fuel Tank Capacity	11.8 gal	17.0 gal
Front Axle Fluid Capacity	1.90 gal	10.5 qt
Transmission / Hydraulic System Capacity	10.04 gal	9.2 gal

Loader Lift Height	107.7 in (pivot pin)	109.4 in
Loader Breakout Force	3,660 lb	5,316 lb
Quick Attach Loader System	SSQA	TX57: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	2,701 lb	2,790 lb

Clutch	Not Published	Dry single plate
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	F8 x R8
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	Synchro-shuttle
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	18.6 mph
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet, Multi-disc	Wet disc
Steering	Power steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Not Published

Wheelbase	71.1 in.	76.2 in
Overall Width	64.9 in.	63.8 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	13.8 in
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	Not Applicable
Height to Top of Cab Model	Not Applicable	98 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	131.5 in
Overall Length with 3-Point Hitch	127.4 in	141.3 in
