Bad Boy Tractors 5055 vs Yanmar YT347

Across 9 measurable specs, the Yanmar YT347 leads 5 categories to 4. Machine pages: Bad Boy Tractors 5055 and Yanmar YT347.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055	YanmarYT347

▶Engine
PTO Power	44 hp	39.5 hp
Alternator	70 A	55 A, 12 V
Air Cleaner	Dry Element	Dual stage cyclonic (resin 5.5")
Engine Type	4-cylinder, water-cooled diesel	4-cylinder, naturally aspirated diesel
Fuel System	Diesel	Common rail direct injection
Displacement	139.5 in³	133.6 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Not Published	Liquid cooled
Engine Manufacturer	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)	YANMAR
Engine Power (Gross)	48 hp	46 hp
Engine Emissions Constraints	DPF / DOC	Tier 4
▶Weight
Tractor Weight (Base)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	3,836 lb (tractor only)	4,976 lb
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
▶Hydraulics
Pump Type	Hydrostatic Power Steering	Not Published
Steering Flow	5.0 gpm	5.7 gpm
Implement Flow	5055S: 11.4 gpm; 5055H: 10.7 gpm	10.1 gpm
Total Hydraulic Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	15.8 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055S: 16.4 gpm; 5055H: 15.7 gpm	15.8 gpm
No. of Optional Remote Valves	Up to 2 rear SCVs	1
No. of Standard Remote Valves	Not Published	2
▶PTO & Hitch
PTO Rear	540 / 540E rpm	540 rpm
PTO Type	Independent	Independent (electro-hydraulic)
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	3,306 lb	3,307 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,756 lb
▶Tire Options
R3 Turf - Rear	Not Published	44 x 18 - 20.0
R3 Turf - Front	Not Published	27.0 - 10.5
Tire Size & Options	Not Published	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	Not Published	4.6 gal - 24.0
R4 Industrial - Front	Not Published	10.0 - 16.5
R1 Agricultural - Rear	Not Published	14.9 - 24.0
R1 Agricultural - Front	Not Published	8.0 - 16.0
▶Fluid Capacity
Coolant Capacity	CABIN: 1.56 gal, ROPS: 2.08 gal	6.2 qt
Crankcase Capacity	1.20 gal	7.0 qt
Fuel Tank Capacity	11.8 gal	12.7 gal
Front Axle Fluid Capacity	1.90 gal	2.4 gal
Transmission / Hydraulic System Capacity	10.04 gal	7.7 gal
▶Loader & Attachments
Loader Lift Height	107.7 in (pivot pin)	113 in
Loader Breakout Force	3,660 lb	3,969 lb
Quick Attach Loader System	SSQA	YL610: Skid-steer-style loader quick attachment system
Loader Lift Capacity (Full Height)	2,701 lb	2,500 lb
▶Transmission & Drivetrain
Clutch	Not Published	Clutch-less shifting (i-HMT)
No. of Speeds	5055S: 16F/16R; 5055H: 4-range	3 ranges (variable speed)
Transmission Type	Synchromesh (Mechanical models) or HST (Hydrostatic models)	I-HMT (Integrated Hydro Mechanical Transmission)
Max Travel Speed (Forward)	16.0 mph Synchro; 19.5 mph HST	18 mph
Max Travel Speed (Reverse)	15.2 mph Synchro; 19.5 mph HST	18 mph
Differential Lock & Limited Slip Options	Differential lock	Rear differential lock (foot pedal engagement)
▶Chassis, Steering & Controls
Brakes	Wet, Multi-disc	Mechanical wet disc
Steering	Power steering	Fully hydraulic power steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Selectable 4WD	Selectable 2WD/4WD engagement
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in.	75.9 in
Overall Width	64.9 in.	70.6 in
Overall Length	127.4 in.	—
Ground Clearance	15.5 in.	12.8 in
Height to Top of ROPS	CABIN: 97.0 in., ROPS: 98.4 in.	95.7 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	127.4 in	130.9 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

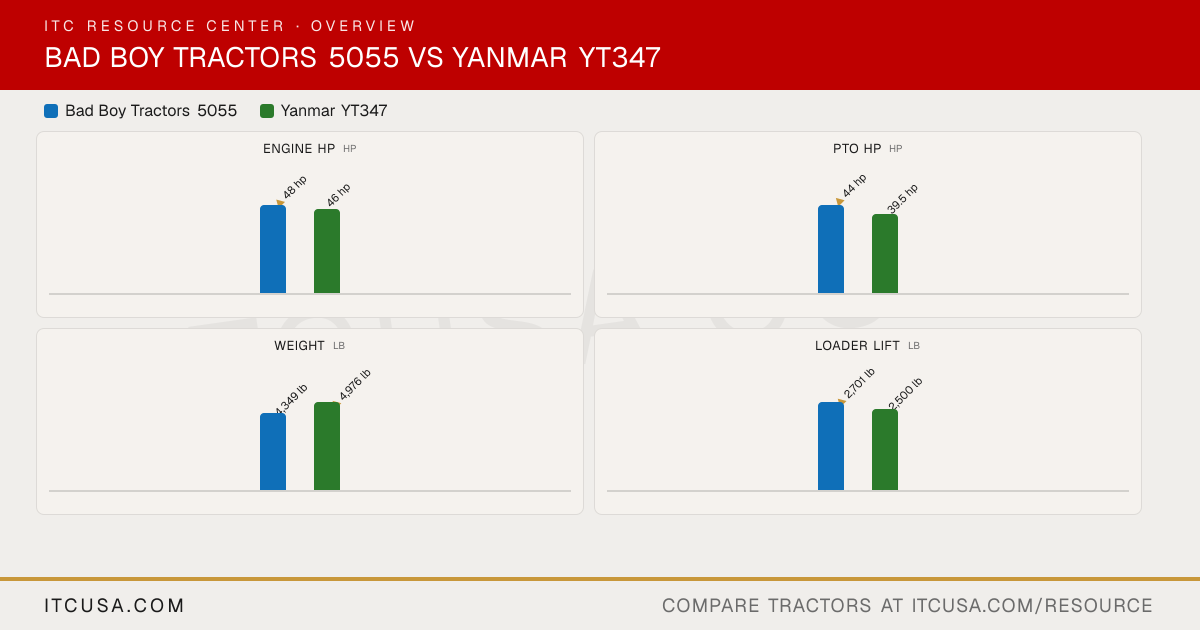

Bad Boy Tractors 5055 vs Yanmar YT347: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5055 or the Yanmar YT347?

The Bad Boy Tractors 5055 leads on engine hp at 48 hp hp, compared to 46 hp hp for the Yanmar YT347.

Which has more PTO horsepower, the Bad Boy Tractors 5055 or the Yanmar YT347?

The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 39.5 hp hp for the Yanmar YT347.

Which is heavier, the Bad Boy Tractors 5055 or the Yanmar YT347?

The Yanmar YT347 leads on weight at 4,976 lb lb, compared to 4,349 lb lb for the Bad Boy Tractors 5055.

Which has more loader lift capacity, the Bad Boy Tractors 5055 or the Yanmar YT347?

The Bad Boy Tractors 5055 leads on loader lift at 2,701 lb lb, compared to 2,500 lb lb for the Yanmar YT347.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 or the Yanmar YT347?

The Yanmar YT347 leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055.
