Bad Boy Tractors 5055 Cab vs Kubota M6040

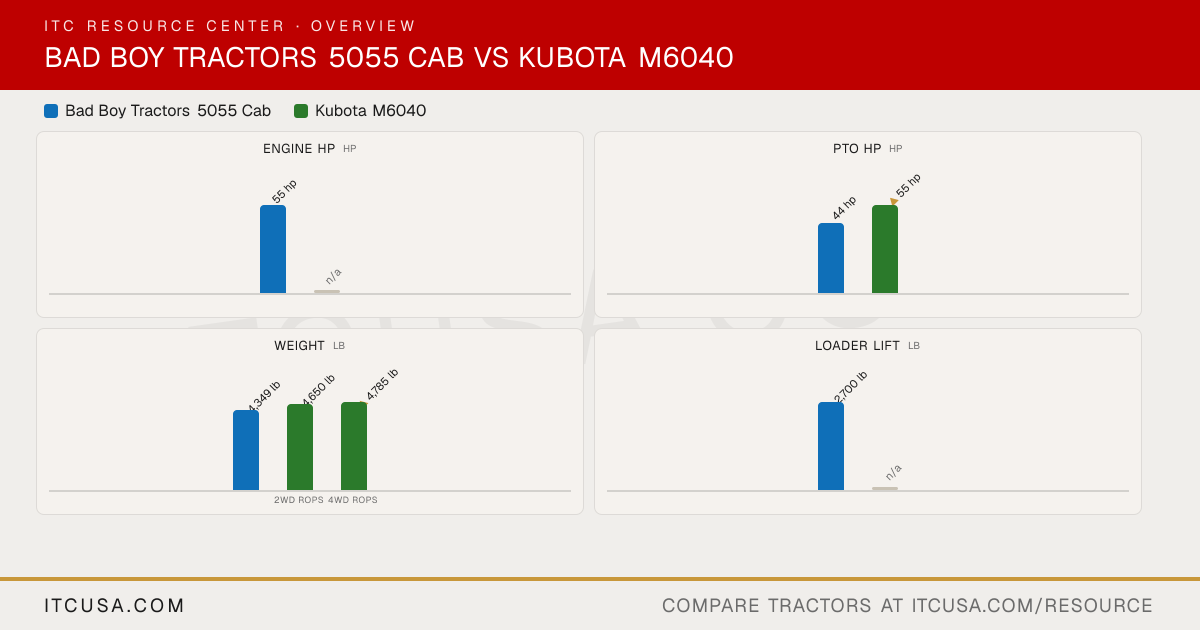

Across 6 measurable specs, the Kubota M6040 leads 5 categories to 1. Machine pages: Bad Boy Tractors 5055 Cab and Kubota M6040.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055 Cab	KubotaM6040

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A2300T11	V3307-DI
Engine Type	4 cylinder water-cooled diesel, turbocharged	4-cylinder inline, direct injected diesel
No. of Cylinders	4	4
Displacement	139.5 in³	203 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	55 hp	Not Published
PTO Power	44 hp	55 hp
Engine Emissions Constraints	Tier 4	Tier 2
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	8 in dry, dual element
Fuel System	Not Published	Direct injection
Alternator	70 A, 12 V	ROPS: 45 A, 12 V; Cab: 60 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	10.7 gpm	11.0 gpm
Steering Flow	5 gpm	6.1 gpm
Total Hydraulic Flow	15.7 gpm	17.1 gpm (11.0 + 6.1, computed)
Overall Hydraulic Pump Flow	15.7 gpm	17.1 gpm (11.0 + 6.1, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	11.0 gpm
No. of Standard Remote Valves	4 ports	1
No. of Optional Remote Valves	Not Published	2nd and 3rd optional
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	ROPS: 18.5 gal; Cab: 29.1 gal
Coolant Capacity	1.56 gal	8.5 qt
Crankcase Capacity	1.20 gal	11.6 qt
Transmission / Hydraulic System Capacity	10.04 gal	59.2 qt
Front Axle Fluid Capacity	1.90 gal	Front differential case: 5.8 qt; front axle gear case: 3.7 qt each side
▶PTO & Hitch
PTO Type	Independent	Live, independent PTO, hydraulically operated wet clutch with PTO brake
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I and II
Hitch Lift Capacity	3,306 lb	4,189 lb
Hitch Lift Capacity (at 24”)	2,425 lb	3,307 lb
Lift Control Type	Position control	Position, draft (top link sensing) and mix control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models
No. of Speeds	4 range (HST)	8F/8R (12F/12R with optional creep)
Max Travel Speed (Forward)	19.5 mph	17.8 mph
Max Travel Speed (Reverse)	19.5 mph	18.0 mph
Clutch	None (HST)	Dry single plate (synchro shuttle); multiple wet discs (hydraulic shuttle)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (bevel gears)
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Two-post foldable ROPS (canopy optional); Ultra Grand Cab optional
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Multiple wet disc, mechanical
Seat Suspension & Adjustability	Heated leather seat (cab)	Reclining, fully adjustable seat (height, weight, fore-aft, armrests) with retractable seat belt; optional air-suspension seat (cab)
Front Axle Type	Selectable 4WD	4WD: bevel-gear type, on-the-go engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	2,200 lb
▶Dimensions & Maneuverability
Overall Width	64.9 in	73.2 in
Wheelbase	71.1 in	2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in
Ground Clearance	15.5 in	15.4 in
Min. Turn Radius without Brakes	9.18 ft (with brake applied)	2WD: 11.2 ft; 4WD: 11.8 ft
Height to Top of ROPS	Not Published	96.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	99.8 in
Overall Length	127.4 in (with 3-point hitch)	2WD: 140.4 in; 4WD: 135.6 in
▶Weight
Tractor Weight (Base)	4,349 lb	2WD ROPS: 4,650 lb; 4WD ROPS: 4,785 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Standard: 7.50-16 (2WD) or 9.5-24 (4WD) front, 16.9-28 rear
R1 Agricultural - Front	9.5-16	2WD: 7.5-16; 4WD: 9.5-24
R1 Agricultural - Rear	13.6-26	16.9-28
R3 Turf - Front	Not Published	2WD: 29x12.5-15 or 27x9.5-15
R3 Turf - Rear	Not Published	2WD: 21.5L-16.1 or 16.9-24
R4 Industrial - Front	Not Published	12.5/80-18 (4WD)
R4 Industrial - Rear	Not Published	16.9-24 (4WD)
▶Loader & Attachments
Quick Attach Loader System	SSQA	LA1153: two-lever quick coupler
Loader Model	BBL500	LA1153
Loader Lift Height	106.6 in	LA1153 height position: 132.7 in; LA1153 power position: 117.2 in
Loader Lift Capacity (Full Height)	2,700 lb (at pivot pin)	Not Published
Loader Breakout Force	3,660 lb	Not Published
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 5055 Cab vs Kubota M6040: Quick Answers

Which has more PTO horsepower, the Bad Boy Tractors 5055 Cab or the Kubota M6040?

The Kubota M6040 leads on pto hp at 55 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055 Cab.

Which is heavier, the Bad Boy Tractors 5055 Cab or the Kubota M6040?

The Kubota M6040 leads on weight at 4,785 lb lb, compared to 4,349 lb lb for the Bad Boy Tractors 5055 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 Cab or the Kubota M6040?

The Kubota M6040 leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055 Cab.
