Which has more horsepower, the Bad Boy Tractors 5055 Cab or the LS Tractor MT463?

The LS Tractor MT463 leads on engine hp at 63 hp hp, compared to 55 hp hp for the Bad Boy Tractors 5055 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5055 Cab or the LS Tractor MT463?

The LS Tractor MT463 leads on pto hp at 54.1 hp hp, compared to 44 hp hp for the Bad Boy Tractors 5055 Cab.

Which is heavier, the Bad Boy Tractors 5055 Cab or the LS Tractor MT463?

The LS Tractor MT463 leads on weight at 6,503 lb lb, compared to 4,349 lb lb for the Bad Boy Tractors 5055 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 5055 Cab or the LS Tractor MT463?

The LS Tractor MT463 leads on loader lift at 3,488 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5055 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 Cab or the LS Tractor MT463?

The LS Tractor MT463 leads on 3-pt lift (24 in) at 3,483 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055 Cab.

Bad Boy Tractors 5055 Cab vs LS Tractor MT463

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor MT463 leads 7 categories to 0. Machine pages: Bad Boy Tractors 5055 Cab and LS Tractor MT463.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 5055 Cab	LS Tractor MT463
Engine HP (hp)	55 hp	▲ 63 hp
PTO HP (hp)	44 hp	▲ 54.1 hp
Weight (lb)	4,349 lb	▲ 6,503 lb
Loader Lift (lb)	2,700 lb	▲ 3,488 lb
3-Pt Lift (24 in) (lb)	2,425 lb	▲ 3,483 lb
Lift Height (in)	106.6 in	▲ 132.9 in
Breakout Force (lbf)	3,660 lbf	—
Hydraulic Flow (gpm)	16.4 gpm	▲ 21.7 gpm
Travel Speed (mph)	19.5 mph	—

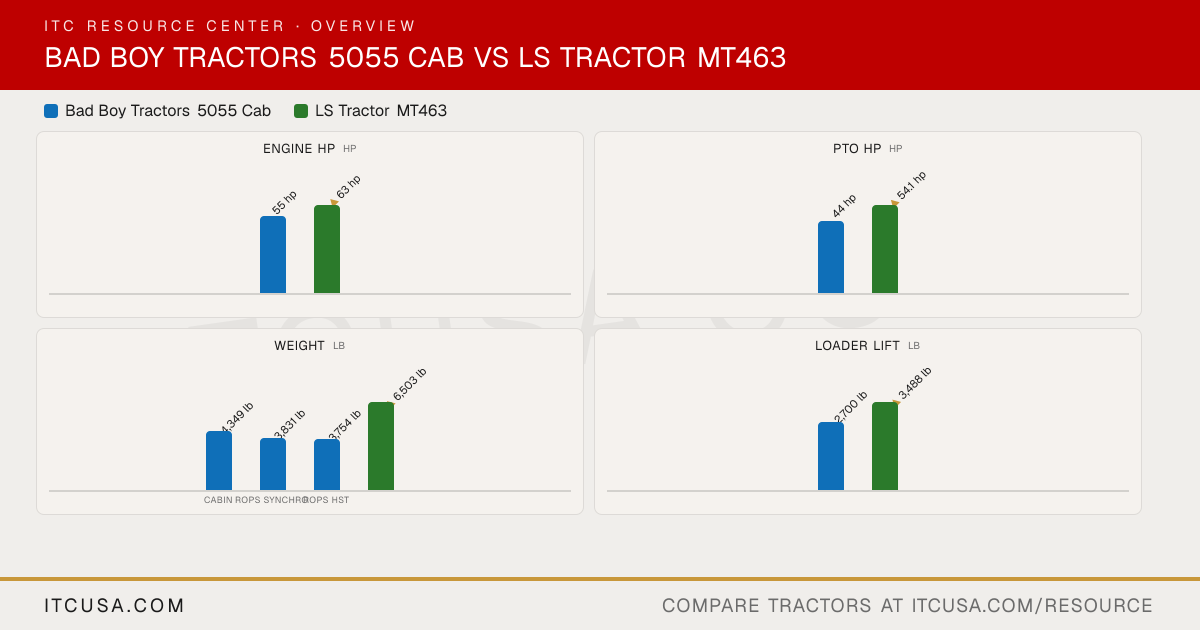

The headline numbers at a glance.

Bad Boy Tractors 5055 CabLS Tractor MT463

Engine HPhp

55 hp

▲63 hp

PTO HPhp

44 hp

▲54.1 hp

Weightlb

4,349 lb

3,831 lb

3,754 lb

▲6,503 lb

CABINROPS SynchroROPS HST

Loader Liftlb

2,700 lb

▲3,488 lb

3-Pt Lift (24 in)lb

2,425 lb

▲3,483 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055 Cab	LS TractorMT463


PTO Power	44 hp	54.1 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dry Element	Dry
Engine Type	4-cylinder, water-cooled diesel	In-line vertical, water cooled 4-cycle diesel, CRDI
Fuel System	Water-Cooled Diesel	Delphi, CRDI
Displacement	139.5 in³	152.9 in³
Engine Model	A2300T3-UTR_4	—
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2500 rpm
Cooling System Type	Water-Cooled	Water-cooled
Engine Manufacturer	A2300T11	LS Mtron
Engine Power (Gross)	55 hp	63 hp
Engine Emissions Constraints	Tier 4	Tier 4

Tractor Weight (Base)	CABIN: 4,349 lbs; ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb); ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	Not Applicable	6,503 lb
Weight with Cab and Loader	4,349 lb (tractor only)	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Not Published	Gear type, engine drive
Steering Flow	5 GPM	6.8 gpm
Implement Flow	5055CS: 11.4 gpm; 5055CH: 10.7 gpm	14.9 gpm
Total Hydraulic Flow	5055CS: 16.4 gpm; 5055CH: 15.7 gpm	21.7 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	Not published in source	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055CS: 16.4 gpm; 5055CH: 15.7 gpm	21.7 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	2 Remotes	2 Pairs (Front), 2 Pairs (Rear)

PTO Rear	540 / 540E RPM	540 / 540E
PTO Type	Independent	Independent
Lift Control Type	Position	Position & Draft
Hitch Lift Capacity	3,306 lb	4,079 lbs
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I	Category II
Hitch Lift Capacity (at 24”)	2,425 lb	3,483 lbs

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	R1 Agricultural	Multiple options available (Standard Ag, Industrial, Large Ag, R14)
R4 Industrial - Rear	Not Published	19.5LX24
R4 Industrial - Front	Not Published	10.5/80X18
R1 Agricultural - Rear	13.6 - 26	16.9-30
R1 Agricultural - Front	9.5 - 16	11.2-24

Coolant Capacity	1.56 gal	3.0 gal
Crankcase Capacity	1.20 gal	1.8 gal
Fuel Tank Capacity	11.8 gal	24.3 gal
Front Axle Fluid Capacity	1.90 gal	2.3 gal
Transmission / Hydraulic System Capacity	10.04 gal	16.5 gal

Loader Model	BBL500	—
Loader Lift Height	106.6 in	132.9 in
Loader Breakout Force	3,660 lbs.	Not Published
Quick Attach Loader System	SSQA	LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA)
Loader Lift Capacity (Full Height)	2,700 lbs.	3,488 lb

Clutch	Dry Single Type (N/A)	Dry single clutch
No. of Speeds	5055CS: 16F/16R; 5055CH: 4-range	F16 X R16
Transmission Type	Synchromesh (MEC models) or HST (Hydrostatic)	Synchro Shuttle
Max Travel Speed (Forward)	19.5 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Mechanical differential lock (pedal)

Brakes	Wet, Multi-disc	Wet, Multi-disc
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Seat With Suspension & Armrest

Wheelbase	71.1 in	83.1 in
Overall Width	64.9 in	72.6 in
Overall Length	127.4 in. with 3-point hitch	—
Ground Clearance	15.5 in	Not Published
Height to Top of ROPS	5055CS/CH - 97 in	113.9 in
Height to Top of Cab Model	97 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	9.18 feet (2.80 m)	12.8 ft (3.9 m)
Overall Length with 3-Point Hitch	127.4 in	154 in
