Across 4 measurable specs, this matchup is a dead heat: 2 categories to the Bad Boy Tractors 5055 Cab, 2 to the Massey Ferguson MF 268 XTRA. Machine pages: Bad Boy Tractors 5055 Cab and Massey Ferguson MF 268 XTRA .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 5055 Cab Massey Ferguson MF 268 XTRA Engine HP (hp) 55 hp ▲ 63 hpPTO HP (hp) 44 hp — Weight (lb) 4,349 lb — Loader Lift (lb) 2,700 lb — 3-Pt Lift (24 in) (lb) 2,425 lb ▲ 4,519 lbLift Height (in) 106.6 in — Breakout Force (lbf) 3,660 lbf — Hydraulic Flow (gpm) ▲ 16.4 gpm10 gpm Travel Speed (mph) ▲ 19.5 mph18.6 mph
Overview Loader Work PTO Work

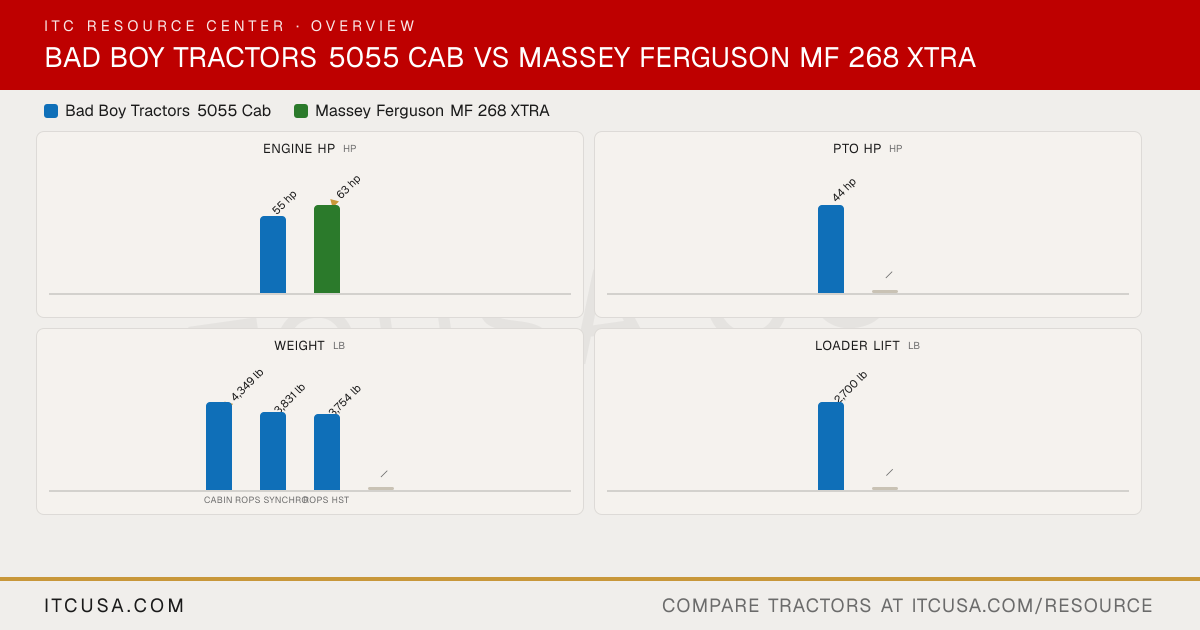

The headline numbers at a glance.
Bad Boy Tractors 5055 Cab Massey Ferguson MF 268 XTRA
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Weight lb
▲ 4,349 lb
3,831 lb
3,754 lb
—
CABIN ROPS Synchro ROPS HST
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 5055 Cab Massey Ferguson MF 268 XTRA
▶ EnginePTO Power 44 hp Not Published Alternator 70 A, 12 V Not Published Air Cleaner Dry Element Dry Type / Oil Bath Engine Type 4-cylinder, water-cooled diesel 4-cylinder diesel Fuel System Water-Cooled Diesel Not Published Displacement 139.5 in³ 219.7 in³ Engine Model A2300T3-UTR_4 — No. of Cylinders 4 4 Rated Engine Speed 2600 rpm 2200 rpm Cooling System Type Water-Cooled Not Published Engine Manufacturer A2300T11 Simpson Engine Power (Gross) 55 hp 63 hp Engine Emissions Constraints Tier 4 Not Published ▶ WeightTractor Weight (Base) CABIN: 4,349 lbs; ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb); ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb) — Weight with ROPS and Loader Not Applicable Not Published Weight with Cab and Loader 4,349 lb (tractor only) Not Published ▶ WarrantyWarranty Length & Coverage 6-year powertrain warranty Not Published ▶ HydraulicsPump Type Not Published Scotch yoke pump (rear axle mounted) Steering Flow 5 GPM 5.3 gpm Implement Flow 5055CS: 11.4 gpm; 5055CH: 10.7 gpm 4.8 gpm Total Hydraulic Flow 5055CS: 16.4 gpm; 5055CH: 15.7 gpm 10.0 gpm Hydraulic System Type Not Published Open centre System Operating Pressure Not published in source — Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 5055CS: 16.4 gpm; 5055CH: 15.7 gpm 10.0 gpm No. of Optional Remote Valves Not Published Not Published No. of Standard Remote Valves 2 Remotes Not Published ▶ PTO & HitchPTO Rear 540 / 540E RPM 540 rpm PTO Type Independent Live PTO Lift Control Type Position Ferguson System Hitch Lift Capacity 3,306 lb 4,519 lb Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT I Not Published Hitch Lift Capacity (at 24”) 2,425 lb Not Published ▶ Tire OptionsR3 Turf - Rear Not Published Not Published R3 Turf - Front Not Published Not Published Tire Size & Options R1 Agricultural R1 Agricultural R4 Industrial - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R1 Agricultural - Rear 13.6 - 26 16.9X28 R1 Agricultural - Front 9.5 - 16 2WD: 7.50X16; 4WD: 9.5X24 ▶ Fluid CapacityCoolant Capacity 1.56 gal Not Published Crankcase Capacity 1.20 gal Not Published Fuel Tank Capacity 11.8 gal 15.9 gal Front Axle Fluid Capacity 1.90 gal Not Published Transmission / Hydraulic System Capacity 10.04 gal Not Published ▶ Loader & AttachmentsLoader Model BBL500 — Loader Lift Height 106.6 in Not Published Loader Breakout Force 3,660 lbs. Not Published Quick Attach Loader System SSQA Not Published Loader Lift Capacity (Full Height) 2,700 lbs. Not Published ▶ Transmission & DrivetrainClutch Dry Single Type (N/A) Dual Dry Plate No. of Speeds 5055CS: 16F/16R; 5055CH: 4-range 8F / 2R Transmission Type Synchromesh (MEC models) or HST (Hydrostatic) Sliding mesh gearbox Max Travel Speed (Forward) 19.5 mph 18.6 mph Max Travel Speed (Reverse) 19.5 mph Not Published Differential Lock & Limited Slip Options Differential lock Mechanical differential lock (foot pedal) ▶ Chassis, Steering & ControlsBrakes Wet, Multi-disc Oil immersed, mechanical actuation Steering Hydrostatic Power Steering Hydrostatic Frame Type Compact utility tractor, 4WD Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Heated leather seat Not Published ▶ Dimensions & ManeuverabilityWheelbase 71.1 in 80.7 in Overall Width 64.9 in Not Published Overall Length 127.4 in. with 3-point hitch — Ground Clearance 15.5 in Not Published Height to Top of ROPS 5055CS/CH - 97 in 99.2 in Height to Top of Cab Model 97 in Not Published Height to Top of ROPS (folded) Not Applicable Not Published Min. Turn Radius without Brakes 9.18 feet (2.80 m) Not Published Overall Length with 3-Point Hitch 127.4 in 153.1 in
Bad Boy Tractors 5055 Cab vs Massey Ferguson MF 268 XTRA: Quick Answers
Which has more horsepower, the Bad Boy Tractors 5055 Cab or the Massey Ferguson MF 268 XTRA? The Massey Ferguson MF 268 XTRA leads on engine hp at 63 hp hp, compared to 55 hp hp for the Bad Boy Tractors 5055 Cab.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 Cab or the Massey Ferguson MF 268 XTRA? The Massey Ferguson MF 268 XTRA leads on 3-pt lift (24 in) at 4,519 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5055 Cab. More Head-to-Heads
