Which has more horsepower, the Bad Boy Tractors 5055 Cab or the TYM T474?

The Bad Boy Tractors 5055 Cab leads on engine hp at 55 hp hp, compared to 48.3 hp hp for the TYM T474.

Which has more PTO horsepower, the Bad Boy Tractors 5055 Cab or the TYM T474?

The Bad Boy Tractors 5055 Cab leads on pto hp at 44 hp hp, compared to 35.9 hp hp for the TYM T474.

Which is heavier, the Bad Boy Tractors 5055 Cab or the TYM T474?

The Bad Boy Tractors 5055 Cab leads on weight at 4,349 lb lb, compared to 4,310 lb lb for the TYM T474.

Which has more loader lift capacity, the Bad Boy Tractors 5055 Cab or the TYM T474?

The Bad Boy Tractors 5055 Cab leads on loader lift at 2,700 lb lb, compared to 2,152 lb lb for the TYM T474.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5055 Cab or the TYM T474?

The Bad Boy Tractors 5055 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,764 lb lb for the TYM T474.

Bad Boy Tractors 5055 Cab vs TYM T474

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 5055 Cab leads 9 categories to 0. Machine pages: Bad Boy Tractors 5055 Cab and TYM T474.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 5055 Cab	TYM T474
Engine HP (hp)	▲ 55 hp	48.3 hp
PTO HP (hp)	▲ 44 hp	35.9 hp
Weight (lb)	▲ 4,349 lb	4,310 lb
Loader Lift (lb)	▲ 2,700 lb	2,152 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,764 lb
Lift Height (in)	▲ 106.6 in	105.6 in
Breakout Force (lbf)	▲ 3,660 lbf	3,198 lbf
Hydraulic Flow (gpm)	▲ 16.4 gpm	11.9 gpm
Travel Speed (mph)	▲ 19.5 mph	14.9 mph

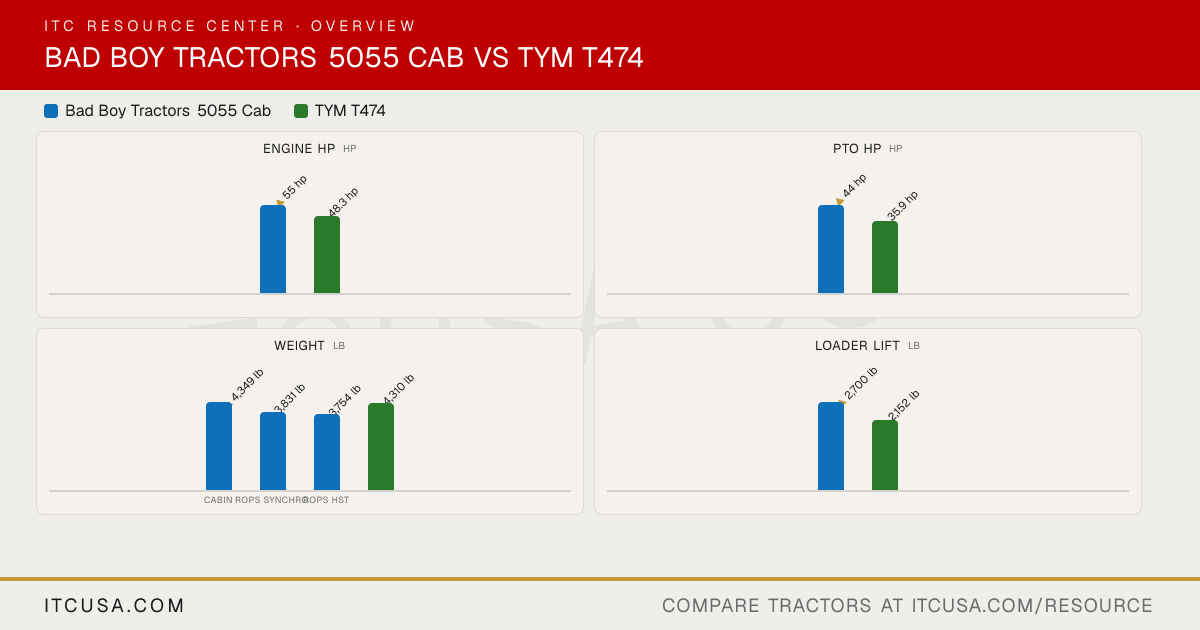

The headline numbers at a glance.

Bad Boy Tractors 5055 CabTYM T474

Engine HPhp

▲55 hp

48.3 hp

PTO HPhp

▲44 hp

35.9 hp

Weightlb

▲4,349 lb

3,831 lb

3,754 lb

4,310 lb

CABINROPS SynchroROPS HST

Loader Liftlb

▲2,700 lb

2,152 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,764 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055 Cab	TYMT474


PTO Power	44 hp	35.9 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dry Element	Single dry
Engine Type	4-cylinder, water-cooled diesel	4-cylinder, naturally aspirated diesel
Fuel System	Water-Cooled Diesel	IDI
Displacement	139.5 in³	139.5 in³
Engine Model	A2300T3-UTR_4	—
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-Cooled	Not Published
Engine Manufacturer	A2300T11	TYM
Engine Power (Gross)	55 hp	48.3 hp
Engine Emissions Constraints	Tier 4	Stage V

Tractor Weight (Base)	CABIN: 4,349 lbs; ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb); ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	—
Weight with ROPS and Loader	Not Applicable	4,310 lb
Weight with Cab and Loader	4,349 lb (tractor only)	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Dual gear pump
Steering Flow	5 GPM	4.2 gpm
Implement Flow	5055CS: 11.4 gpm; 5055CH: 10.7 gpm	7.7 gpm
Total Hydraulic Flow	5055CS: 16.4 gpm; 5055CH: 15.7 gpm	11.9 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	Not published in source	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055CS: 16.4 gpm; 5055CH: 15.7 gpm	11.9 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	2 Remotes	1

PTO Rear	540 / 540E RPM	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position control
Hitch Lift Capacity	3,306 lb	2,689.6 lb
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	CAT I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1,764 lb

R3 Turf - Rear	Not Published	12.5x20
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.5-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	Xtra Grip 43x16.00-20 NHS TL 6PR
R4 Industrial - Front	Not Published	Trac Chief 10-16.50 NHS TL 6PR
R1 Agricultural - Rear	13.6 - 26	Farm Specialist 12.4-24 NHS TL 6PR
R1 Agricultural - Front	9.5 - 16	Farm Specialist 8.0-16 NHS TL 6PR

Coolant Capacity	1.56 gal	6.9 qt
Crankcase Capacity	1.20 gal	6.8 qt
Fuel Tank Capacity	11.8 gal	9.0 gal
Front Axle Fluid Capacity	1.90 gal	8.7 qt
Transmission / Hydraulic System Capacity	10.04 gal	8.5 gal

Loader Model	BBL500	—
Loader Lift Height	106.6 in	105.6 in
Loader Breakout Force	3,660 lbs.	3,198 lb
Quick Attach Loader System	SSQA	TX47: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	2,700 lbs.	2,152 lb

Clutch	Dry Single Type (N/A)	Dry single plate
No. of Speeds	5055CS: 16F/16R; 5055CH: 4-range	F12 x R12
Transmission Type	Synchromesh (MEC models) or HST (Hydrostatic)	Mechanical
Max Travel Speed (Forward)	19.5 mph	14.9 mph
Max Travel Speed (Reverse)	19.5 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet, Multi-disc	Wet disc
Steering	Hydrostatic Power Steering	Hydrostatic
Frame Type	Compact utility tractor, 4WD	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Not Published

Wheelbase	71.1 in	69.7 in
Overall Width	64.9 in	54.5 in
Overall Length	127.4 in. with 3-point hitch	—
Ground Clearance	15.5 in	12.8 in
Height to Top of ROPS	5055CS/CH - 97 in	94.5 in
Height to Top of Cab Model	97 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	9.18 feet (2.80 m)	117.5 in
Overall Length with 3-Point Hitch	127.4 in	131 in
