Which has more horsepower, the Bobcat CT1025 or the New Holland Workmaster 25?

The Bobcat CT1025 leads on engine hp at 24.5 hp hp, compared to 24.4 hp hp for the New Holland Workmaster 25.

Which has more PTO horsepower, the Bobcat CT1025 or the New Holland Workmaster 25?

The Bobcat CT1025 leads on pto hp at 18.8 hp hp, compared to 17.3 hp hp for the New Holland Workmaster 25.

Which has more loader lift capacity, the Bobcat CT1025 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 608 lb lb for the Bobcat CT1025.

Which has more three-point hitch lift capacity, the Bobcat CT1025 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 700 lb lb for the Bobcat CT1025.

Bobcat CT1025 vs New Holland Workmaster 25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland Workmaster 25 leads 6 categories to 2. Machine pages: Bobcat CT1025 and New Holland Workmaster 25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bobcat CT1025	New Holland Workmaster 25
Engine HP (hp)	▲ 24.5 hp	24.4 hp
PTO HP (hp)	▲ 18.8 hp	17.3 hp
Weight (lb)	2,127 lb	—
Loader Lift (lb)	608 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	700 lb	▲ 1,433 lb
Lift Height (in)	71.9 in	▲ 72 in
Breakout Force (lbf)	1,554 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 12.5 gpm
Travel Speed (mph)	11.1 mph	▲ 14.3 mph

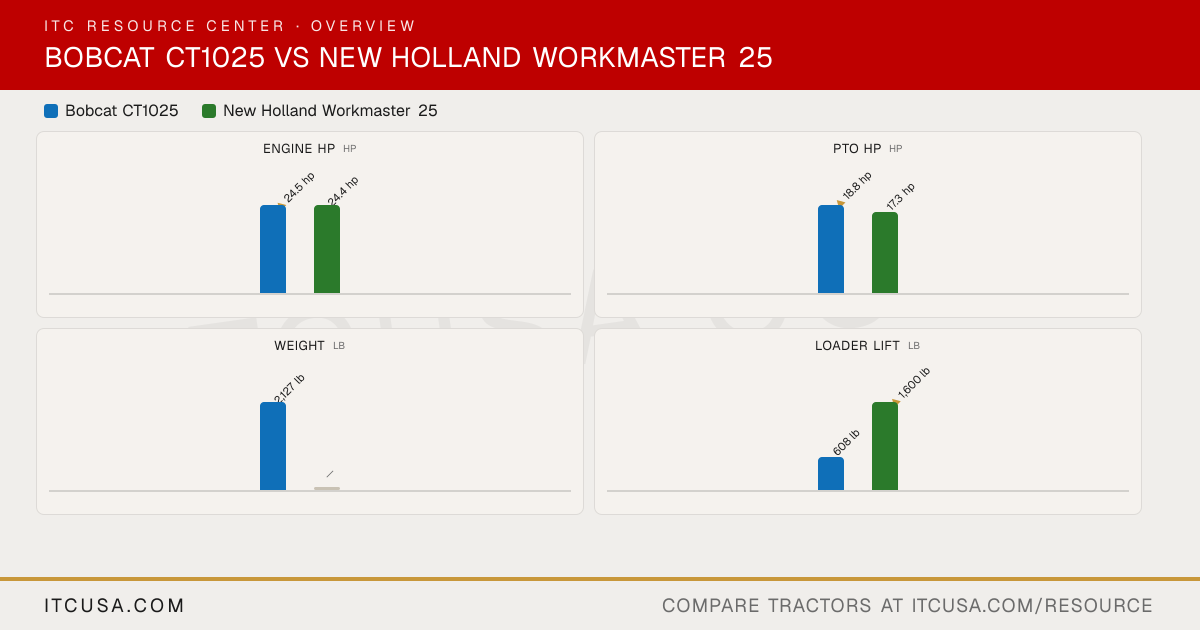

The headline numbers at a glance.

Bobcat CT1025New Holland Workmaster 25

Engine HPhp

▲24.5 hp

24.4 hp

PTO HPhp

▲18.8 hp

17.3 hp

Weightlb

2,127 lb

—

Loader Liftlb

608 lb

▲1,600 lb

3-Pt Lift (24 in)lb

700 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT1025	New HollandWorkmaster 25


PTO Power	18.8 hp	17.3 hp
Alternator	alternator	50 A, 12 V
Air Cleaner	Dry type, replaceable	Not Published
Engine Type	Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Diesel, Common Rail Direct Injection (CRDI)	In-line injection pump
Displacement	69.01 in³	80.4 in³
Engine Model	Shibaura 0.3 gal 3-cyl diesel	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2500 rpm
Cooling System Type	water cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	Shibaura	Mitsubishi
Engine Power (Gross)	24.5 hp	24.4 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	2,127 LB Approximate Operating Weight	Not Published
Weight with Cab and Loader	1652.00 KG	Not Applicable

Warranty Length & Coverage	24 months or 1,500 hours (whichever occurs first)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Mechanical
Steering Flow	16.90	4.6 gpm
Implement Flow	26.00	7.9 gpm
Total Hydraulic Flow	6.5 gpm	12.5 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	7.2 gpm	12.5 gpm
No. of Optional Remote Valves	1 Pair	1 or 2
No. of Standard Remote Valves	Std. (4 port)	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent, electro-hydraulic engagement
Lift Control Type	Hydraulic Position Control System	Position control
Hitch Lift Capacity	700 lb.	1,808 lb
Mid-PTO Availability	Standard: 2200 rpm	HST: Standard; Gear: Optional
Category, 3-Point Hitch	Category 1 Limited	Category I
Hitch Lift Capacity (at 24”)	700 lb	1,433 lb

R3 Turf - Rear	41x14.0-20 R3	41X14.00-20
R3 Turf - Front	27x8.5-15 R3	25X8.50-14
Tire Size & Options	Agricultural, Turf, Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5 R4	43X16-20
R4 Industrial - Front	25x8.5-14 R4	25X8.50-14
R1 Agricultural - Rear	26x12.00-12	11.2-24
R1 Agricultural - Front	18x8.5-10	7.0-14

Coolant Capacity	0.9 gal	5.2 qt
Crankcase Capacity	2 gal	4.4 qt
Fuel Tank Capacity	7.1 gal.	7.4 gal
Front Axle Fluid Capacity	1.6 gal	6.9 qt
Transmission / Hydraulic System Capacity	5.8 gal	8.5 gal

Loader Model	FL6	—
Loader Lift Height	71.9 in.	72 in
Loader Breakout Force	1554 lb.	2,637 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	200LC: Quick Mount system; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	608 lb.	1,600 lb

Clutch	Clutch-free (hydrostatic)	HST: Not Applicable; Gear: 9.4 in
No. of Speeds	2-Range	HST: 3-range; Gear: 12F/12R
Transmission Type	Hydrostatic	HST: 3-range hydrostatic; Gear: 12x12 mechanical shuttle
Max Travel Speed (Forward)	11.1 mph (17.8 km/hr.)	HST: 14.33 mph; Gear: 13.78 mph
Max Travel Speed (Reverse)	7.6 mph (12.2 km/hr.)	HST: 10.79 mph; Gear: 13.10 mph
Differential Lock & Limited Slip Options	Std	Mechanical rear differential lock

Brakes	Wet Multi-disc	Wet disc
Steering	Hydrostatic Power Steering	Power steering
Frame Type	4x4 MFWD 4WD	Not Published
Front Axle Type	MFWD	4WD (FWD)
Drawbar Capacity	650.00 KG	Not Published
Front Axle Rating	Manual(MEC)	Not Published
Seat Suspension & Adjustability	Std	Not Published

Wheelbase	55.1 in.	65.9 in
Overall Width	46.0 in.	54.1 in
Ground Clearance	6.3 in.	13 in
Height to Top of ROPS	87.56 in	88.2 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	2520.00 MM	68.2 in
Min. Turn Radius without Brakes	8.3 ft. (2.54 m)	120 in
Overall Length with 3-Point Hitch	99.3 in.	131 in
