Bad Boy Tractors 1022 vs New Holland Workmaster 25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 25 leads 9 categories to 0. Machine pages: Bad Boy Tractors 1022 and New Holland Workmaster 25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1022	New Holland Workmaster 25
Engine HP (hp)	21.5 hp	▲ 24.4 hp
PTO HP (hp)	15.4 hp	▲ 19.2 hp
Weight (lb)	1,433 lb	▲ 2,469 lb
Loader Lift (lb)	617 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,433 lb
Lift Height (in)	78.5 in	▲ 94.3 in
Breakout Force (lbf)	1,253 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 12.5 gpm
Travel Speed (mph)	7.8 mph	▲ 15.3 mph

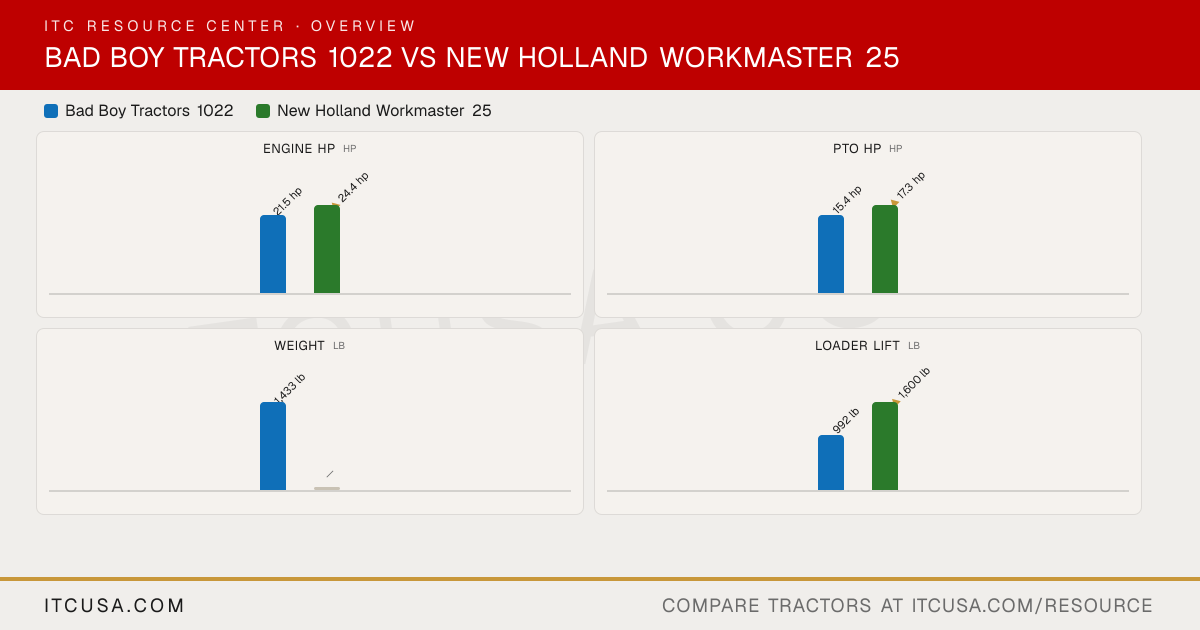

The headline numbers at a glance.

Bad Boy Tractors 1022New Holland Workmaster 25

Engine HPhp

21.5 hp

▲24.4 hp

PTO HPhp

15.4 hp

▲19.2 hp

17.1 hp

GearHST

Weightlb

1,433 lb

2,434 lb

▲2,469 lb

GearHST

Loader Liftlb

617 lb

▲1,600 lb

3-Pt Lift (24 in)lb

679 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	New HollandWorkmaster 25


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNM74F	S3L2-W461GT
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	3-cylinder, naturally aspirated, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	60.6 in³	80.4 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	24.4 hp
PTO Power	15.4 hp	Gear: 19.2 hp; HST: 17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4B (final)
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Single dry element	Dual element air cleaner (outer and inner element)
Fuel System	Indirect injection	In-line injection pump
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Single gear pump with flow divider	Mechanical
Implement Flow	4.17 gpm	7.9 gpm
Steering Flow	2.11 gpm	4.6 gpm
Total Hydraulic Flow	6.3 gpm	12.5 gpm
Overall Hydraulic Pump Flow	6.97 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1 or 2

Fuel Tank Capacity	6.6 gal	7.4 gal
Coolant Capacity	3.7 qt	1.3 gal
Crankcase Capacity	2.1 qt	4.4 qt
Transmission / Hydraulic System Capacity	3.6 gal	8.5 gal
Front Axle Fluid Capacity	2.6 qt	6.9 qt

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,808 lb
Hitch Lift Capacity (at 24”)	679 lb	1,433 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	2 range	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	7.8 mph	HST: 15.3 mph; Gear: 13.8 mph
Max Travel Speed (Reverse)	Not Published	Gear: 13.10 mph; HST: 10.79 mph
Clutch	Dry single plate	Gear: 9.4 in disc; HST: Not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Sub-compact tractor	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	44.5 in	54.1 in
Wheelbase	53.1 in	65.9 in
Ground Clearance	8.3 in	13 in
Min. Turn Radius without Brakes	86.6 in	120 in (left turn); 129.8 in (right turn)
Height to Top of ROPS	86.6 in	88.2 in
Height to Top of ROPS (folded)	Not Published	68.2 in
Height to Top of Cab Model	Not Published	Not Published
Overall Length	94.2 in (with 3-point hitch)	117.2 in

Tractor Weight (Base)	1,433 lb	Gear: 2,434 lb; HST: 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	16x7.50-9	7-14
R1 Agricultural - Rear	24x12.00-12	11.2-24
R3 Turf - Front	16x7.50-8	25x8.50-14
R3 Turf - Rear	26x12.00-12	41x14.00-20
R4 Industrial - Front	18x8.5-10	25x8.50-14
R4 Industrial - Rear	26x12-12	43x16-20

Quick Attach Loader System	Quick attach front loader	200LC: tool-free quick-mount system; optional skid-steer quick-attach plates
Loader Model	BBL100	200LC
Loader Lift Height	78.5 in (at pivot pin)	200LC: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	200LC: 1,600 lb (at bucket pivot pin, max height)
Loader Breakout Force	1,253 lbf	200LC: 2,637 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total

Find a Bad Boy dealer near you Find a New Holland dealer near you

Bad Boy Tractors 1022 vs New Holland Workmaster 25: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?: The New Holland Workmaster 25 leads on engine hp at 24.4 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?: The New Holland Workmaster 25 leads on pto hp at 19.2 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which is heavier, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?: The New Holland Workmaster 25 leads on weight at 2,469 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?: The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?: The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1022	New Holland Workmaster 25
Engine HP (hp)	21.5 hp	▲ 24.4 hp
PTO HP (hp)	15.4 hp	▲ 19.2 hp
Weight (lb)	1,433 lb	▲ 2,469 lb
Loader Lift (lb)	617 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,433 lb
Lift Height (in)	78.5 in	▲ 94.3 in
Breakout Force (lbf)	1,253 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 12.5 gpm
Travel Speed (mph)	7.8 mph	▲ 15.3 mph

The headline numbers at a glance.

Bad Boy Tractors 1022New Holland Workmaster 25

Engine HPhp

21.5 hp

▲24.4 hp

PTO HPhp

15.4 hp

▲19.2 hp

17.1 hp

GearHST

Weightlb

1,433 lb

2,434 lb

▲2,469 lb

GearHST

Loader Liftlb

617 lb

▲1,600 lb

3-Pt Lift (24 in)lb

679 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	New HollandWorkmaster 25


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNM74F	S3L2-W461GT
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	3-cylinder, naturally aspirated, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	60.6 in³	80.4 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	24.4 hp
PTO Power	15.4 hp	Gear: 19.2 hp; HST: 17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4B (final)
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Single dry element	Dual element air cleaner (outer and inner element)
Fuel System	Indirect injection	In-line injection pump
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Single gear pump with flow divider	Mechanical
Implement Flow	4.17 gpm	7.9 gpm
Steering Flow	2.11 gpm	4.6 gpm
Total Hydraulic Flow	6.3 gpm	12.5 gpm
Overall Hydraulic Pump Flow	6.97 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1 or 2

Fuel Tank Capacity	6.6 gal	7.4 gal
Coolant Capacity	3.7 qt	1.3 gal
Crankcase Capacity	2.1 qt	4.4 qt
Transmission / Hydraulic System Capacity	3.6 gal	8.5 gal
Front Axle Fluid Capacity	2.6 qt	6.9 qt

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,808 lb
Hitch Lift Capacity (at 24”)	679 lb	1,433 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	2 range	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	7.8 mph	HST: 15.3 mph; Gear: 13.8 mph
Max Travel Speed (Reverse)	Not Published	Gear: 13.10 mph; HST: 10.79 mph
Clutch	Dry single plate	Gear: 9.4 in disc; HST: Not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Sub-compact tractor	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	44.5 in	54.1 in
Wheelbase	53.1 in	65.9 in
Ground Clearance	8.3 in	13 in
Min. Turn Radius without Brakes	86.6 in	120 in (left turn); 129.8 in (right turn)
Height to Top of ROPS	86.6 in	88.2 in
Height to Top of ROPS (folded)	Not Published	68.2 in
Height to Top of Cab Model	Not Published	Not Published
Overall Length	94.2 in (with 3-point hitch)	117.2 in

Tractor Weight (Base)	1,433 lb	Gear: 2,434 lb; HST: 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	16x7.50-9	7-14
R1 Agricultural - Rear	24x12.00-12	11.2-24
R3 Turf - Front	16x7.50-8	25x8.50-14
R3 Turf - Rear	26x12.00-12	41x14.00-20
R4 Industrial - Front	18x8.5-10	25x8.50-14
R4 Industrial - Rear	26x12-12	43x16-20

Quick Attach Loader System	Quick attach front loader	200LC: tool-free quick-mount system; optional skid-steer quick-attach plates
Loader Model	BBL100	200LC
Loader Lift Height	78.5 in (at pivot pin)	200LC: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	200LC: 1,600 lb (at bucket pivot pin, max height)
Loader Breakout Force	1,253 lbf	200LC: 2,637 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total

Find a Bad Boy dealer near you Find a New Holland dealer near you

Bad Boy Tractors 1022 vs New Holland Workmaster 25: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on engine hp at 24.4 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on pto hp at 19.2 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on weight at 2,469 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
