Which has more horsepower, the Bad Boy Tractors 3026 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on engine hp at 24.4 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the New Holland Workmaster 25?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 17.3 hp hp for the New Holland Workmaster 25.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.

Bad Boy Tractors 3026 vs New Holland Workmaster 25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland Workmaster 25 leads 5 categories to 3. Machine pages: Bad Boy Tractors 3026 and New Holland Workmaster 25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 3026	New Holland Workmaster 25
Engine HP (hp)	24 hp	▲ 24.4 hp
PTO HP (hp)	▲ 18 hp	17.3 hp
Weight (lb)	1,829.8 lb	—
Loader Lift (lb)	1,314 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	974 lb	▲ 1,433 lb
Lift Height (in)	▲ 86 in	72 in
Breakout Force (lbf)	1,960 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	7.4 gpm	▲ 12.5 gpm
Travel Speed (mph)	▲ 14.8 mph	14.3 mph

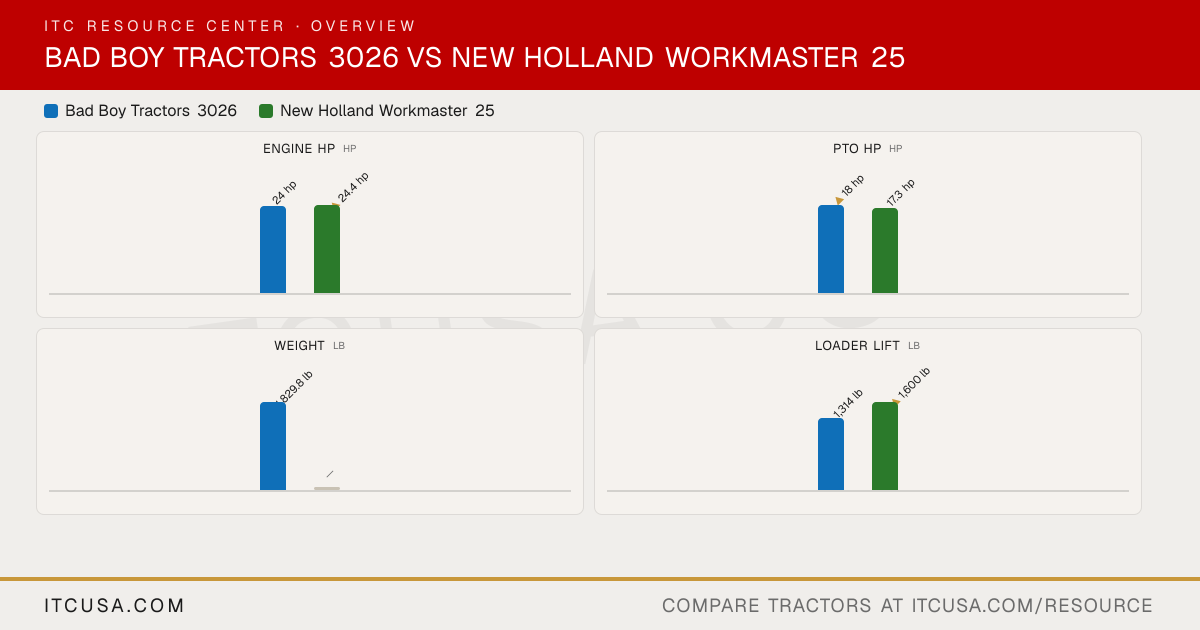

The headline numbers at a glance.

Bad Boy Tractors 3026New Holland Workmaster 25

Engine HPhp

24 hp

▲24.4 hp

PTO HPhp

▲18 hp

17.3 hp

Weightlb

1,829.8 lb

—

Loader Liftlb

1,314 lb

▲1,600 lb

3-Pt Lift (24 in)lb

974 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	New HollandWorkmaster 25


PTO Power	18 hp	17.3 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Dry, Element	Not Published
Engine Type	3 CYL, Water Cooled, Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Diesel	In-line injection pump
Displacement	71.7 in³	80.4 in³
Engine Model	A1100N2	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2500 rpm
Cooling System Type	Water Cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	TYM	Mitsubishi
Engine Power (Gross)	24 hp	24.4 hp
Engine Emissions Constraints	Final Tier4	Tier 4B Final

Tractor Weight (Base)	1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear type pump with primary and secondary pumps	Mechanical
Steering Flow	3.1 gpm	4.6 gpm
Implement Flow	4.3 gpm	7.9 gpm
Total Hydraulic Flow	7.4 gpm 28.0 lpm	12.5 gpm
Hydraulic System Type	Power Assisted Hydro-Static	Open center
System Operating Pressure	352.7 lbf/cm² (max operating pressure)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.7 gal per min	12.5 gpm
No. of Optional Remote Valves	Optional (Up To 1)	1 or 2
No. of Standard Remote Valves	0	0

PTO Rear	540 / 960 rpm @ 2,600 rpm	540 rpm
PTO Type	Live P.T.O. (6 Spline shaft)	Independent, electro-hydraulic engagement
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,433 lbs	1,808 lb
Mid-PTO Availability	Option: 2,500 rpm (Mid)	HST: Standard; Gear: Optional
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	974 lb	1,433 lb

R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	25X8.50-14
Tire Size & Options	IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14X17.5	43X16-20
R4 Industrial - Front	25X8.50-14	25X8.50-14
R1 Agricultural - Rear	11.2-20 8PR	11.2-24
R1 Agricultural - Front	7-16 6PR	7.0-14

Coolant Capacity	1.21 gal	5.2 qt
Crankcase Capacity	0.79 gal	4.4 qt
Fuel Tank Capacity	6.08 gal	7.4 gal
Front Axle Fluid Capacity	0.79 gal	6.9 qt
Transmission / Hydraulic System Capacity	2.90 gal	8.5 gal

Loader Lift Height	86 in.	72 in
Loader Breakout Force	1,960 lbs.	2,637 lb
Quick Attach Loader System	SSQA	200LC: Quick Mount system; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	1,314 lbs.	1,600 lb

Clutch	Dry Single Plate	HST: Not Applicable; Gear: 9.4 in
No. of Speeds	3 Range	HST: 3-range; Gear: 12F/12R
Transmission Type	Hydrostatic (HST)	HST: 3-range hydrostatic; Gear: 12x12 mechanical shuttle
Max Travel Speed (Forward)	14.8 mph	HST: 14.33 mph; Gear: 13.78 mph
Max Travel Speed (Reverse)	14.8 mph	HST: 10.79 mph; Gear: 13.10 mph
Differential Lock & Limited Slip Options	Differential Lock	Mechanical rear differential lock

Brakes	Wet, Multi-Disc	Wet disc
Steering	Hydrostatic	Power steering
Frame Type	Steel frame with cast iron axles	Not Published
Front Axle Type	4 Wheel Drive	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat; flips up and back for rear backhoe operation	Not Published

Wheelbase	65.7"	65.9 in
Overall Width	53.8"	54.1 in
Overall Length	120.7 in for 2024H, 122.9 in for 3026H	—
Ground Clearance	16.4"	13 in
Height to Top of ROPS	91.4"	88.2 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	91.4 in - ROPS up (no folded dimension found in available sources)	68.2 in
Min. Turn Radius without Brakes	46°	120 in
Overall Length with 3-Point Hitch	110 in	131 in
