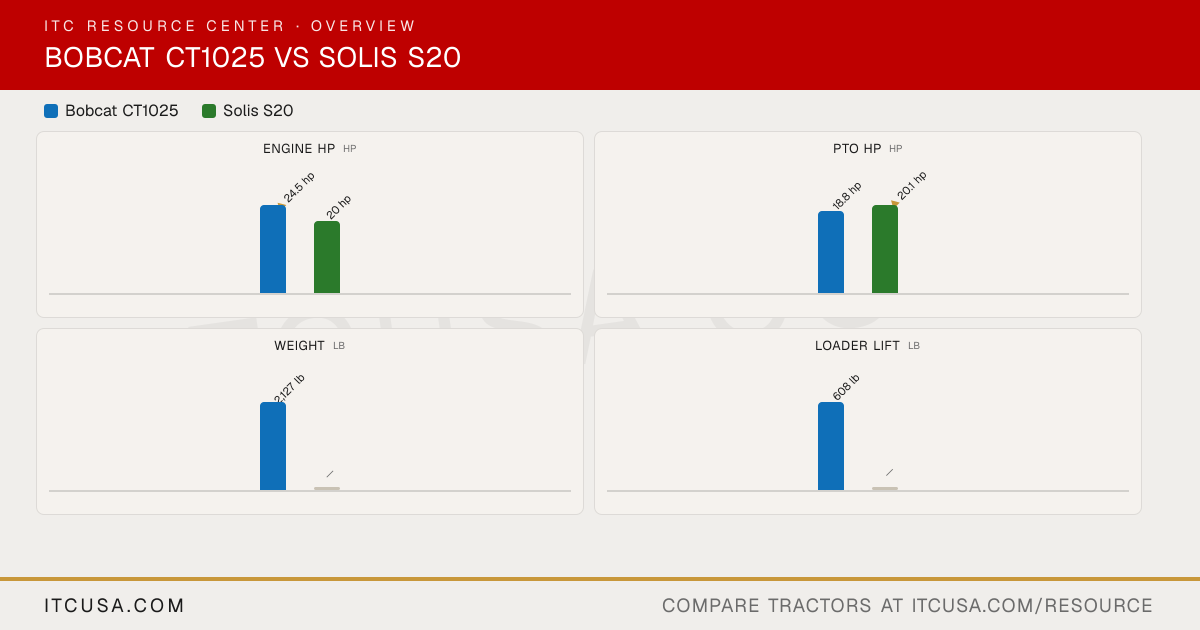

Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT1025
SolisS20
PTO Power
18.8 hp
20.1 hp
Alternator
alternator
42 A, 12 V
Air Cleaner
Dry type, replaceable
n/a
Engine Type
Diesel
Mitsubishi 3 Cylinder
Fuel System
Diesel, Common Rail Direct Injection (CRDI)
n/a
Displacement
69.01 in³
58.1 in³
Engine Model
Shibaura 0.3 gal 3-cyl diesel
Mitsubishi MVL - 3E
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
2700
Cooling System Type
water cooled
Water Cooled
Engine Manufacturer
Shibaura
Mitsubishi
Engine Power (Gross)
24.5 hp
20 hp
Engine Emissions Constraints
Tier 4
Stage V
Weight with ROPS and Loader
2,127 LB Approximate Operating Weight
n/a
Weight with Cab and Loader
1652.00 KG
n/a
Warranty Length & Coverage
24 months or 1,500 hours (whichever occurs first)
n/a
Pump Type
Gear
n/a
Steering Flow
16.90
n/a
Implement Flow
26.00
n/a
Total Hydraulic Flow
6.5 gpm
13.3 LPM
Hydraulic System Type
Open Center
n/a
Rear Remote Hydraulic Flow
NOT FOUND
n/a
Overall Hydraulic Pump Flow
7.2 gpm
n/a
No. of Optional Remote Valves
1 Pair
n/a
No. of Standard Remote Valves
Std. (4 port)
n/a
PTO Rear
540 rpm
n/a
PTO Type
Independent
Mechanical
Lift Control Type
Hydraulic Position Control System
n/a
Hitch Lift Capacity
700 lb.
n/a
Mid-PTO Availability
Standard: 2200 rpm
n/a
Category, 3-Point Hitch
Category 1 Limited
n/a
Hitch Lift Capacity (at 24”)
700 lb
n/a
R3 Turf - Rear
41x14.0-20 R3
33x15.5-16.5
R3 Turf - Front
27x8.5-15 R3
23x8.50-12
Tire Size & Options
Agricultural, Turf, Industrial
n/a
R4 Industrial - Rear
15-19.5 R4
33x15.5-16.5
R4 Industrial - Front
25x8.5-14 R4
23x8.50-12
R1 Agricultural - Rear
26x12.00-12
8.00 - 18
R1 Agricultural - Front
18x8.5-10
5.00 - 12
Coolant Capacity
0.9 gal
n/a
Crankcase Capacity
2 gal
n/a
Fuel Tank Capacity
7.1 gal.
n/a
Front Axle Fluid Capacity
1.6 gal
n/a
Transmission / Hydraulic System Capacity
5.8 gal
n/a
Loader Model
FL6
n/a
Loader Lift Height
71.9 in.
n/a
Loader Breakout Force
1554 lb.
n/a
Quick Attach Loader System
Standard Quick Attach Mounting System
n/a
Loader Lift Capacity (Full Height)
608 lb.
n/a
Clutch
Clutch-free (hydrostatic)
Single Clutch
No. of Speeds
2-Range
6F+2R
Transmission Type
Hydrostatic
Sliding Mesh
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
15.26 Km/Hr @ 2700
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
n/a
Differential Lock & Limited Slip Options
Std
Yes, Foot Operated
Brakes
Wet Multi-disc
Dry Drum Brakes
Steering
Hydrostatic Power Steering
Power Steering
Frame Type
4x4 MFWD 4WD
n/a
Front Axle Type
MFWD
4WD
Drawbar Capacity
650.00 KG
n/a
Front Axle Rating
Manual(MEC)
n/a
Seat Suspension & Adjustability
Std
n/a
Wheelbase
55.1 in.
55.9 in
Overall Width
46.0 in.
n/a
Ground Clearance
6.3 in.
7.9 in
Height to Top of ROPS
87.56 in
75.8 in
Height to Top of Cab Model
Not Published
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
