Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT1025
SolisS24 Shuttle XL
PTO Power
18.8 hp
Not Published
Alternator
alternator
Not Published
Air Cleaner
Dry type, replaceable
Not Published
Engine Type
Diesel
Natural Aspiration
Fuel System
Diesel, Common Rail Direct Injection (CRDI)
Not Published
Displacement
69.01 in³
80.4 in³
Engine Model
Shibaura 0.3 gal 3-cyl diesel
—
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
2500 rpm
Cooling System Type
water cooled
Not Published
Engine Manufacturer
Shibaura
Mitsubishi
Engine Power (Gross)
24.5 hp
24 hp
Engine Emissions Constraints
Tier 4
Not Published
Weight with ROPS and Loader
2,127 LB Approximate Operating Weight
Not Published
Weight with Cab and Loader
1652.00 KG
Not Applicable
Warranty Length & Coverage
24 months or 1,500 hours (whichever occurs first)
3-year warranty; 7-year limited powertrain
Pump Type
Gear
Not Published
Steering Flow
16.90
Not Published
Implement Flow
26.00
Not Published
Total Hydraulic Flow
6.5 gpm
6.5 gpm
Hydraulic System Type
Open Center
Not Published
Rear Remote Hydraulic Flow
NOT FOUND
Not Published
Overall Hydraulic Pump Flow
7.2 gpm
Not Published
No. of Optional Remote Valves
1 Pair
Not Published
No. of Standard Remote Valves
Std. (4 port)
1
PTO Rear
540 rpm
540/540E rpm
PTO Type
Independent
Mechanical
Lift Control Type
Hydraulic Position Control System
Not Published
Hitch Lift Capacity
700 lb.
1,323 lb
Mid-PTO Availability
Standard: 2200 rpm
Not Published
Category, 3-Point Hitch
Category 1 Limited
CAT-1N
Hitch Lift Capacity (at 24”)
700 lb
Not Published
R3 Turf - Rear
41x14.0-20 R3
33x15.5-16.5; 13.6x16
R3 Turf - Front
27x8.5-15 R3
23x8.50-12; 25x8.50-14
Tire Size & Options
Agricultural, Turf, Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
15-19.5 R4
33x15.5-16.5
R4 Industrial - Front
25x8.5-14 R4
23x8.50-12
R1 Agricultural - Rear
26x12.00-12
8.3x20; 8.3x24; 280/70 R18
R1 Agricultural - Front
18x8.5-10
6x12; 7x14; 6.5/80-12
Coolant Capacity
0.9 gal
Not Published
Crankcase Capacity
2 gal
Not Published
Fuel Tank Capacity
7.1 gal.
5.8 gal
Front Axle Fluid Capacity
1.6 gal
Not Published
Transmission / Hydraulic System Capacity
5.8 gal
Not Published
Loader Model
FL6
—
Loader Lift Height
71.9 in.
85 in
Loader Breakout Force
1554 lb.
1,146 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
XB24 (MSL)
Loader Lift Capacity (Full Height)
608 lb.
1,411 lb
Clutch
Clutch-free (hydrostatic)
Not Published
No. of Speeds
2-Range
9F+9R
Transmission Type
Hydrostatic
Constant Mesh with Synchromesh Shuttle transmission
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
Not Published
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
Not Published
Differential Lock & Limited Slip Options
Std
NOT FOUND — differential lock existence confirmed by user reviews but no spec-sheet value (type, actuation method) explicitly tied to S24 Shuttle XL in any reviewed source
Brakes
Wet Multi-disc
Oil immersed brakes; mechanical, foot operated
Steering
Hydrostatic Power Steering
Power steering
Frame Type
4x4 MFWD 4WD
Not Published
Front Axle Type
MFWD
4WD
Drawbar Capacity
650.00 KG
Not Published
Front Axle Rating
Manual(MEC)
Not Published
Seat Suspension & Adjustability
Std
Not Published
Wheelbase
55.1 in.
61.8 in
Overall Width
46.0 in.
47.83 in
Ground Clearance
6.3 in.
9.44 in
Height to Top of ROPS
87.56 in
91.53 in
Height to Top of Cab Model
Not Published
Not Applicable
Height to Top of ROPS (folded)
2520.00 MM
Not Published
Min. Turn Radius without Brakes
8.3 ft. (2.54 m)
Not Published
Overall Length with 3-Point Hitch
99.3 in.
113.98 in
Bobcat CT1025 vs Solis S24 Shuttle XL: Quick Answers

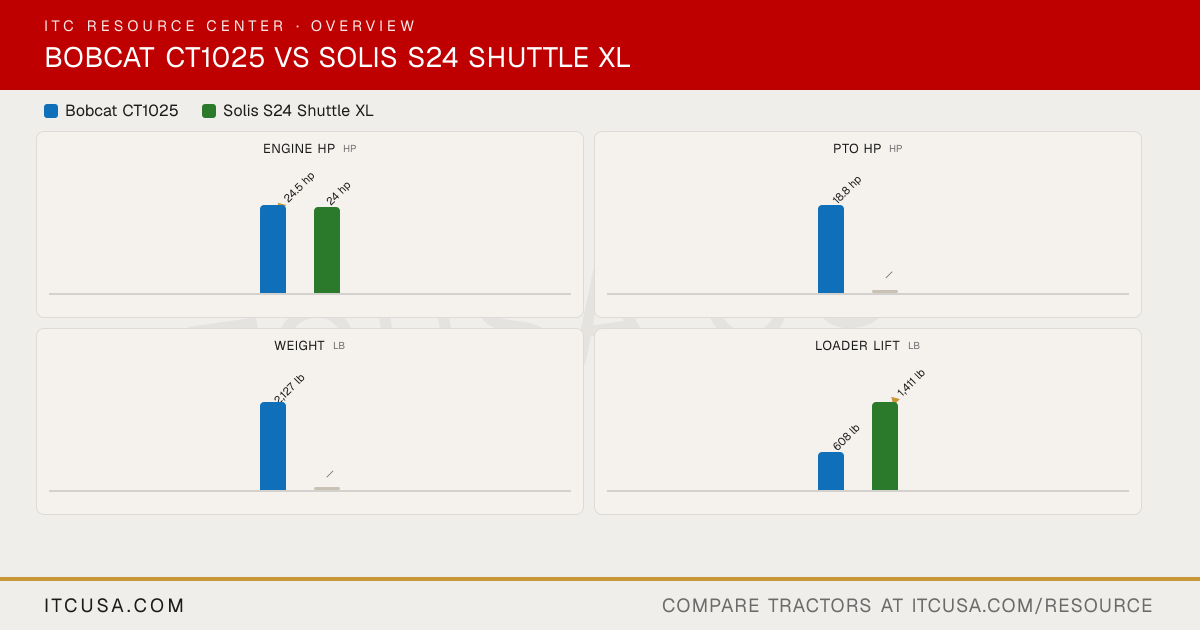

Which has more horsepower, the Bobcat CT1025 or the Solis S24 Shuttle XL?
The Bobcat CT1025 leads on engine hp at 24.5 hp hp, compared to 24 hp hp for the Solis S24 Shuttle XL.
Which has more loader lift capacity, the Bobcat CT1025 or the Solis S24 Shuttle XL?
The Solis S24 Shuttle XL leads on loader lift at 1,411 lb lb, compared to 608 lb lb for the Bobcat CT1025.
Which has more three-point hitch lift capacity, the Bobcat CT1025 or the Solis S24 Shuttle XL?
The Solis S24 Shuttle XL leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 700 lb lb for the Bobcat CT1025.
