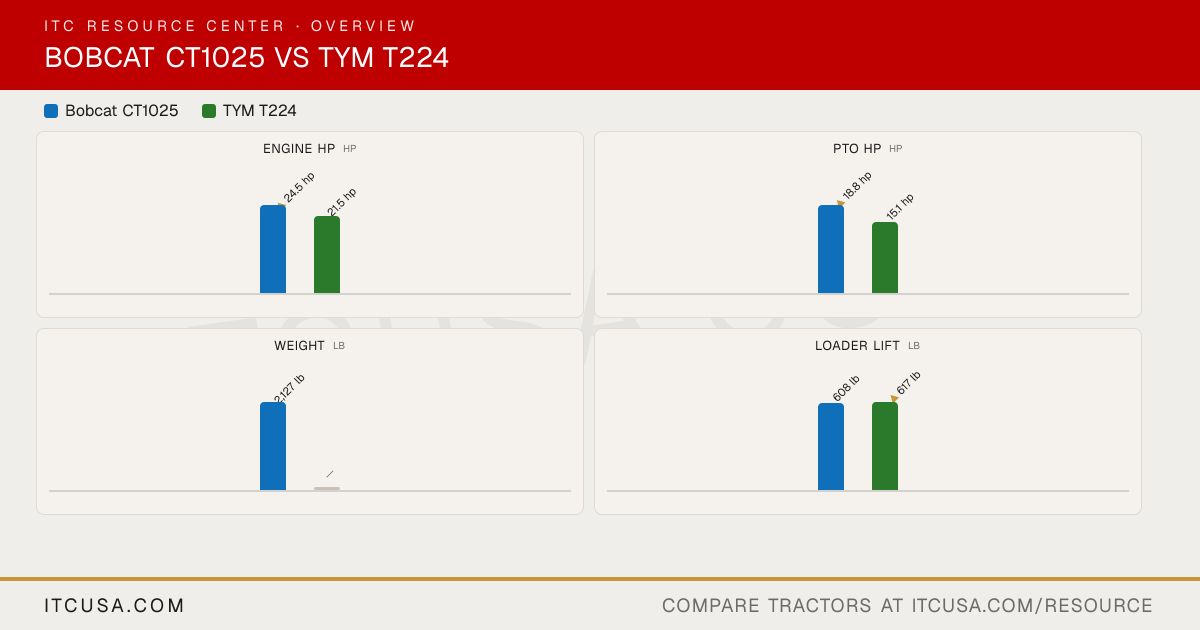

Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT1025
TYMT224
PTO Power
18.8 hp
15.1 hp
Alternator
alternator
40 A, 12 V
Air Cleaner
Dry type, replaceable
Single dry
Engine Type
Diesel
3-cylinder, naturally aspirated diesel
Fuel System
Diesel, Common Rail Direct Injection (CRDI)
IDI
Displacement
69.01 in³
60.6 in³
Engine Model
Shibaura 0.3 gal 3-cyl diesel
—
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
3200 rpm
Cooling System Type
water cooled
Water-cooled
Engine Manufacturer
Shibaura
Yanmar
Engine Power (Gross)
24.5 hp
21.5 hp
Engine Emissions Constraints
Tier 4
Tier 4
Weight with ROPS and Loader
2,127 LB Approximate Operating Weight
Not Published
Weight with Cab and Loader
1652.00 KG
Not Published
Warranty Length & Coverage
24 months or 1,500 hours (whichever occurs first)
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Gear
Single gear pump
Steering Flow
16.90
2.1 gpm
Implement Flow
26.00
4.6 gpm
Total Hydraulic Flow
6.5 gpm
6.7 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
NOT FOUND
Not Published
Overall Hydraulic Pump Flow
7.2 gpm
6.7 gpm
No. of Optional Remote Valves
1 Pair
1
No. of Standard Remote Valves
Std. (4 port)
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Hydraulic Position Control System
Position control
Hitch Lift Capacity
700 lb.
1,100 lb
Mid-PTO Availability
Standard: 2200 rpm
Available
Category, 3-Point Hitch
Category 1 Limited
Category I (Narrow)
Hitch Lift Capacity (at 24”)
700 lb
679 lb
R3 Turf - Rear
41x14.0-20 R3
Turf Master 24x12.00-12 NHS TL 4PR
R3 Turf - Front
27x8.5-15 R3
Turf Master 16x7.50-8 NHS TL 4PR
Tire Size & Options
Agricultural, Turf, Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
15-19.5 R4
WT300 26x12.00-12 NHS TL 4PR
R4 Industrial - Front
25x8.5-14 R4
WT300 18x8.5-10 NHS TL 4PR
R1 Agricultural - Rear
26x12.00-12
BAR R 24x12.00-12
R1 Agricultural - Front
18x8.5-10
BAR F 16x6.50-8
Coolant Capacity
0.9 gal
3.7 qt
Crankcase Capacity
2 gal
1.9 qt
Fuel Tank Capacity
7.1 gal.
6.6 gal
Front Axle Fluid Capacity
1.6 gal
2.6 qt
Transmission / Hydraulic System Capacity
5.8 gal
3.6 gal
Loader Model
FL6
—
Loader Lift Height
71.9 in.
71.3 in
Loader Breakout Force
1554 lb.
1,235 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
TX22H: Quick attach mechanism
Loader Lift Capacity (Full Height)
608 lb.
617 lb
Clutch
Clutch-free (hydrostatic)
Not applicable
No. of Speeds
2-Range
Infinite 2-Range
Transmission Type
Hydrostatic
HST
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
8.4 mph
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
Not Published
Differential Lock & Limited Slip Options
Std
Differential lock
Brakes
Wet Multi-disc
Wet disc
Steering
Hydrostatic Power Steering
Hydrostatic
Frame Type
4x4 MFWD 4WD
Not Published
Front Axle Type
MFWD
Not Published
Drawbar Capacity
650.00 KG
Not Published
Front Axle Rating
Manual(MEC)
Not Published
Seat Suspension & Adjustability
Std
Not Published
Wheelbase
55.1 in.
53.1 in
Overall Width
46.0 in.
44.5 in
Ground Clearance
6.3 in.
8.3 in
Height to Top of ROPS
87.56 in
86.6 in
Height to Top of Cab Model
Not Published
Not Published
Height to Top of ROPS (folded)
2520.00 MM
Not Published
Min. Turn Radius without Brakes
8.3 ft. (2.54 m)
86.6 in
Overall Length with 3-Point Hitch
99.3 in.
94.2 in
Bobcat CT1025 vs TYM T224: Quick Answers
Which has more horsepower, the Bobcat CT1025 or the TYM T224?
The Bobcat CT1025 leads on engine hp at 24.5 hp hp, compared to 21.5 hp hp for the TYM T224.
Which has more PTO horsepower, the Bobcat CT1025 or the TYM T224?
The Bobcat CT1025 leads on pto hp at 18.8 hp hp, compared to 15.1 hp hp for the TYM T224.
Which has more loader lift capacity, the Bobcat CT1025 or the TYM T224?
The TYM T224 leads on loader lift at 617 lb lb, compared to 608 lb lb for the Bobcat CT1025.
Which has more three-point hitch lift capacity, the Bobcat CT1025 or the TYM T224?
The Bobcat CT1025 leads on 3-pt lift (24 in) at 700 lb lb, compared to 679 lb lb for the TYM T224.
