Bobcat CT4055 vs Mahindra 5155 Shuttle

Across 9 measurable specs, the Mahindra 5155 Shuttle leads 6 categories to 2 (1 tied). Machine pages: Bobcat CT4055 and Mahindra 5155 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

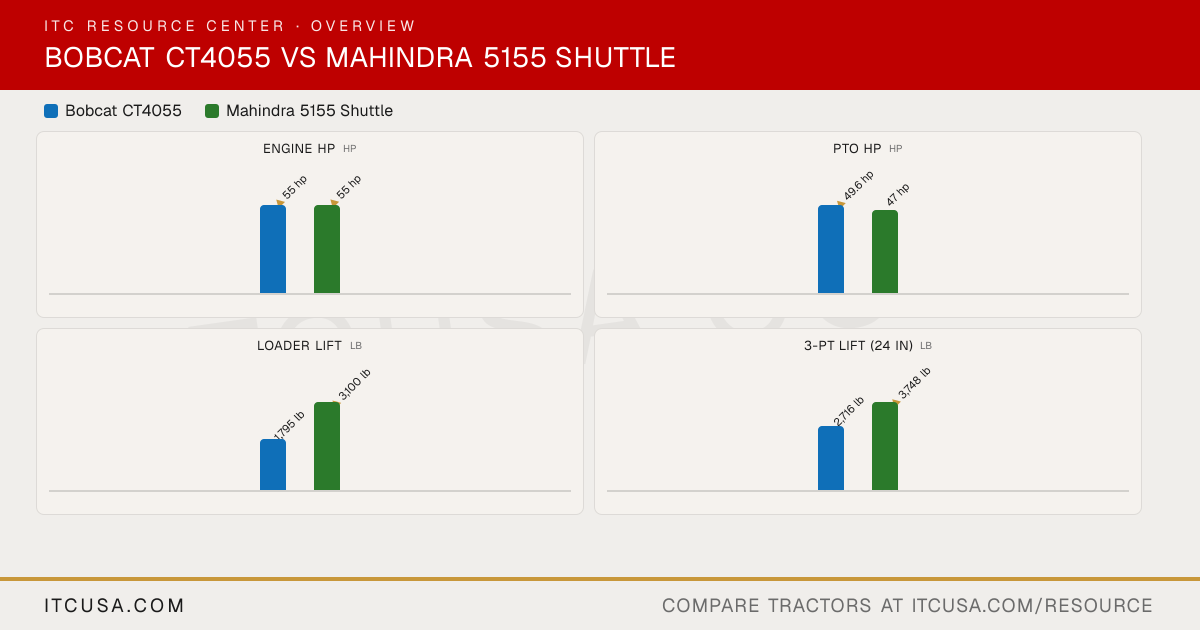

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT4055	Mahindra5155 Shuttle

▶Engine
Engine Manufacturer	Daedong	Mahindra
Engine Model	3FT	DH55
Engine Type	Turbocharged diesel	Four-stroke, turbocharged, direct injection, water cooled diesel
No. of Cylinders	3	4
Displacement	111.4 in³	166.2 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	55 hp	55 hp
PTO Power	49.6 hp	47 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Direct injection
Alternator	Not Published	55 A
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	9.62 gpm	8.71 gpm
Steering Flow	4.94 gpm	4.62 gpm
Total Hydraulic Flow	14.1 gpm	13.3 gpm
Overall Hydraulic Pump Flow	14.1 gpm	13.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard; 2 pairs optional	1
No. of Optional Remote Valves	2 pairs	1
▶Fluid Capacity
Fuel Tank Capacity	11.9 gal	17.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	CAT I & II with telescopic stabilizers & flex links
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	2716 lb	3748 lb
Lift Control Type	Hydraulic position control	Position control
▶Transmission & Drivetrain
Transmission Type	8F x 8R synchro shuttle (SST)	Full synchromesh with forward/reverse synchro shuttle & constant mesh range
No. of Speeds	8 forward, 8 reverse	12F / 12R
Max Travel Speed (Forward)	17.5 mph	17.9 mph
Max Travel Speed (Reverse)	17.1 mph	Not Published
Clutch	Not Published	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Rear differential lock, standard	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering with tilt steering wheel
Brakes	Wet multi-disc	Fully-enclosed, 7-in diameter, dry disc
Seat Suspension & Adjustability	Adjustable seat (standard)	Adjustable seat with contoured cushions, armrests and a soft-coil suspension
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	125.5 in	136.6 in
Overall Width	69.8 in	74.8 in
Wheelbase	71.2 in	77.9 in
Ground Clearance	15.3 in	16.4 in
Min. Turn Radius without Brakes	103.5 in (with brake applied)	10.8 ft
Height to Top of ROPS	97.4 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	n/a (open-station ROPS model)	Not Published
▶Weight
Tractor Weight (Base)	3745 lb	5390 lb
Weight with ROPS and Loader	Not Published	6,690 lb
Weight with Cab and Loader	n/a (open-station ROPS model)	Not Published
▶Tire Options
Tire Size & Options	Agricultural (R1), Turf (R3), Industrial (R4)	R1 Agricultural or R4 Industrial
R1 Agricultural - Front	8-16	9.5 x 20
R1 Agricultural - Rear	13.6-24	14.9 x 28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	10.5/80 x 18
R4 Industrial - Rear	Not Published	16.9 x 24
▶Loader & Attachments
Quick Attach Loader System	Standard quick attach mounting system	Skid-steer style quick-attach coupler
Loader Model	FL9	5155-4L (front loader); 65B (rear backhoe)
Loader Lift Height	FL9: 103.2 in	5155-4L: 122 in
Loader Lift Capacity (Full Height)	1795 lb	5155-4L: 3,100 lb
Loader Breakout Force	4136 lb	5155-4L: 5,200 lb
▶Warranty
Warranty Length & Coverage	24 months or 1,500 hours, whichever occurs first (defects in material and workmanship)	5-year limited powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Find a dealer near you→Find a Mahindra dealer near you→

Bobcat CT4055 vs Mahindra 5155 Shuttle: Quick Answers

Which has more horsepower, the Bobcat CT4055 or the Mahindra 5155 Shuttle?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Bobcat CT4055 or the Mahindra 5155 Shuttle?

The Bobcat CT4055 leads on pto hp at 49.6 hp hp, compared to 47 hp hp for the Mahindra 5155 Shuttle.

Which is heavier, the Bobcat CT4055 or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on weight at 5,390 lb lb, compared to 3,745 lb lb for the Bobcat CT4055.

Which has more loader lift capacity, the Bobcat CT4055 or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 1,795 lb lb for the Bobcat CT4055.

Which has more three-point hitch lift capacity, the Bobcat CT4055 or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,716 lb lb for the Bobcat CT4055.
